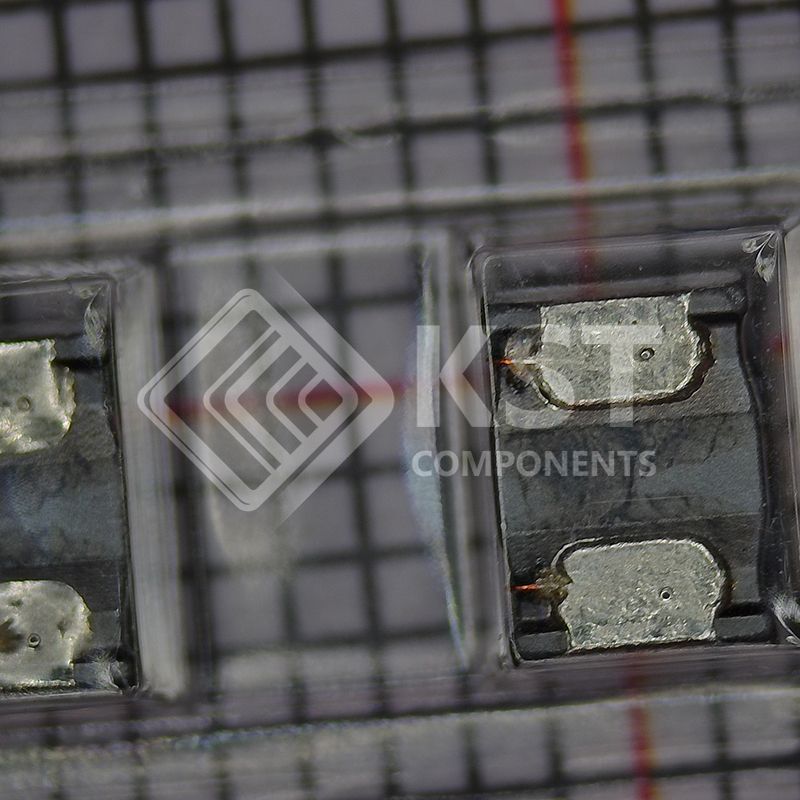

LQH43CN470K03L
Part Number:
LQH43CN470K03L
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Battery Store
Description:
47 µH Unshielded Drum Core, Wirewound Inductor 280 mA 1.1Ohm Max 1812 (4532 Metric)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | Murata Electronics |
| Series | LQH43 |

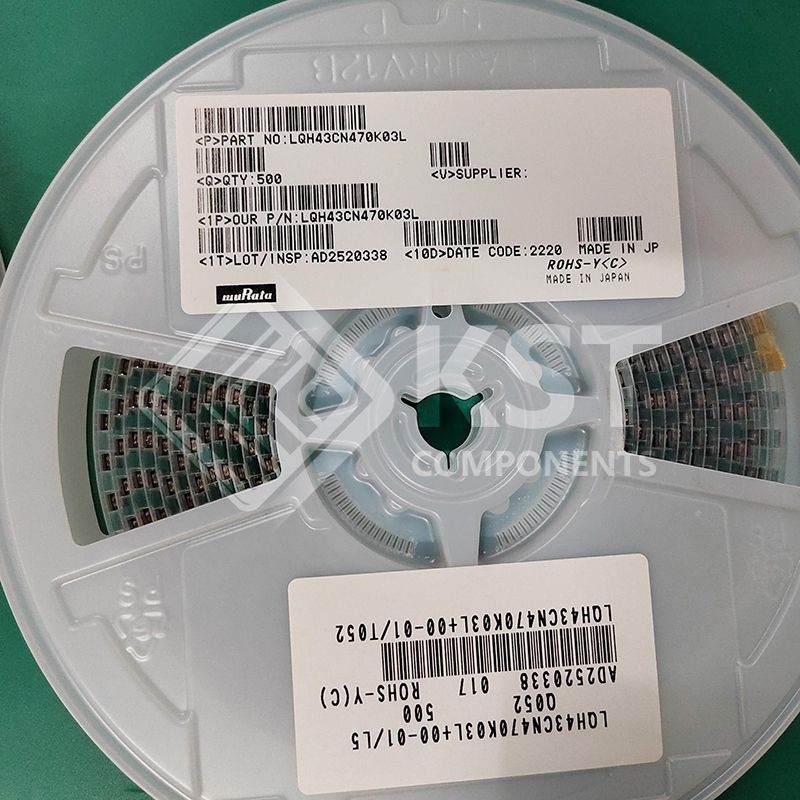

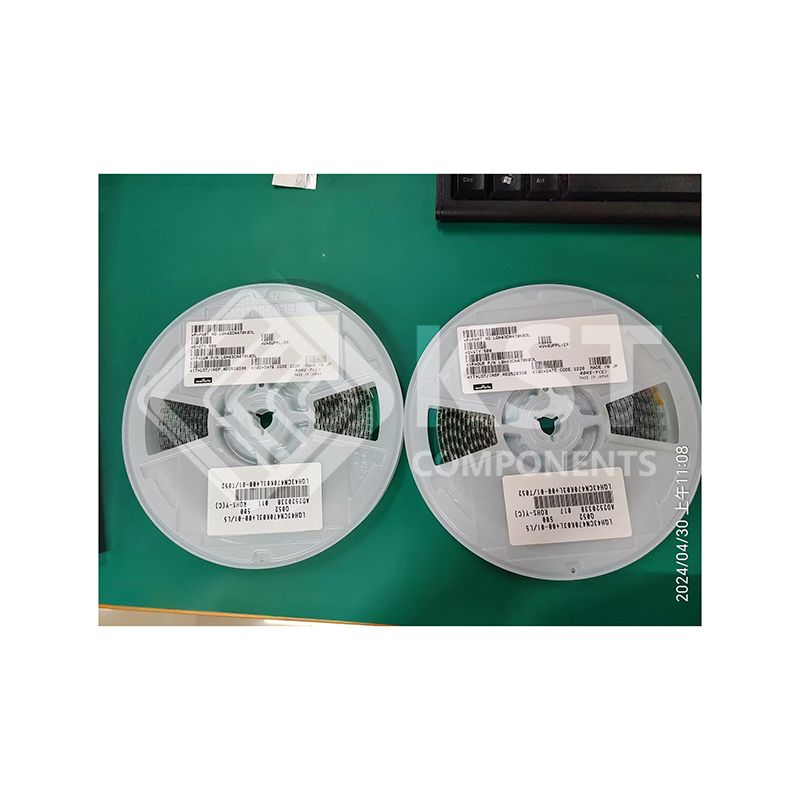

| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Base Product Number | LQH43CN |
