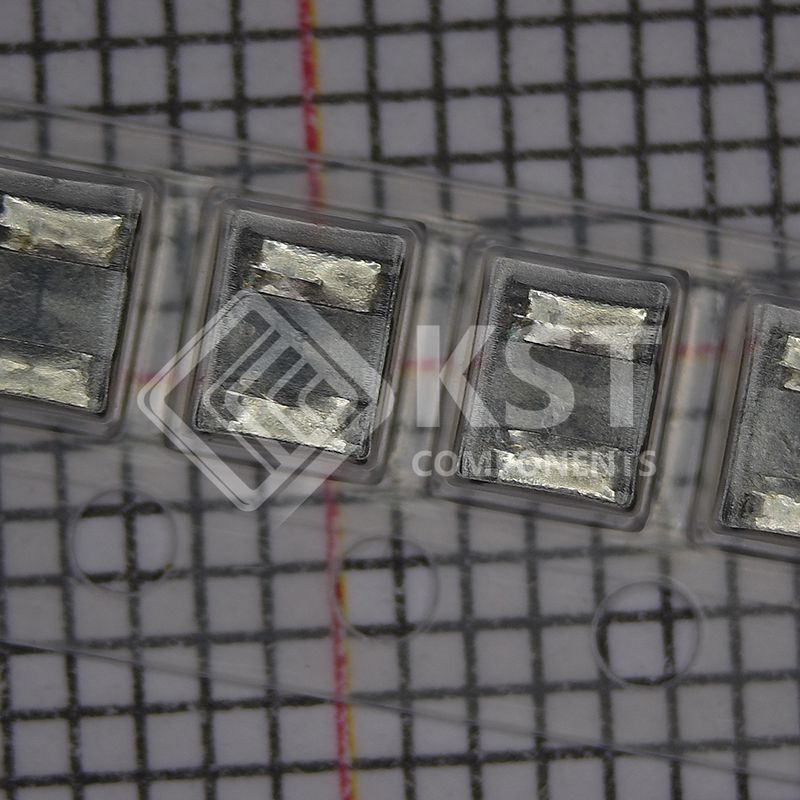

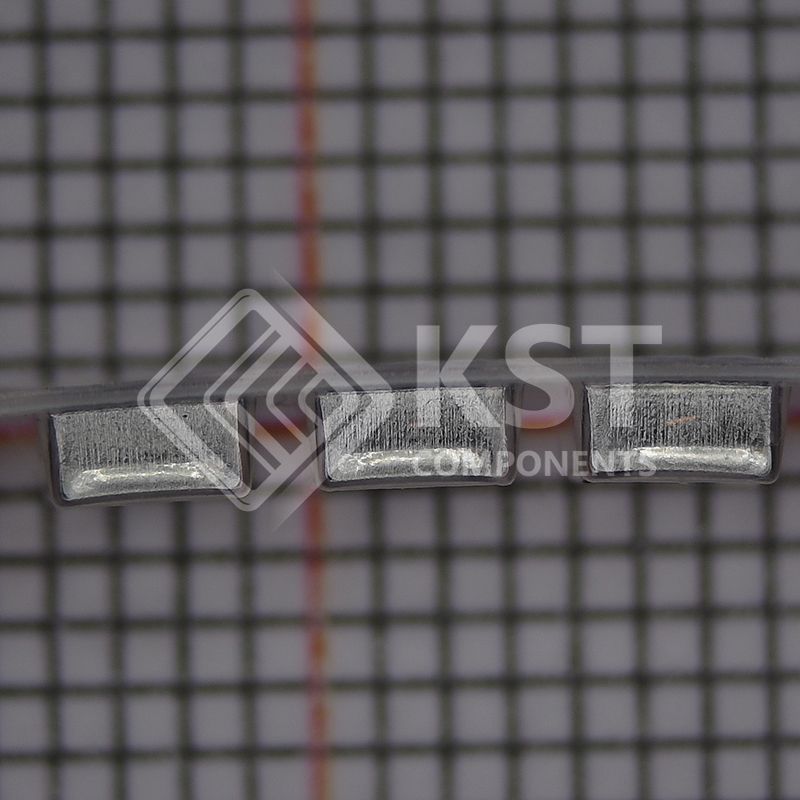

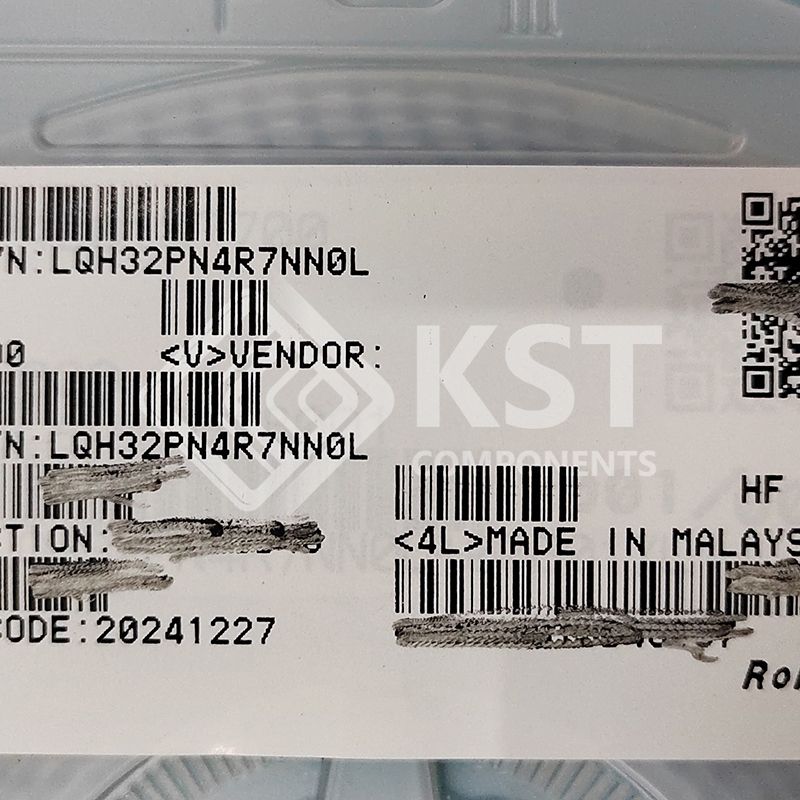

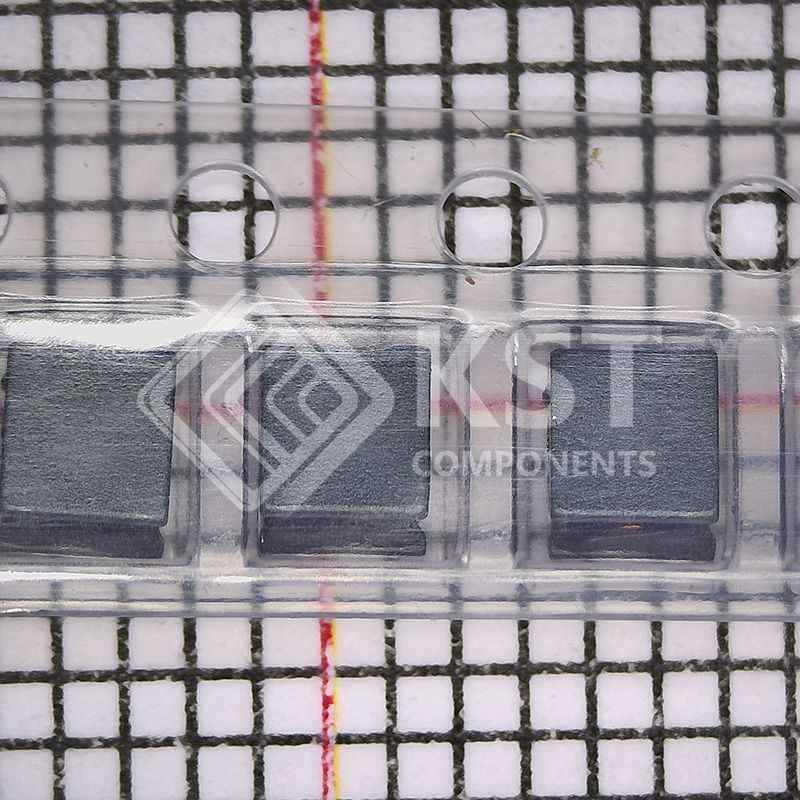

LQH32PN4R7NN0L
Part Number:
LQH32PN4R7NN0L
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 4.7UH 1A 180 MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQH32 |
|
|

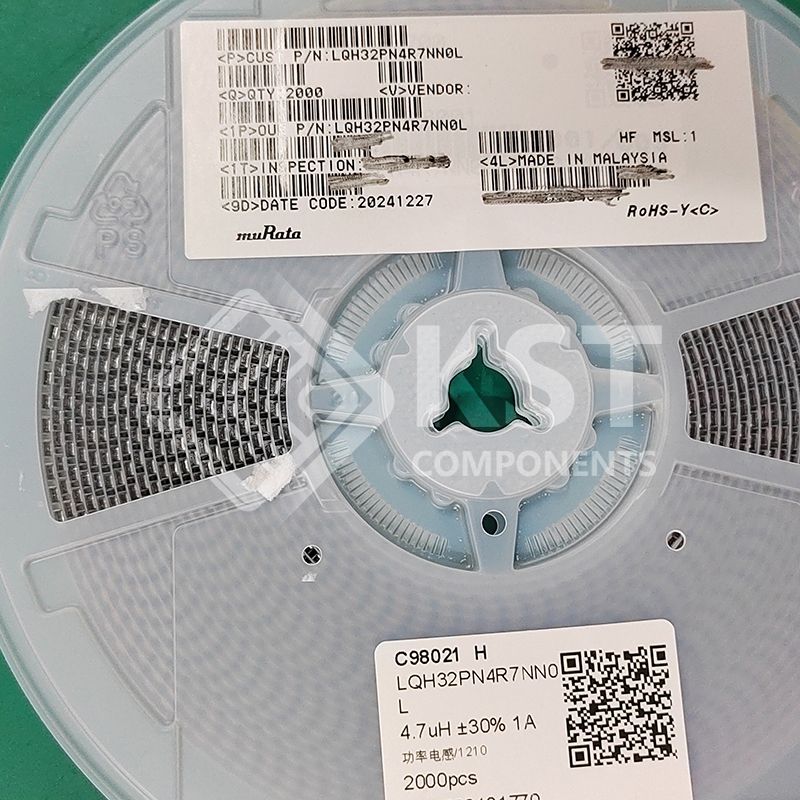

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
4.7 µH
|
|
|
Tolerance |
±30%
|
|
|
Current Rating (Amps) |
1 A |
|
|
Current - Saturation (Isat) |
1A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
180mOhm
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
40MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Inductance Frequency - Test |
1 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
1210 (3225 Metric)
|
|
|
Size / Dimension |
0.126" L x 0.098" W (3.20mm x 2.50mm)
|
|
|
Height - Seated (Max) |
0.067" (1.70mm)
|
|
|
Base Product Number |
LQH32PN |
