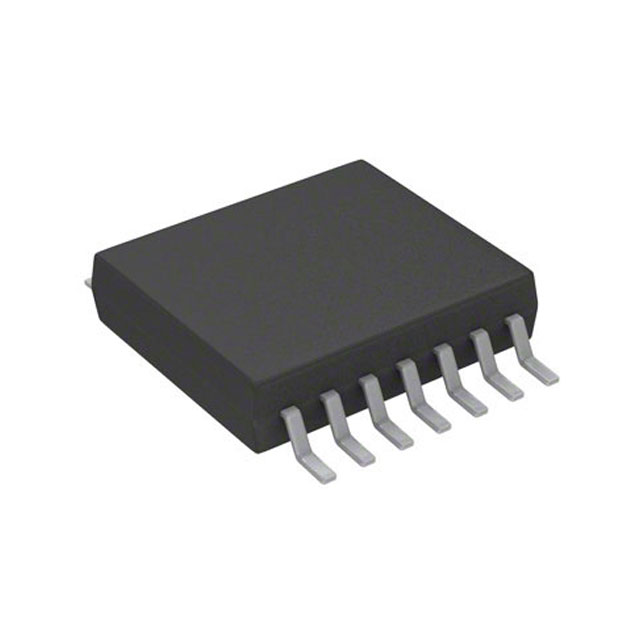

LM5156HPWPR
Part Number:
LM5156HPWPR
Product Classification:
Bipolar RF Transistors
Manufacturer:
3PEAK
Description:
2.2MHZ WIDE INPUT NONSYNCHRONOUS
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Up, Step-Up/Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Boost, Flyback, SEPIC
|
|
|
Number of Outputs |
1
|
|
|
Output Phases |
1
|
|
|
Voltage - Supply (Vcc/Vdd) |
2.97V ~ 60V
|
|
|
Frequency - Switching |
100kHz ~ 2.2MHz
|
|
|
Duty Cycle (Max) |
93%
|
|
|
Synchronous Rectifier |
No
|
|
|
Clock Sync |
No
|
|
|
Serial Interfaces |
-
|
|
|
Control Features |
Current Limit, Enable, Frequency Control, Power Good, Soft Start
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
14-PowerTSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
14-HTSSOP
|
|
|
Base Product Number |
LM5156 |
|
