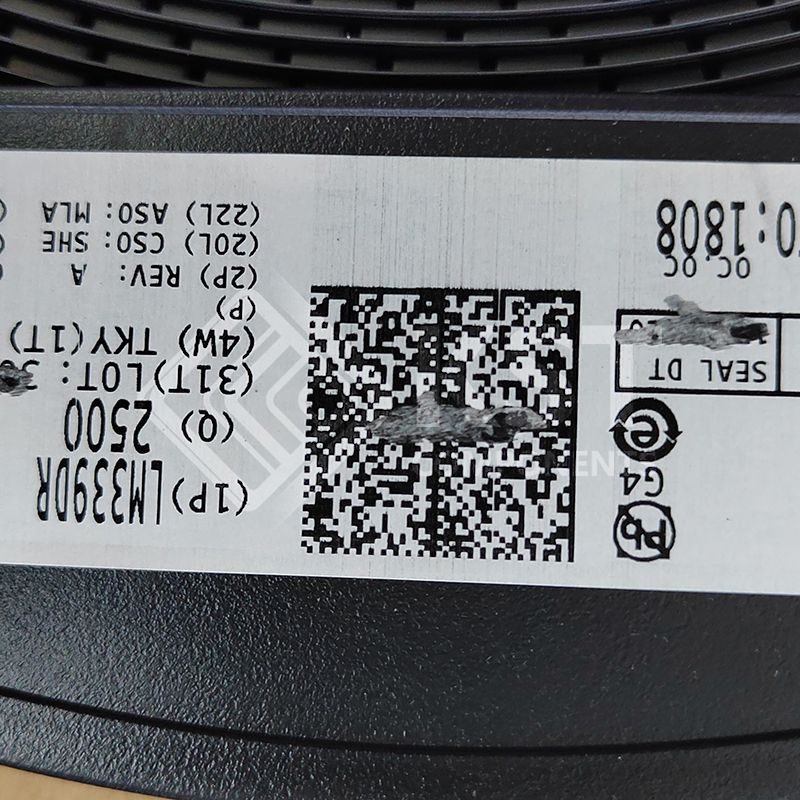

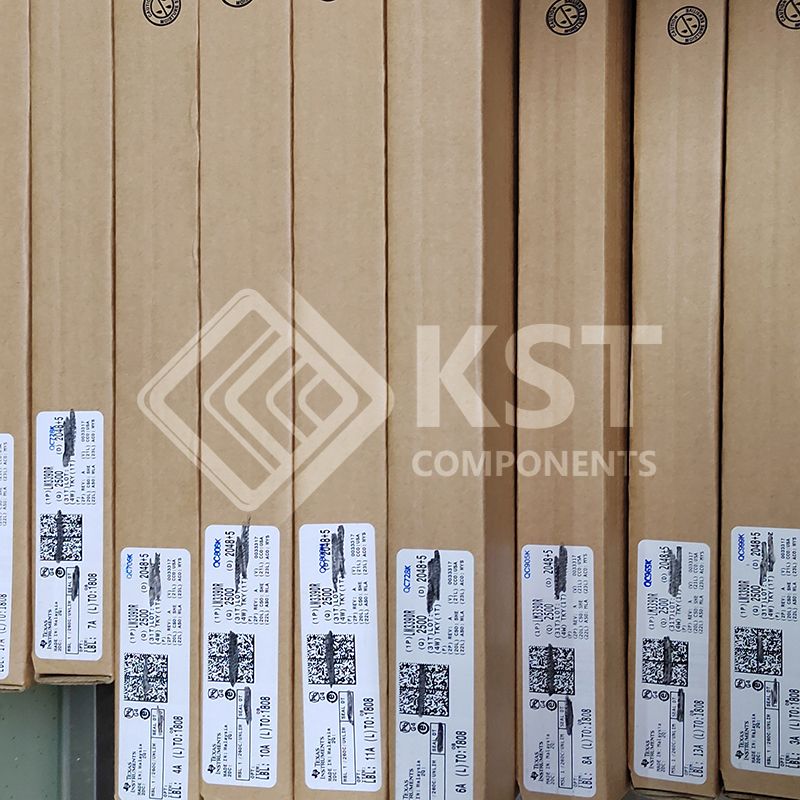

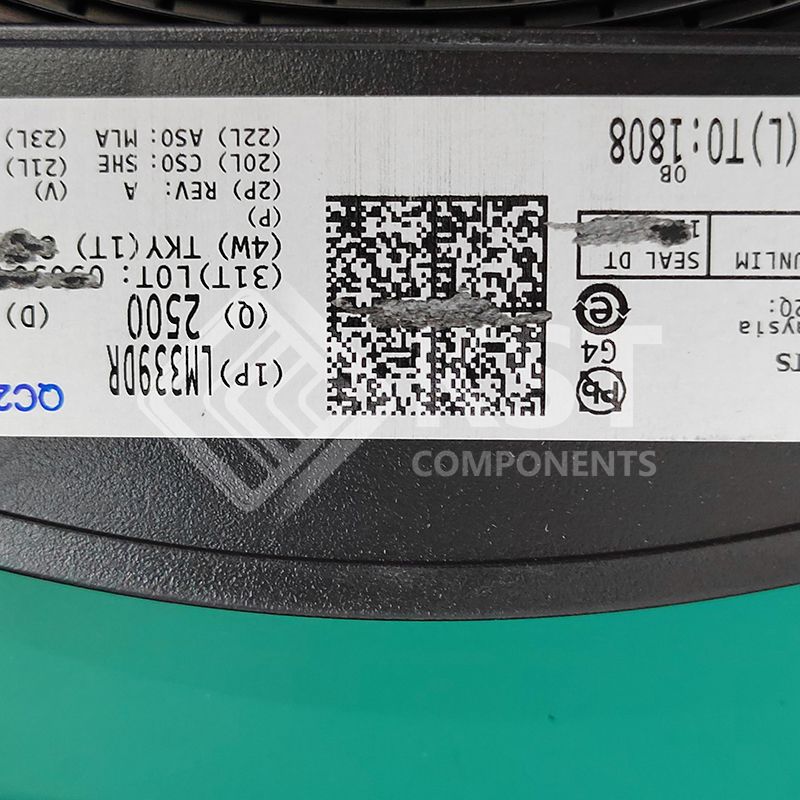

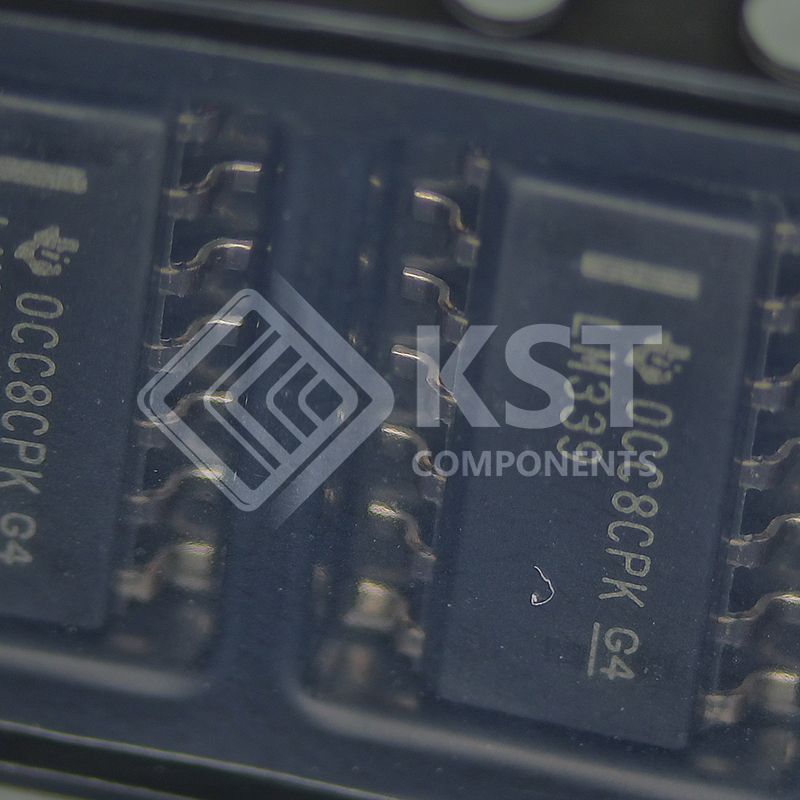

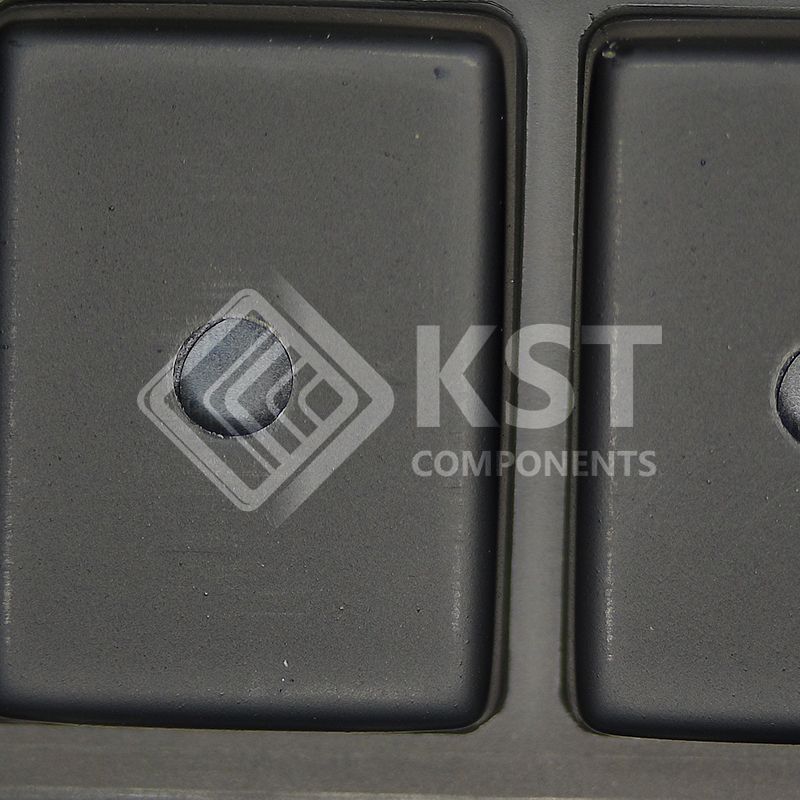

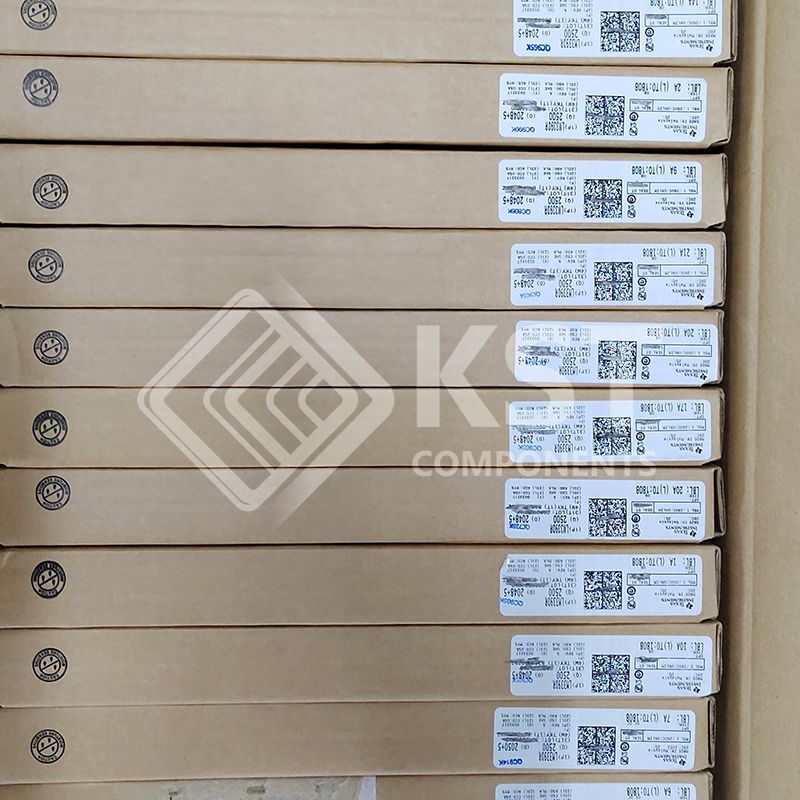

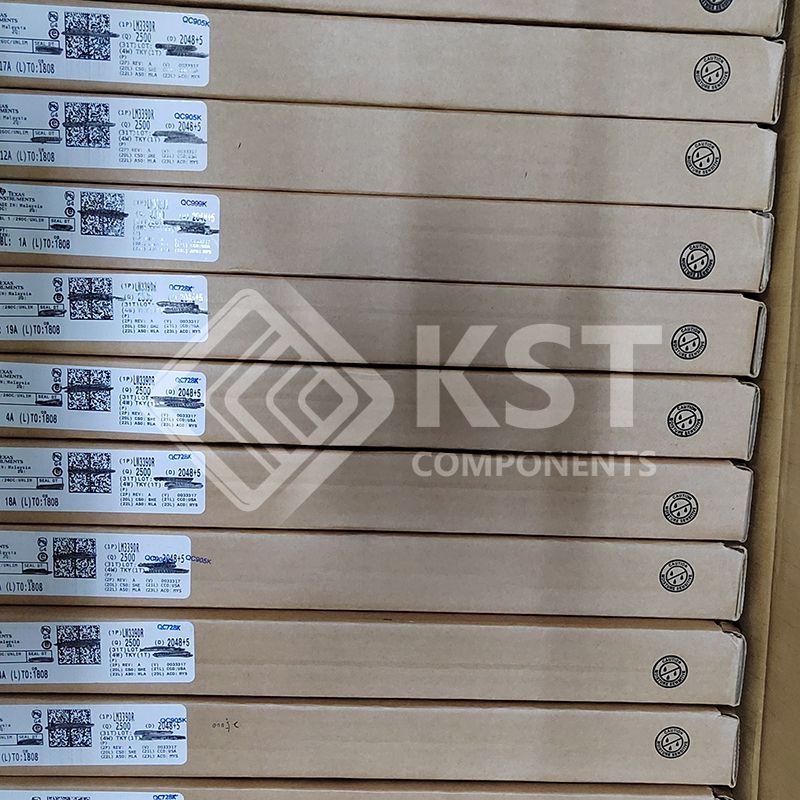

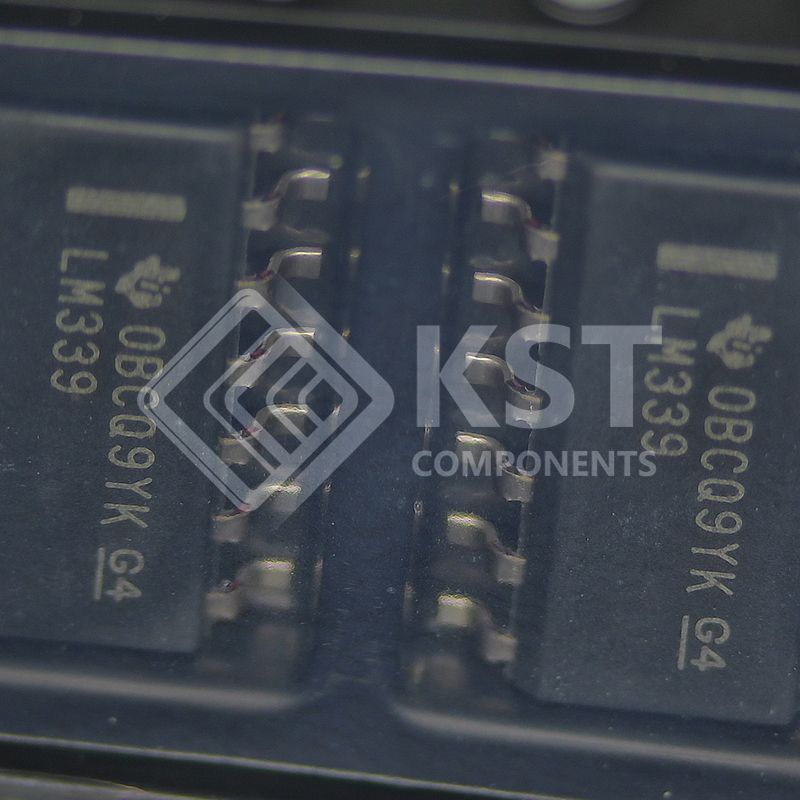

LM339DR
Part Number:
LM339DR
Product Classification:
Adhesives, Epoxies, Greases, Pastes
Manufacturer:
3PEAK
Description:
IC COMPARATOR 4 DIFF 14SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Linear
Comparators
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
General Purpose
|
|
|
Number of Elements |
4
|
|
|
Output Type |
Open-Collector
|
|
|
Voltage - Supply, Single/Dual (±) |
2V ~ 30V, ±1V ~ 15V
|
|
|
Voltage - Input Offset (Max) |
5mV @ 30V
|
|
|
Current - Input Bias (Max) |
0.25µA @ 5V
|
|
|
Current - Output (Typ) |
20mA
|
|
|
Current - Quiescent (Max) |
2.5mA
|
|
|
CMRR, PSRR (Typ) |
-
|
|
|
Propagation Delay (Max) |
-
|
|
|
Hysteresis |
-
|
|
|
Operating Temperature |
0°C ~ 70°C
|
|
|
Package / Case |
14-SOIC (0.154", 3.90mm Width)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
14-SOIC
|
|
|
Base Product Number |
LM339 |
