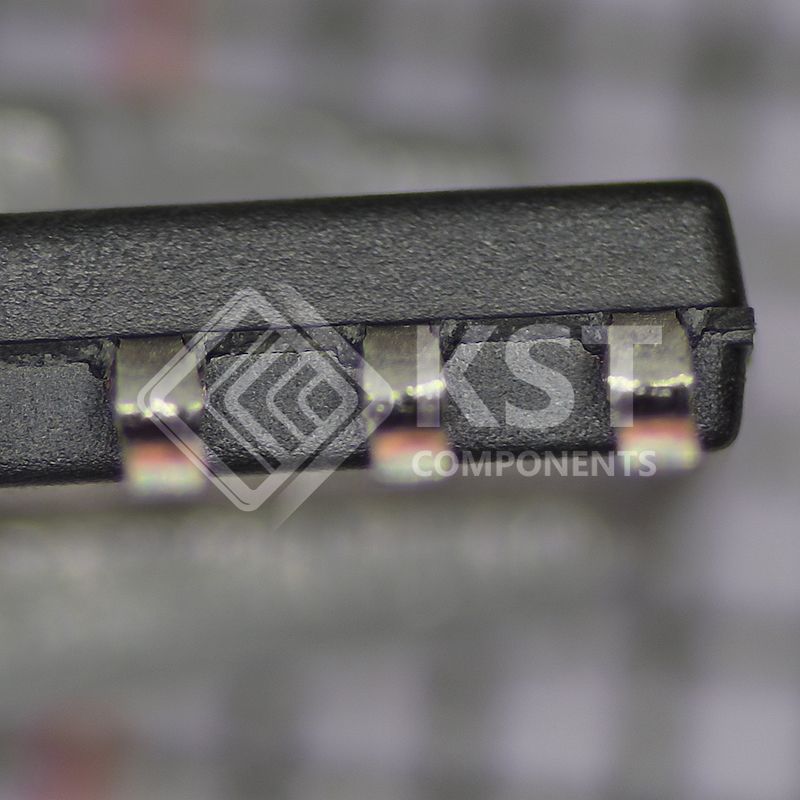

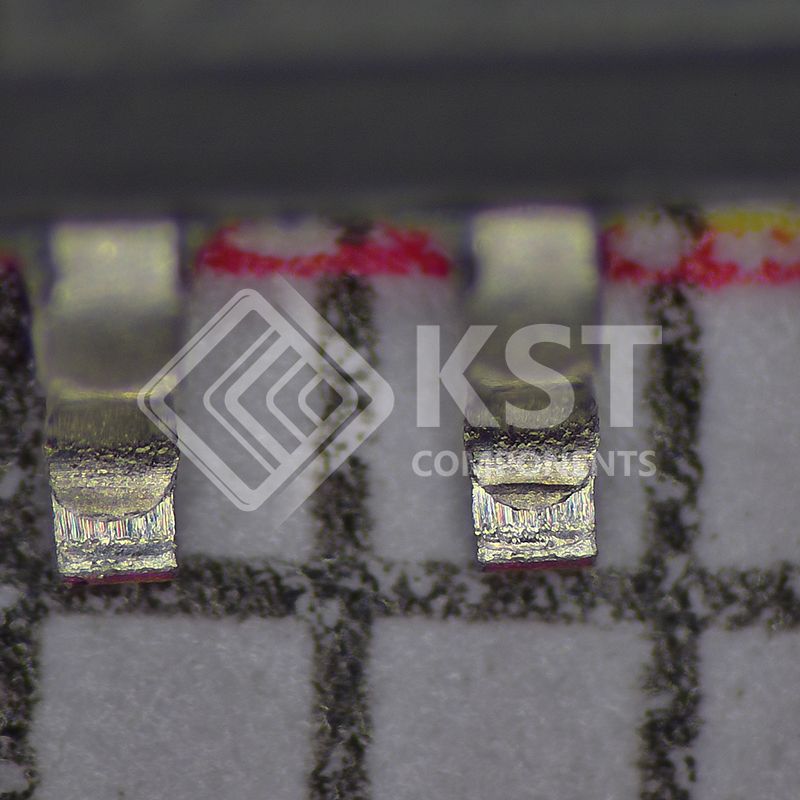

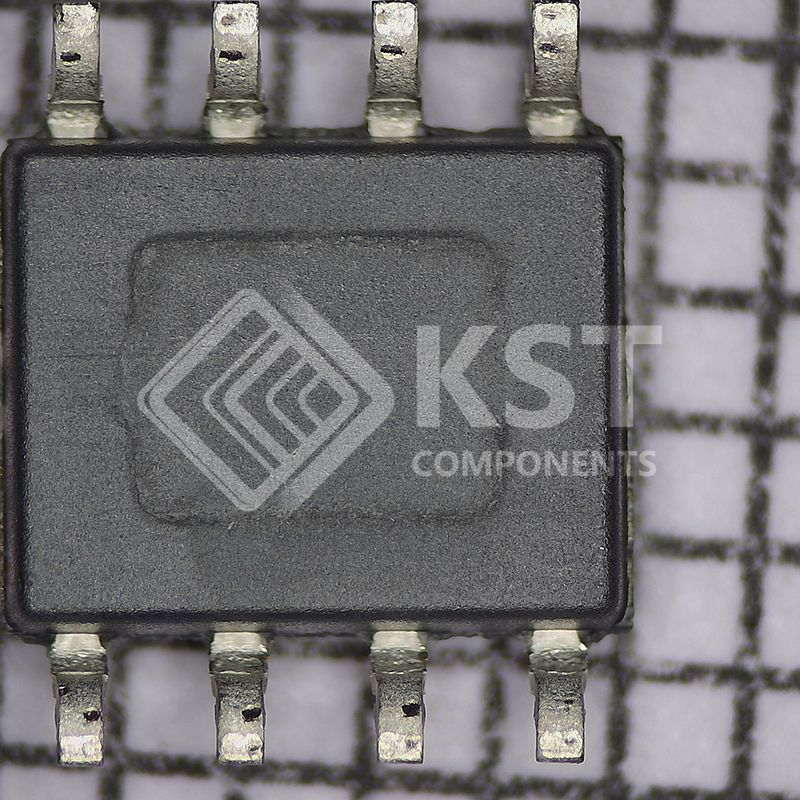

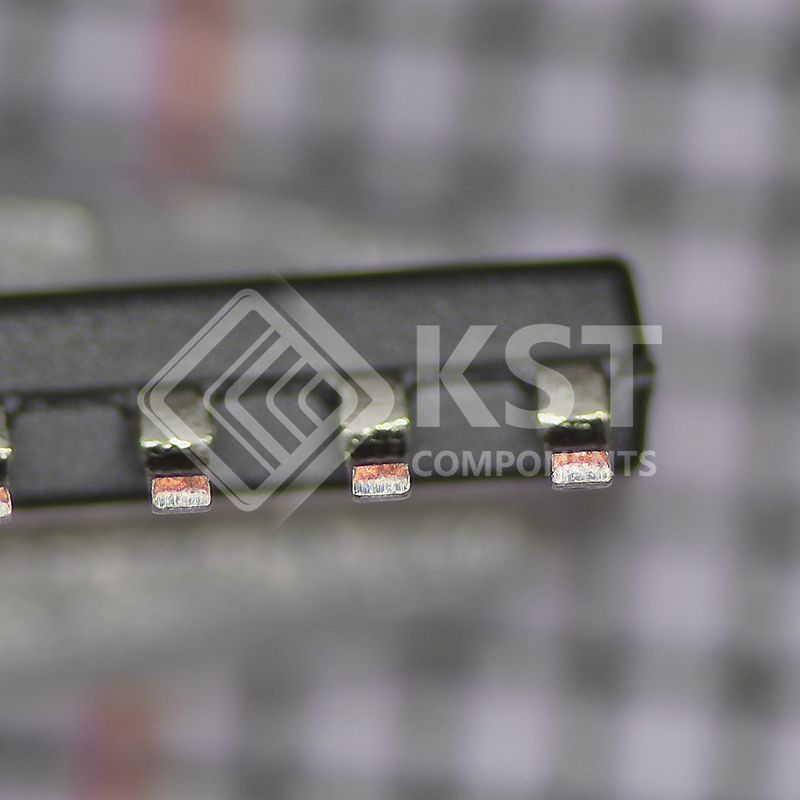

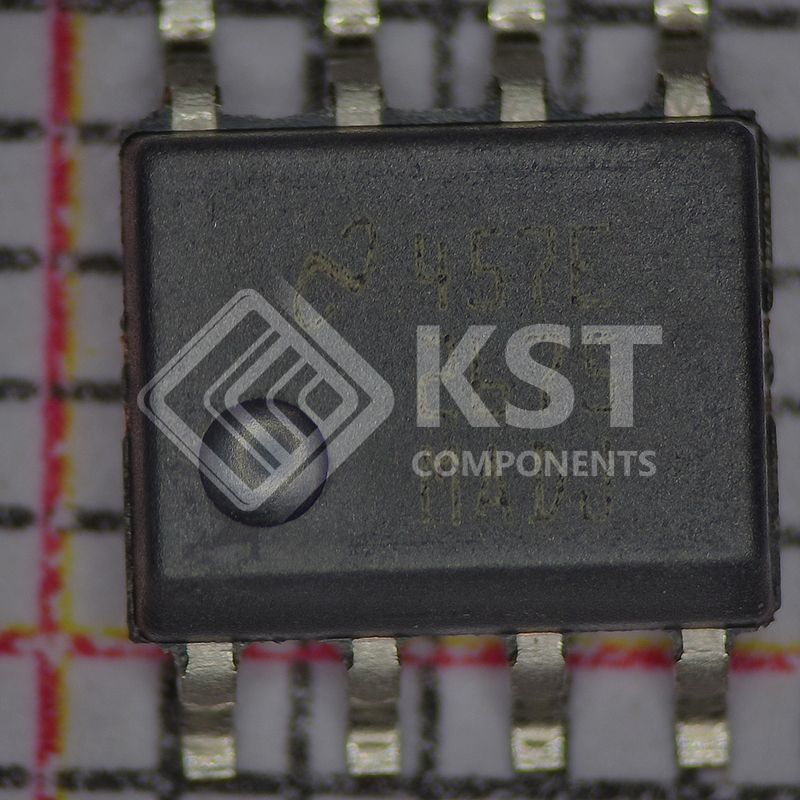

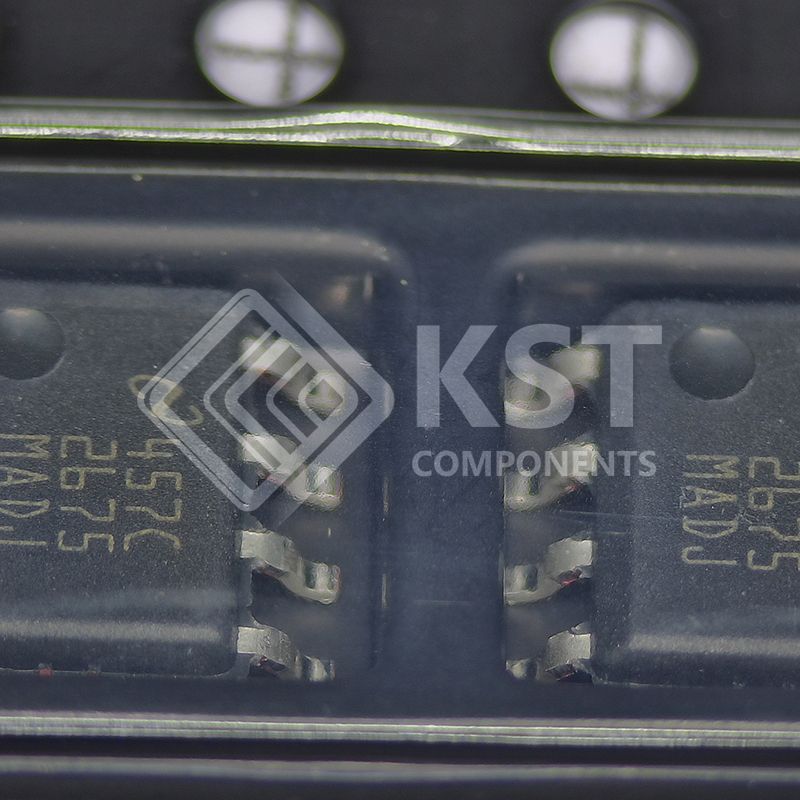

LM2675MX-ADJ NOPB
Part Number:
LM2675MX-ADJ NOPB
Product Classification:
Keylock Switches
Manufacturer:
3PEAK
Description:
IC REG BUCK ADJ 1A 8SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
SIMPLE SWITCHER® |
|
|
Packaging |

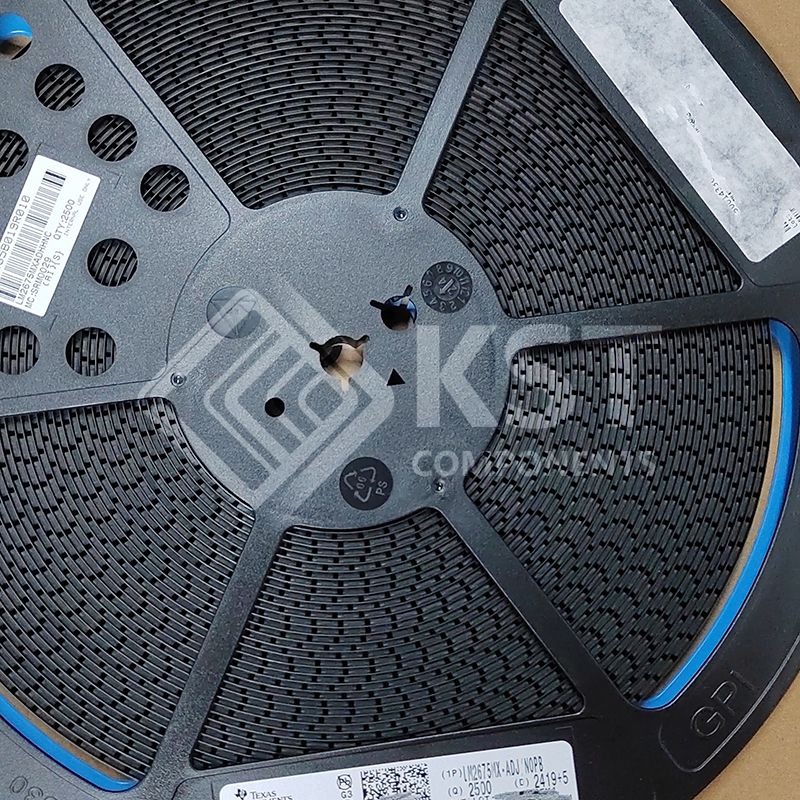

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck |
|
|
Output Type |
Adjustable |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
6.5V
|
|
|
Voltage - Input (Max) |
40V
|
|
|
Voltage - Output (Min/Fixed) |
1.21V |
|
|
Voltage - Output (Max) |
37V
|
|
|
Current - Output |
1A |
|
|
Frequency - Switching |
260kHz
|
|
|
Synchronous Rectifier |
No
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
|
Supplier Device Package |
8-SOIC
|
|
|
Base Product Number |
LM2675 |
