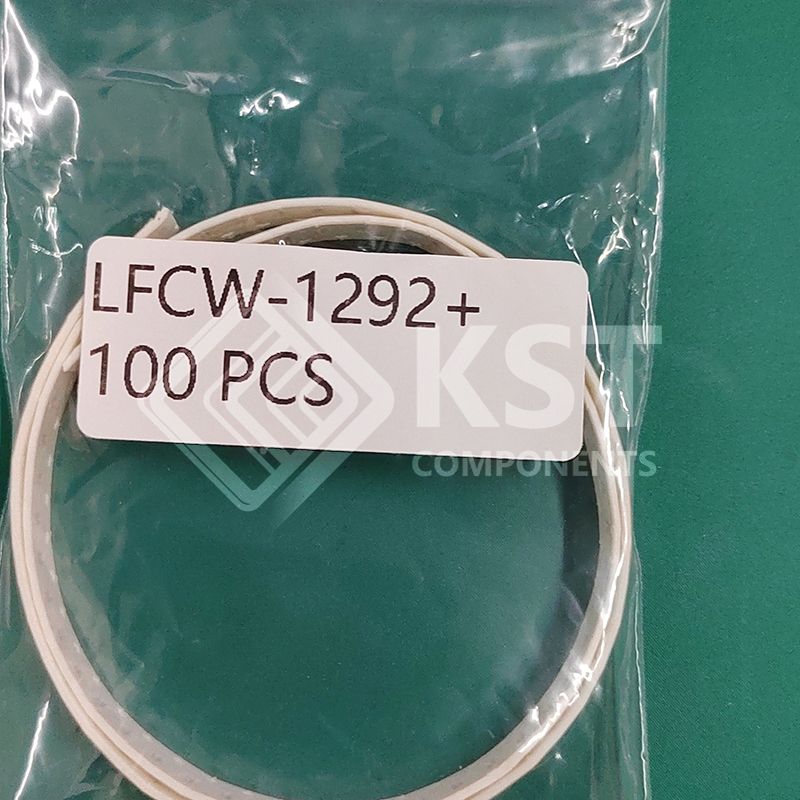

LFCW-1292+
Part Number:
LFCW-1292+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
RF FILTER LOW PASS 13.9GHZ 0603
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
RF Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
LFCW |
|
|
Packaging |

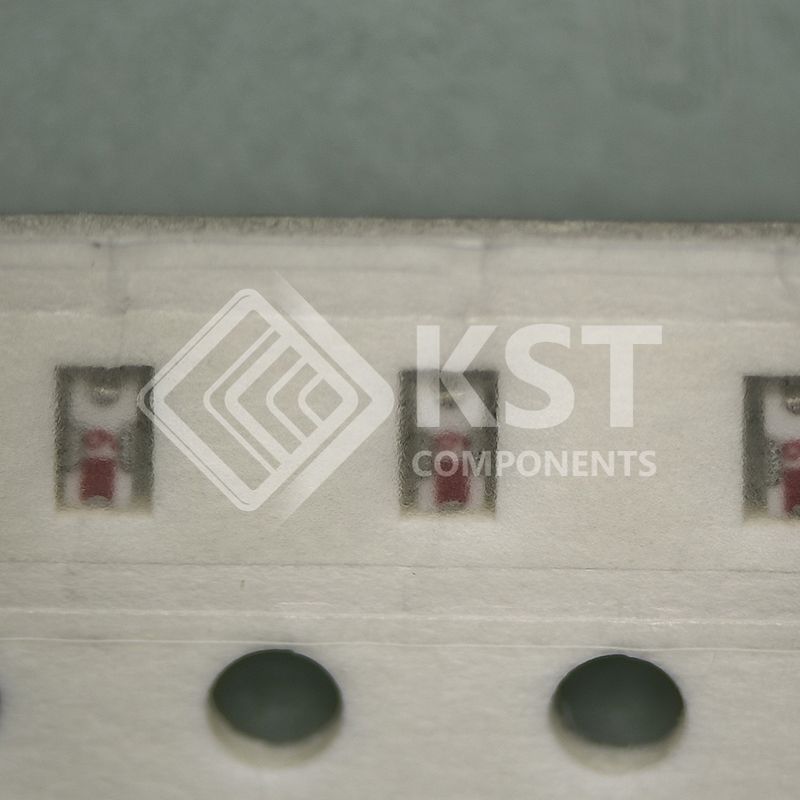

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
13.9GHz (Cutoff)
|
|
|
Bandwidth |
-
|
|
|
Filter Type |
Low Pass
|
|
|
Ripple |
-
|
|
|
Insertion Loss |
2.2dB
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0603 (1608 Metric), 4 PC Pad
|
|
|
Size / Dimension |
0.063" L x 0.031" W (1.60mm x 0.80mm)
|
|
|
Height (Max) |
0.028" (0.70mm)
|
