IR2156STRPBF
Part Number:
IR2156STRPBF
Product Classification:
Switching Converter, SMPS Transformers
Manufacturer:
AIC tech
Description:

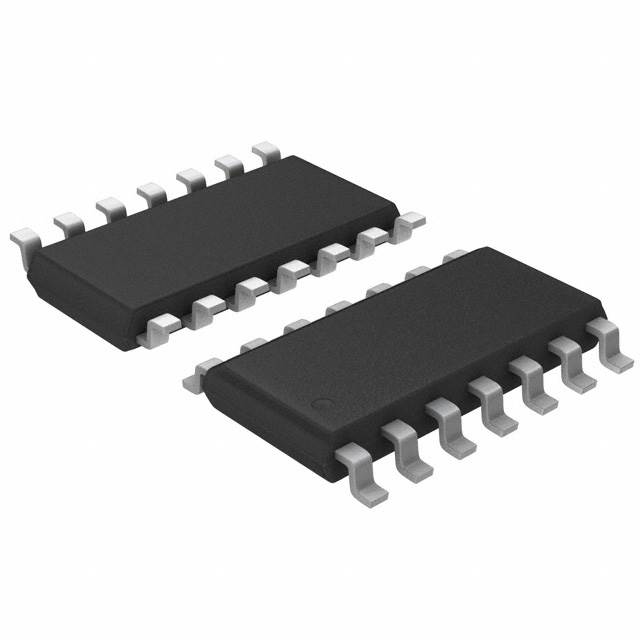

Ballast Controller Controller 36kHz ~ 44kHz No 14-SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
Ballast control and half bridge driver in one IC
Programmable preheat frequency
Programmable preheat time
Internal ignition ramp
Programmable over-current threshold
Programmable run frequency
Programmable dead time
DC bus under-voltage reset
Shutdown pin with hysteresis
Internal 15.6V zener clamp diode on Vcc
Micropower startup (150 µA)
Latch immunity and ESD protection
