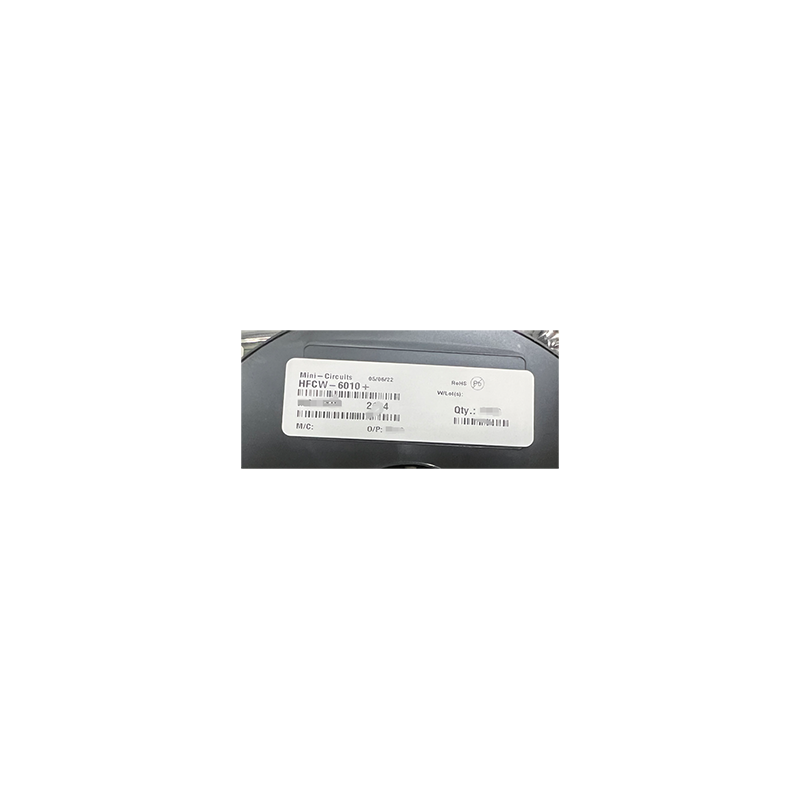

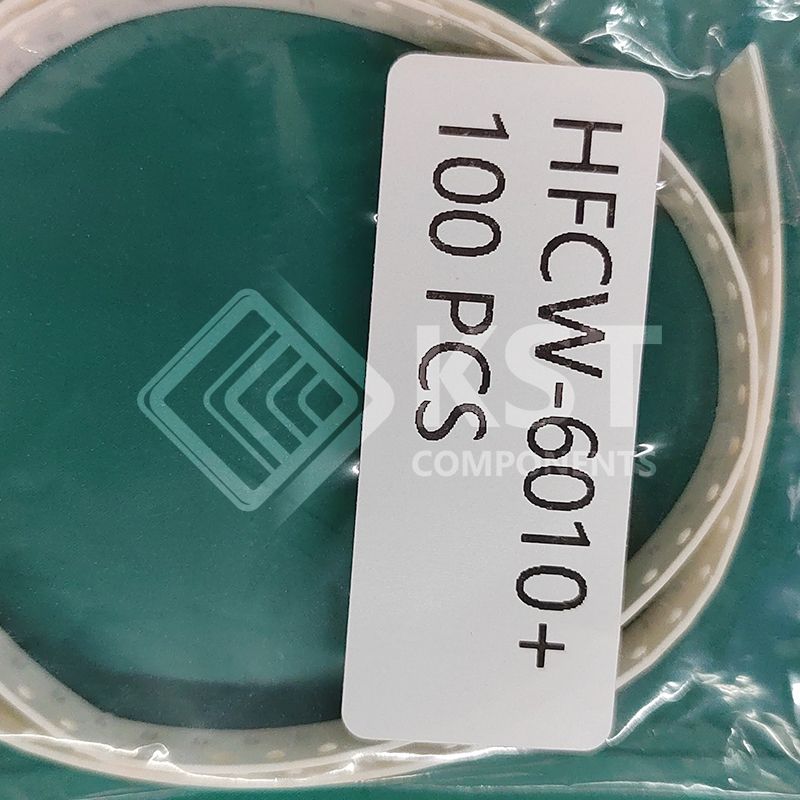

HFCW-6010+
Part Number:
HFCW-6010+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
LTCC HPF, 6400 - 20000 MHZ
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Ceramic Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
6.01GHz (Cutoff)
|
|
|
Impedance |
50Ohm
|
|
|
Bandwidth |
13.6 GHz
|
|
|
Insertion Loss |
1.4dB
|
|
|
Filter Type |
High Pass
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0603 (1608 Metric), 6 PC Pad
|
|
|
Size / Dimension |
0.063" L x 0.031" W (1.60mm x 0.80mm)
|
|
|
Height (Max) |
0.024" (0.61mm)
|
