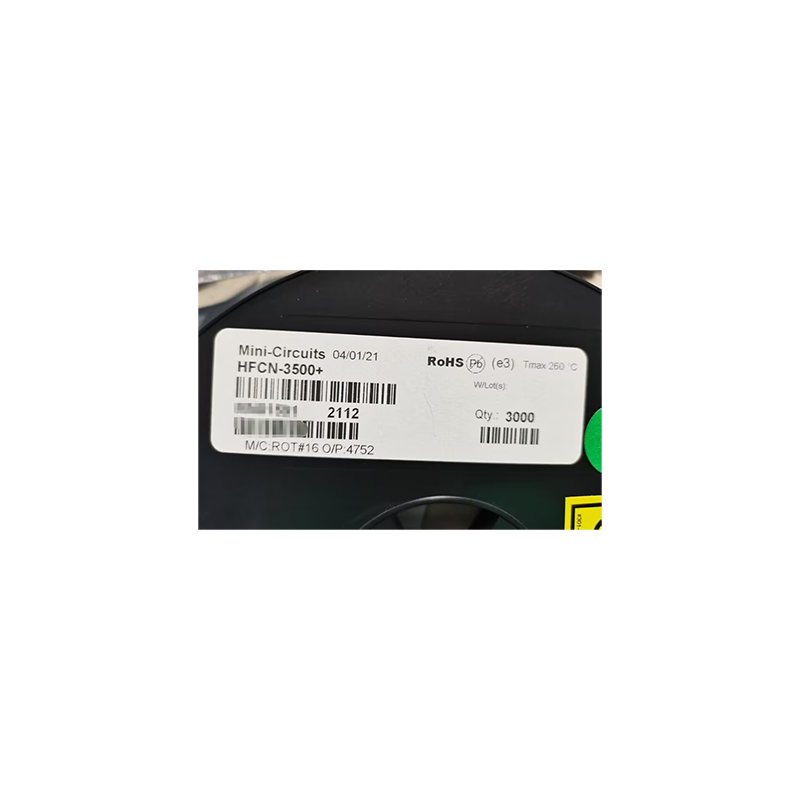

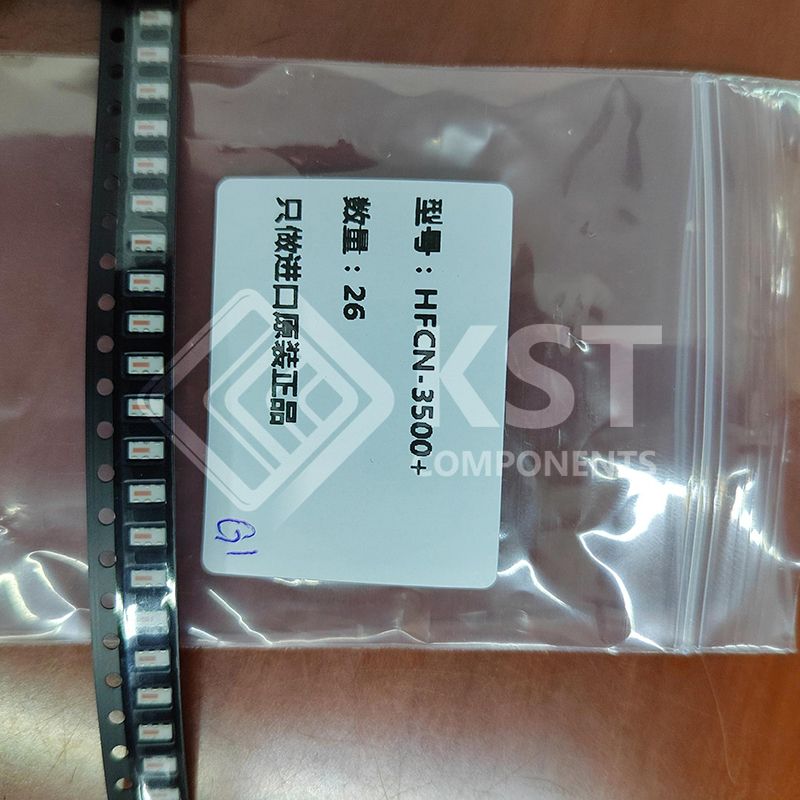

HFCN-3500+
Part Number:
HFCN-3500+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
LTCC HIGH PASS FILTER, 3900 - 98
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Ceramic Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
6.85GHz Center
|
|
|
Impedance |
50Ohm
|
|
|
Bandwidth |
5.9 GHz
|
|
|
Insertion Loss |
-
|
|
|
Filter Type |
High Pass
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-SMD, No Lead
|
|
|
Size / Dimension |
0.126" L x 0.063" W (3.20mm x 1.60mm)
|
|
|
Height (Max) |
0.042" (1.07mm)
|
