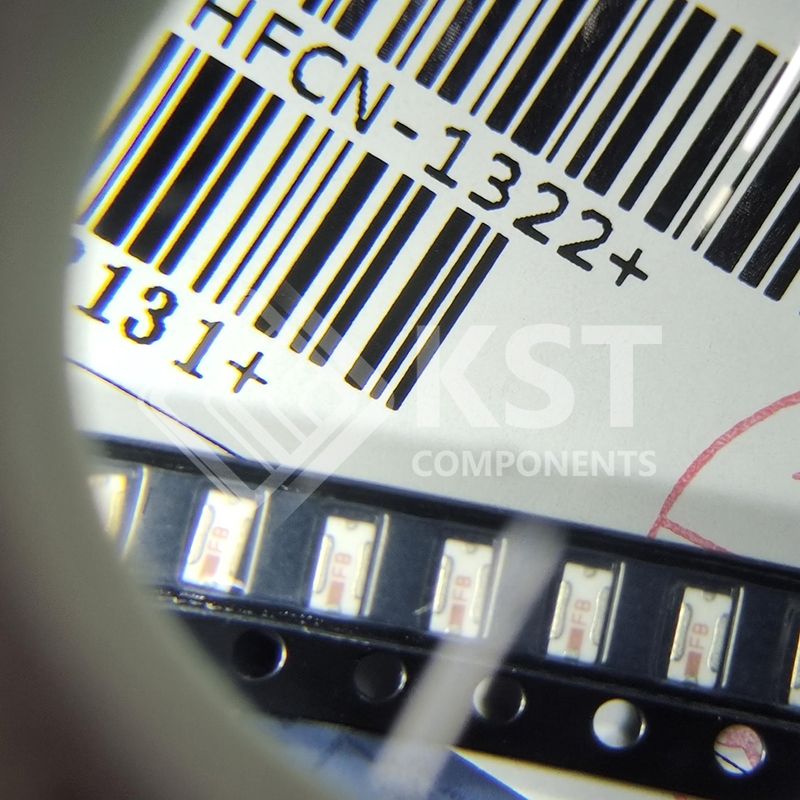

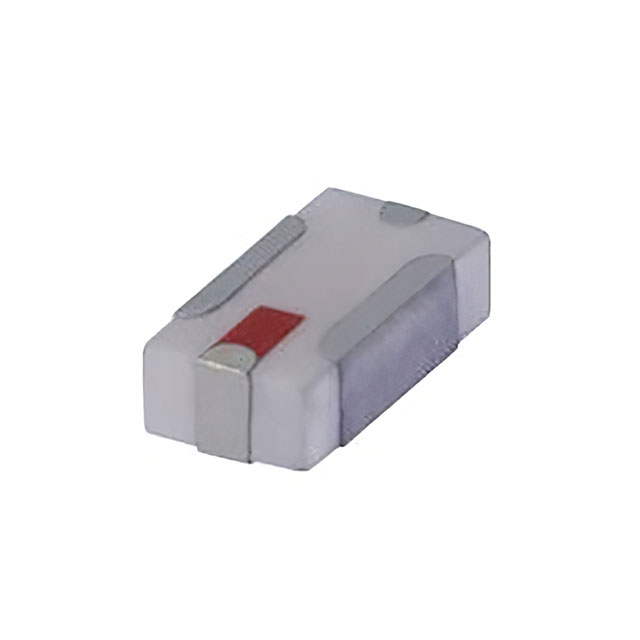

HFCN-1322+
Part Number:
HFCN-1322+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
LTCC HIGH PASS FILTER, 14300 - 1
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Ceramic Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
16.4GHz Center
|
|
|
Impedance |
50Ohm
|
|
|
Bandwidth |
4.2 GHz
|
|
|
Insertion Loss |
2.8dB
|
|
|
Filter Type |
High Pass
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, No Lead
|
|
|
Size / Dimension |
0.126" L x 0.063" W (3.20mm x 1.60mm)
|
|
|
Height (Max) |
0.041" (1.04mm)
|
