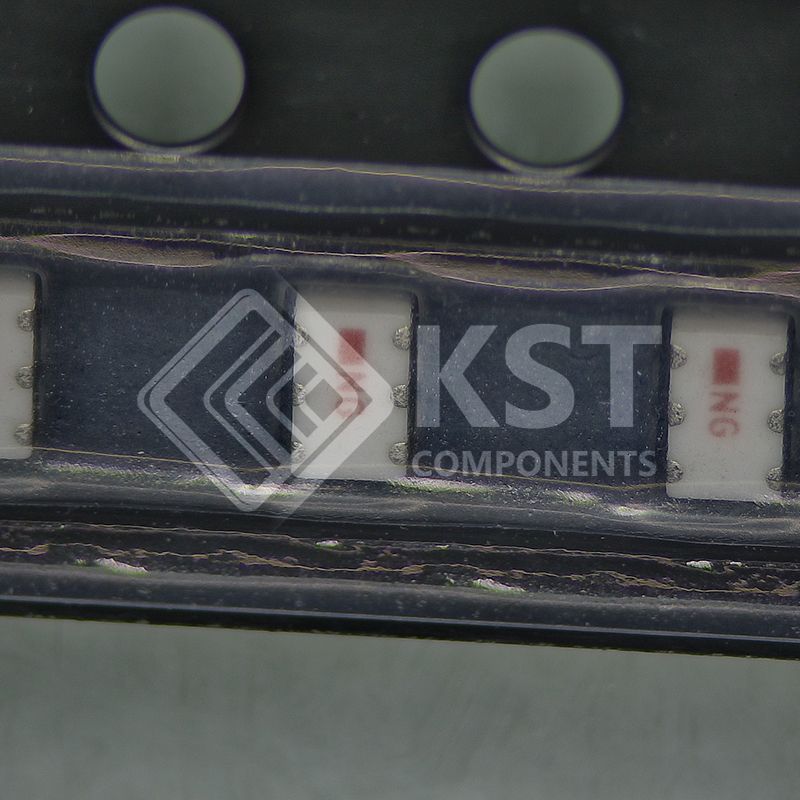

HFCG-4400+
Part Number:
HFCG-4400+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
LTCC HIGH PASS FILTER, 4900 - 18
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Ceramic Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |

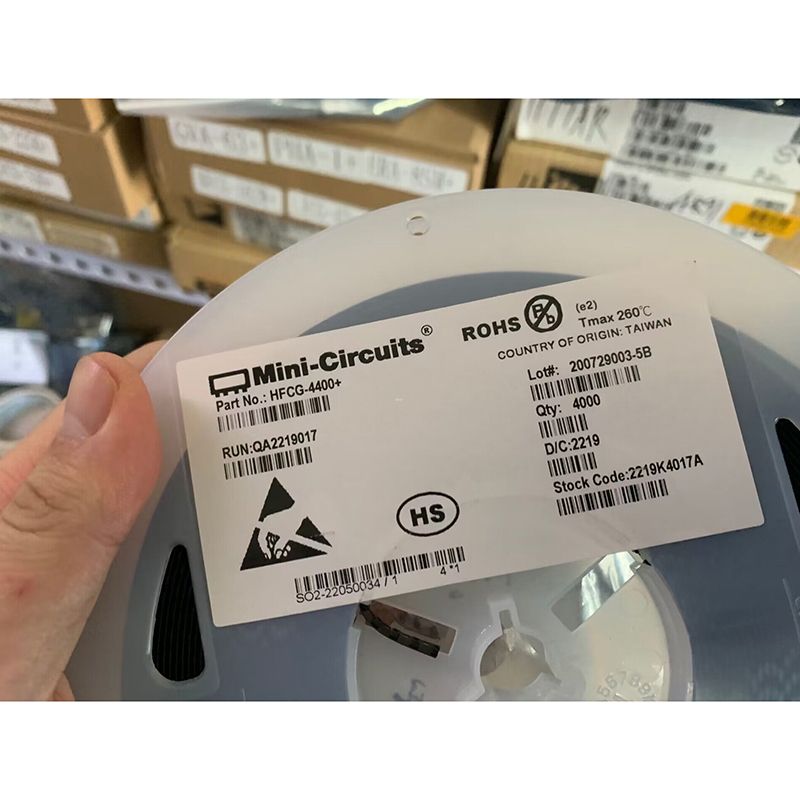

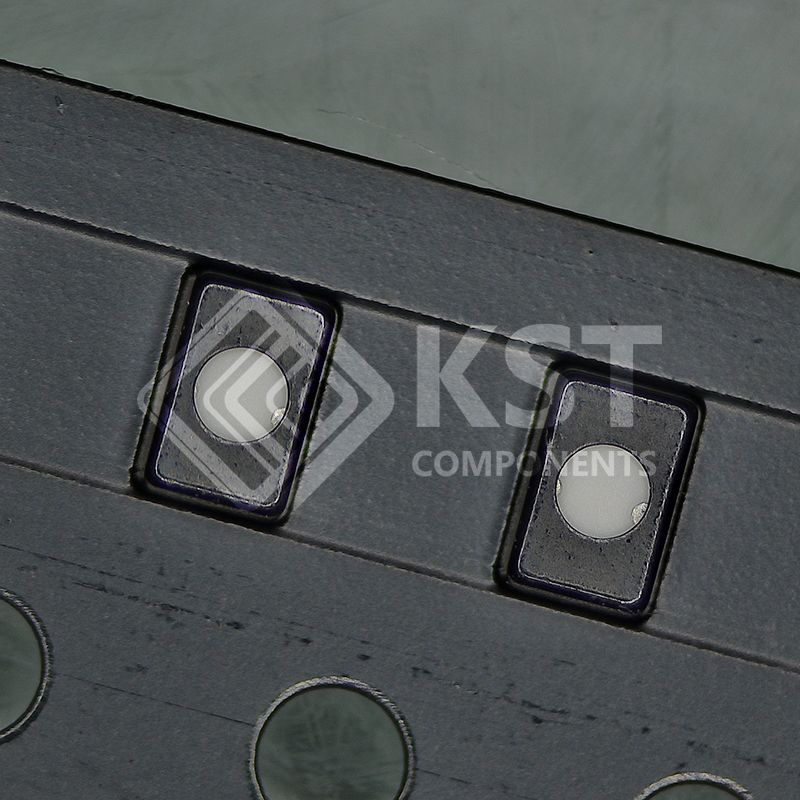

Tape & Reel (TR)

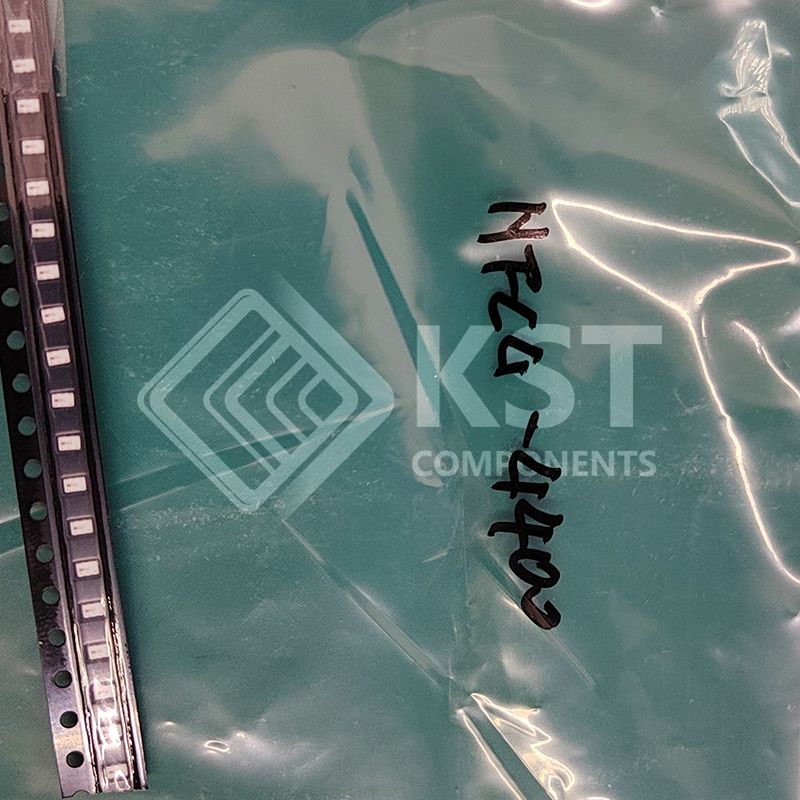

Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
4.56GHz (Cutoff)
|
|
|
Impedance |
50Ohm
|
|
|
Bandwidth |
13.6 GHz
|
|
|
Insertion Loss |
2dB
|
|
|
Filter Type |
High Pass
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0805 (2012 Metric), 6 PC Pad
|
|
|
Size / Dimension |
0.079" L x 0.049" W (2.00mm x 1.25mm)
|
|
|
Height (Max) |
0.046" (1.18mm)
|
