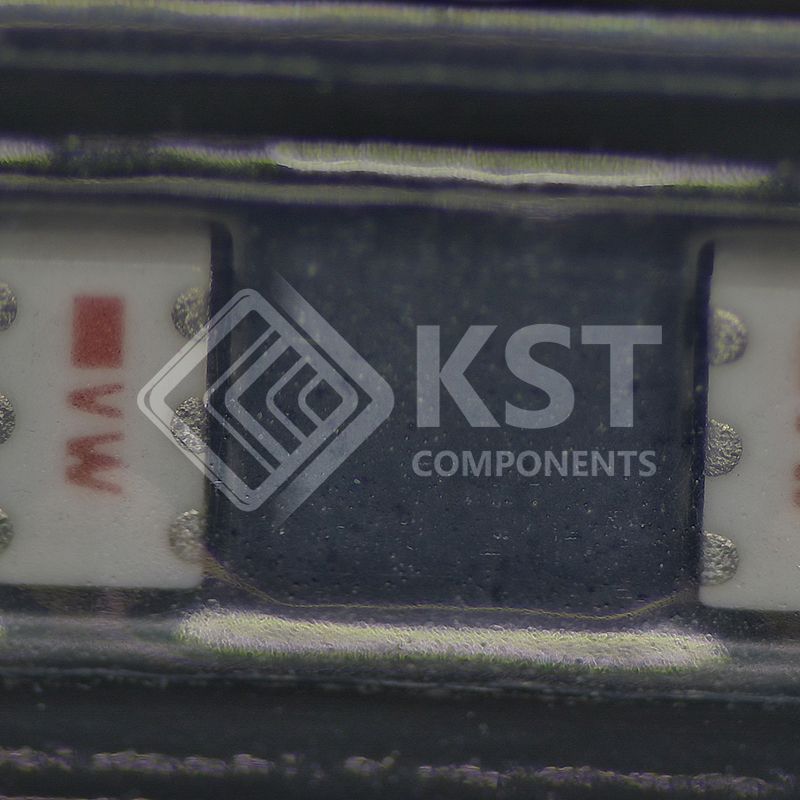

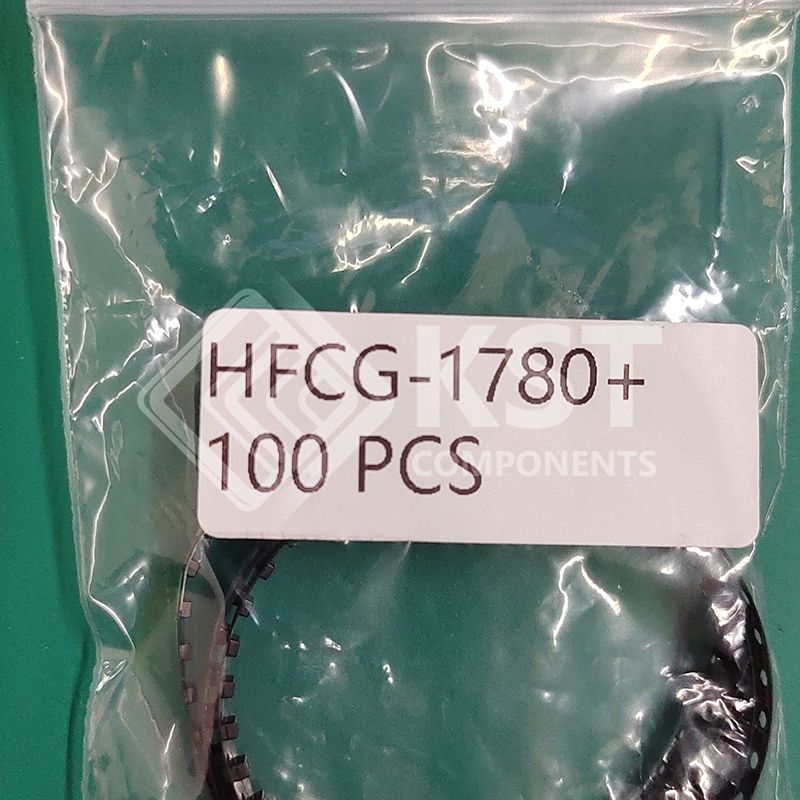

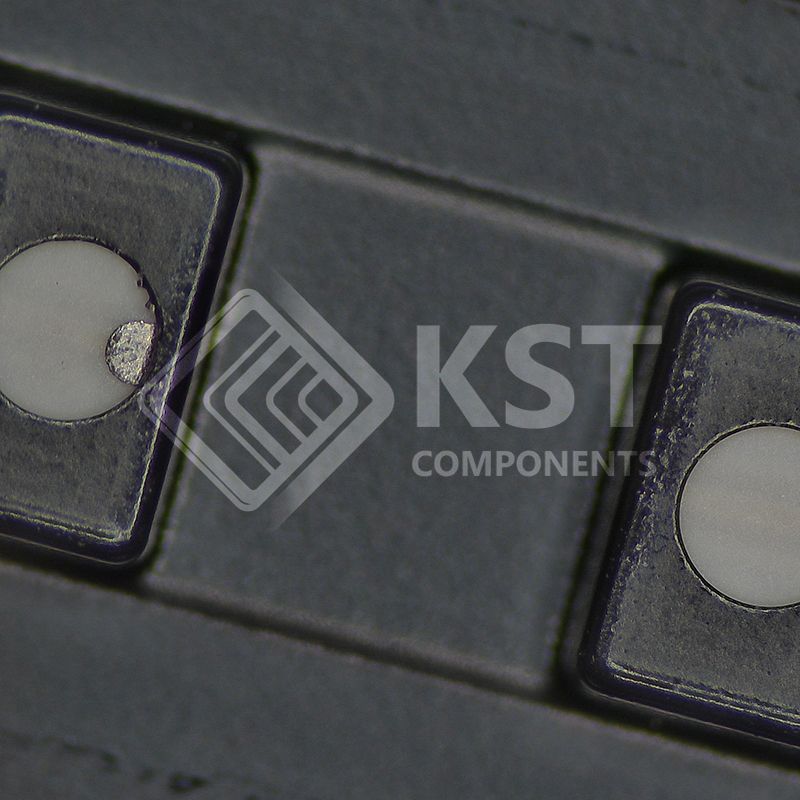

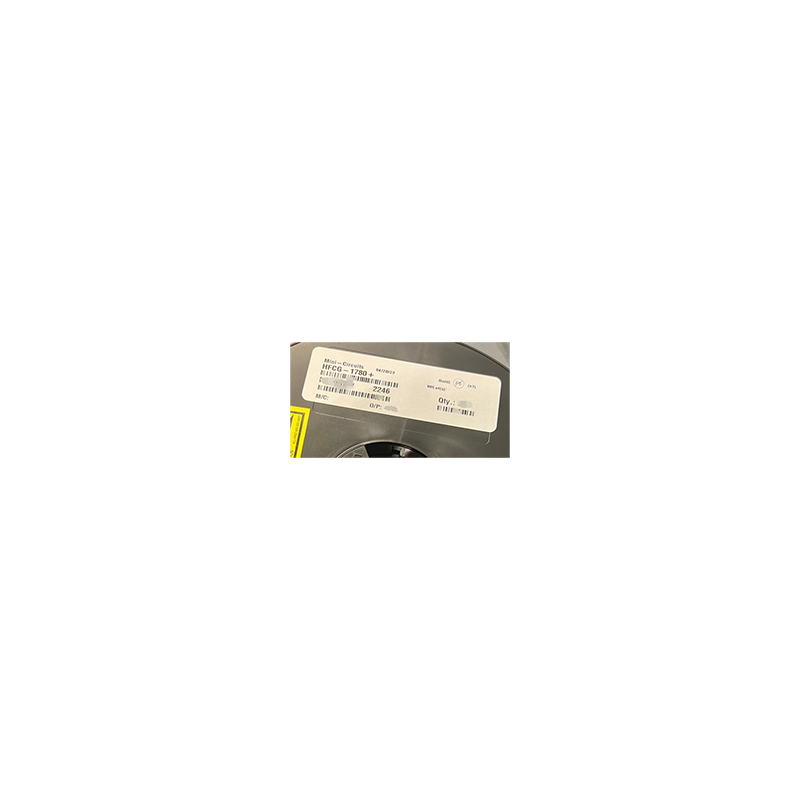

HFCG-1780+
Part Number:
HFCG-1780+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
RF FILTER HIGH PASS 6.49GHZ 0805
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
RF Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Frequency |
6.49GHz Center
|
|
|
Bandwidth |
9.02GHz
|
|
|
Filter Type |
High Pass
|
|
|
Ripple |
-
|
|
|
Insertion Loss |
1.5dB
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0805 (2012 Metric), 6 PC Pad
|
|
|
Size / Dimension |
0.079" L x 0.049" W (2.00mm x 1.25mm)
|
|
|
Height (Max) |
0.046" (1.18mm)
|
