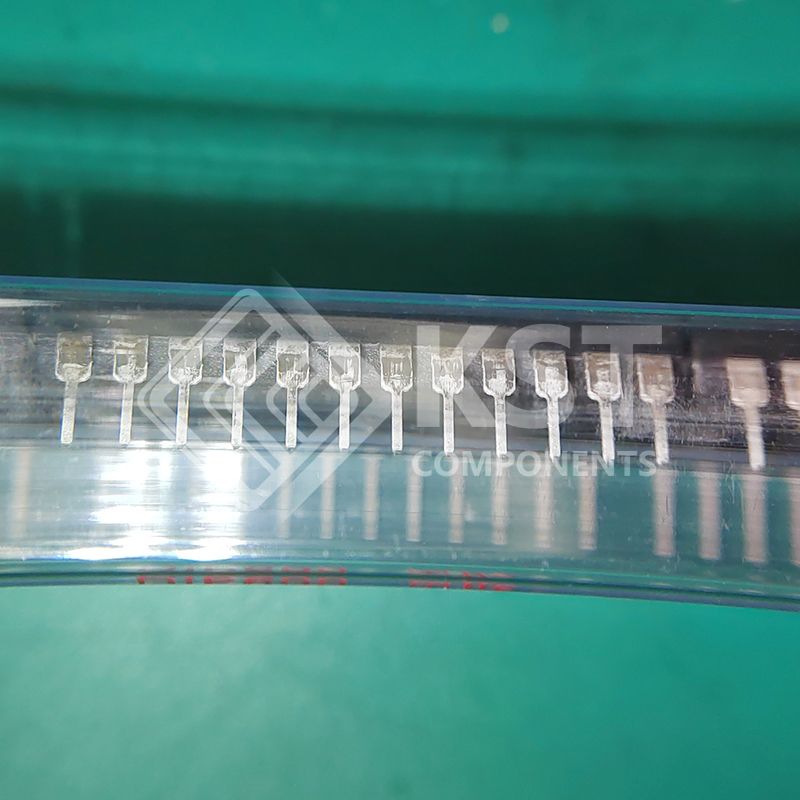

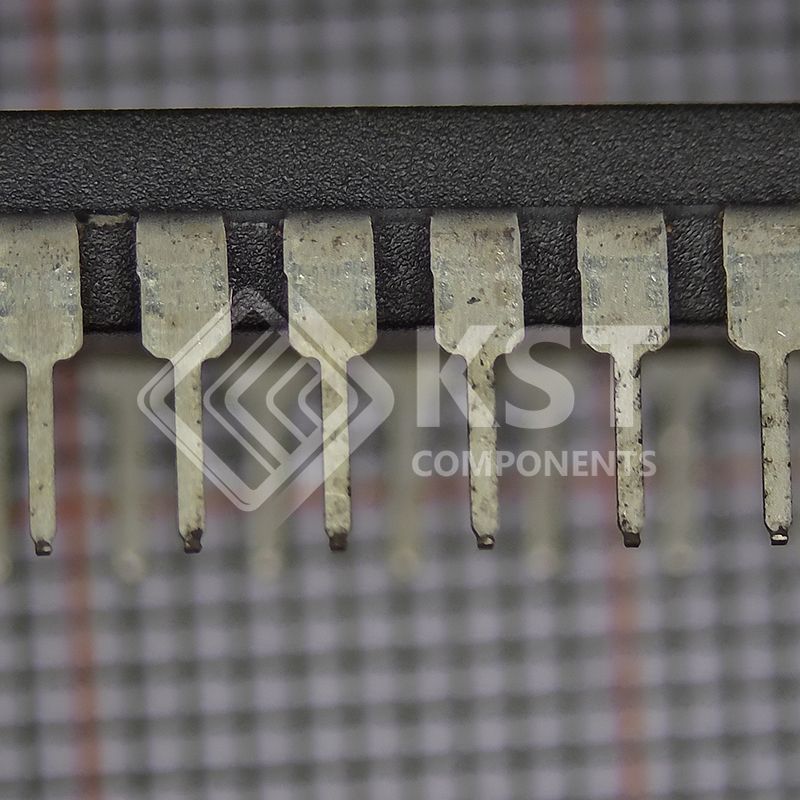

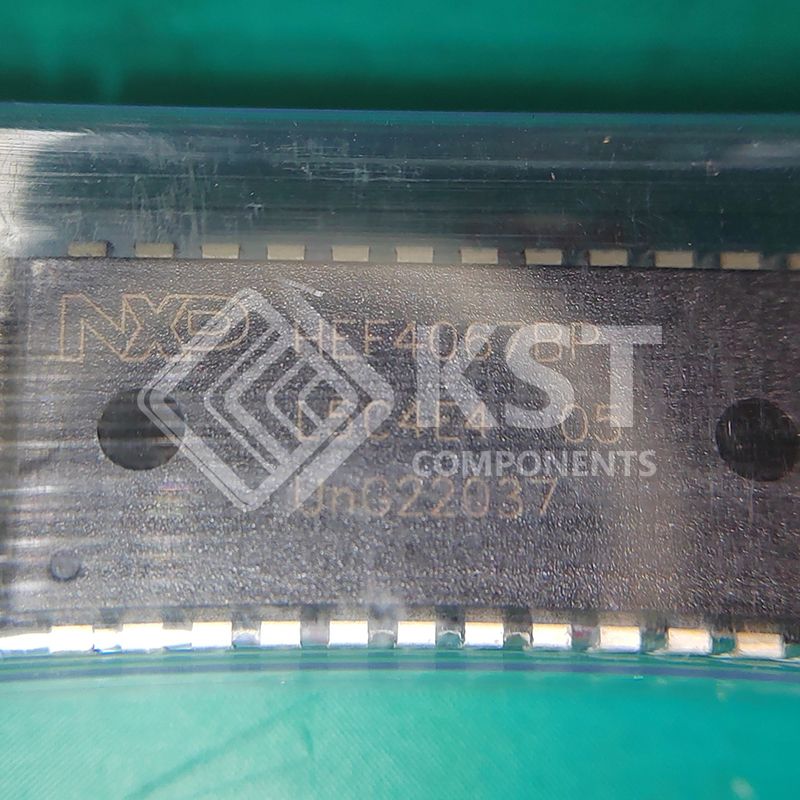

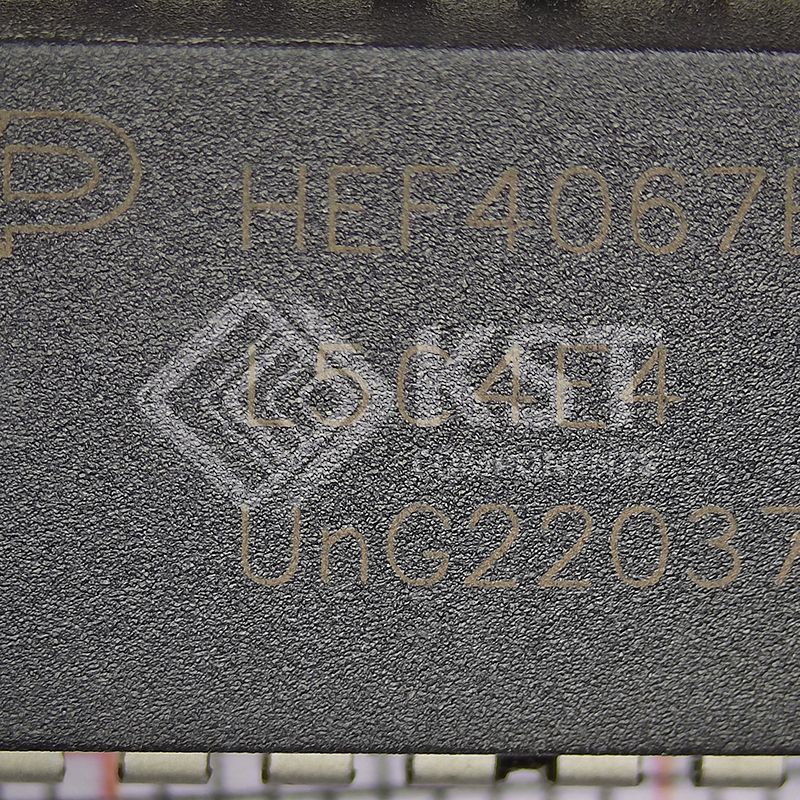

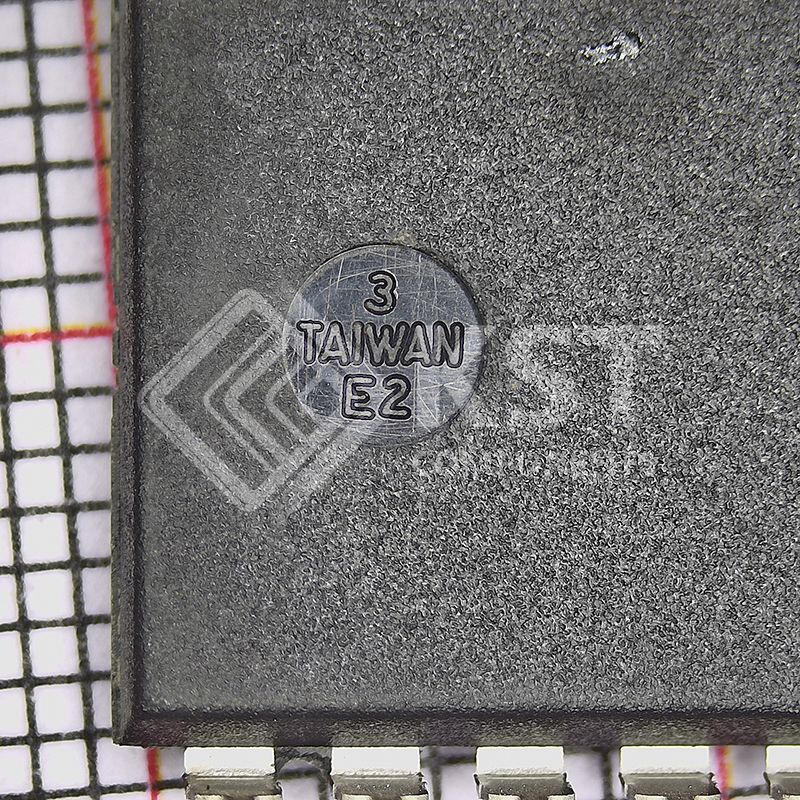

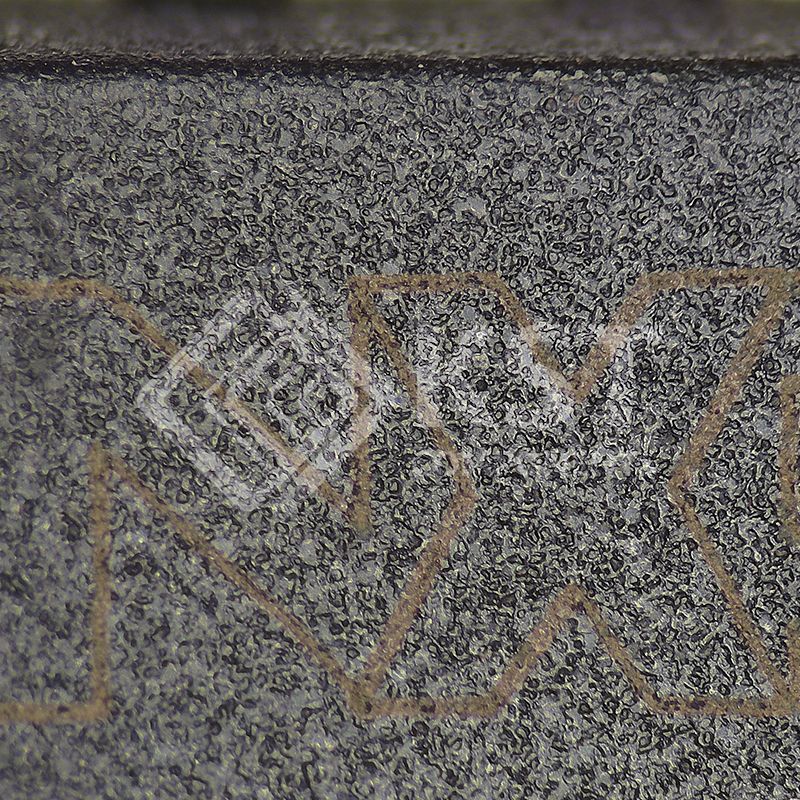

HEF4067BP,652
Part Number:
HEF4067BP,652
Product Classification:
Accessories
Manufacturer:
AirBorn
Description:
IC MUX 16:1 155OHM 24DIP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer |
NXP USA Inc.
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Obsolete
|
|
|
Switch Circuit |
-
|
|
|
Multiplexer/Demultiplexer Circuit |
16:1
|
|
|
Number of Circuits |
1
|
|
|
On-State Resistance (Max) |
155Ohm
|
|
|
Channel-to-Channel Matching (ΔRon) |
5Ohm
|
|
|
Voltage - Supply, Single (V+) |
3V ~ 15V
|
|
|
Voltage - Supply, Dual (V±) |
-
|
|
|
Switch Time (Ton, Toff) (Max) |
-
|
|
|
-3db Bandwidth |
70MHz
|
|
|
Charge Injection |
-
|
|
|
Channel Capacitance (CS(off), CD(off)) |
7.5pF
|
|
|
Current - Leakage (IS(off)) (Max) |
200nA
|
|
|
Crosstalk |
-50dB @ 1MHz
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
24-DIP (0.600", 15.24mm)
|
|
|
Supplier Device Package |
24-DIP
|
|
|
Base Product Number |
HEF40 |
