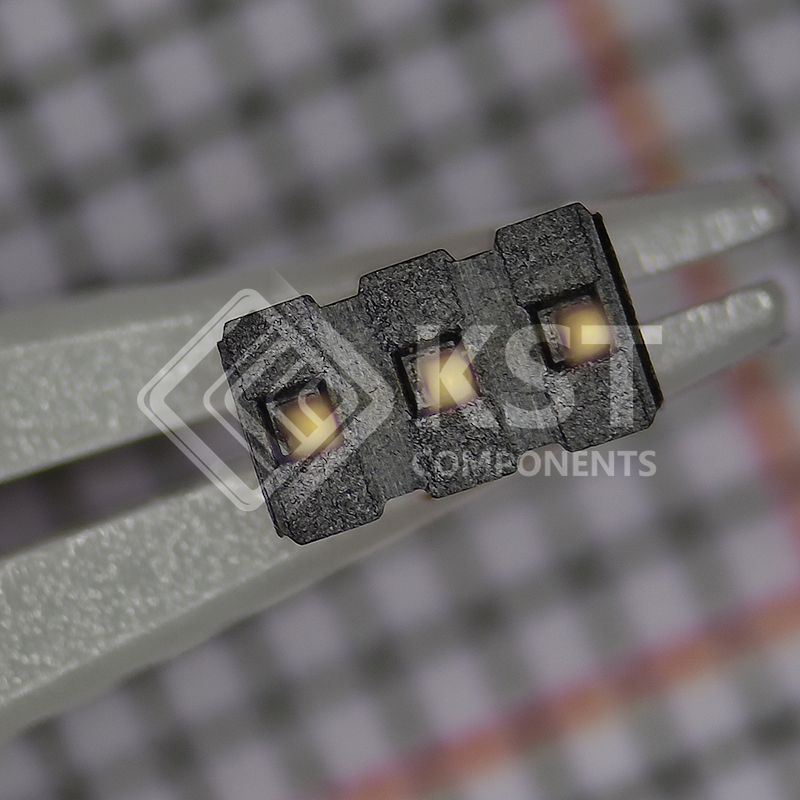

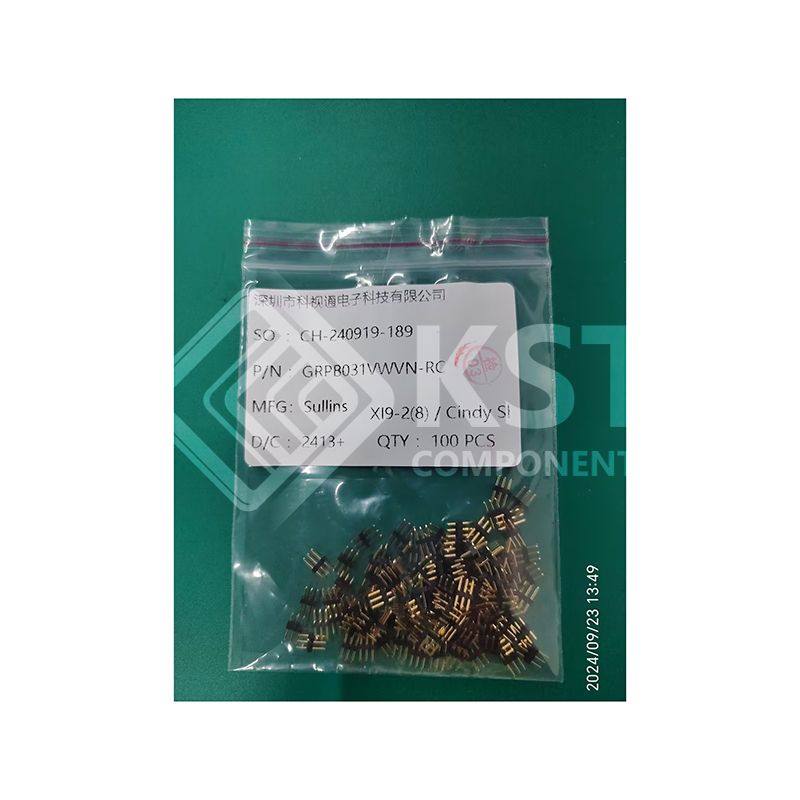

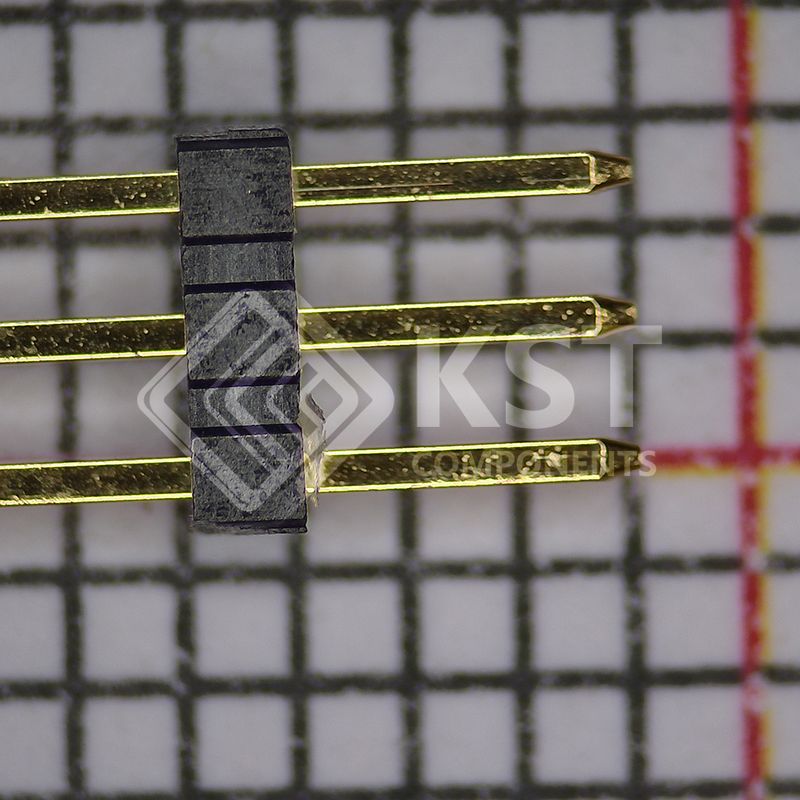

GRPB031VWVN-RC
Part Number:
GRPB031VWVN-RC
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Amphenol PCD Shenzhen
Description:
CONN HEADER VERT 3POS 1.27MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Sullins Connector Solutions |
|
|
Series |
-
|
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.050" (1.27mm) |
|
|
Number of Positions |
3 |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Board or Cable |
|
|
Shrouding |
Unshrouded
|
|
|
Mounting Type |
Through Hole |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Push-Pull
|
|
|
Contact Length - Mating |
0.118" (3.00mm)
|
|
|
Contact Length - Post |
0.091" (2.30mm)
|
|
|
Overall Contact Length |
0.248" (6.30mm)
|
|
|
Insulation Height |
0.039" (1.00mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Contact Finish Thickness - Mating |
Flash
|
|
|
Contact Finish - Post |
Gold
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Polyamide (PA9T), Nylon 9T
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
-
|
|
|
Current Rating (Amps) |
1A
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
Flash
|
|
|
Applications |
-
|
|
|
Base Product Number |
GRPB031 |
