FSMD020-R
Part Number:
FSMD020-R
Product Classification:
Fan Accessories
Manufacturer:
Big Cat Cables
Description:

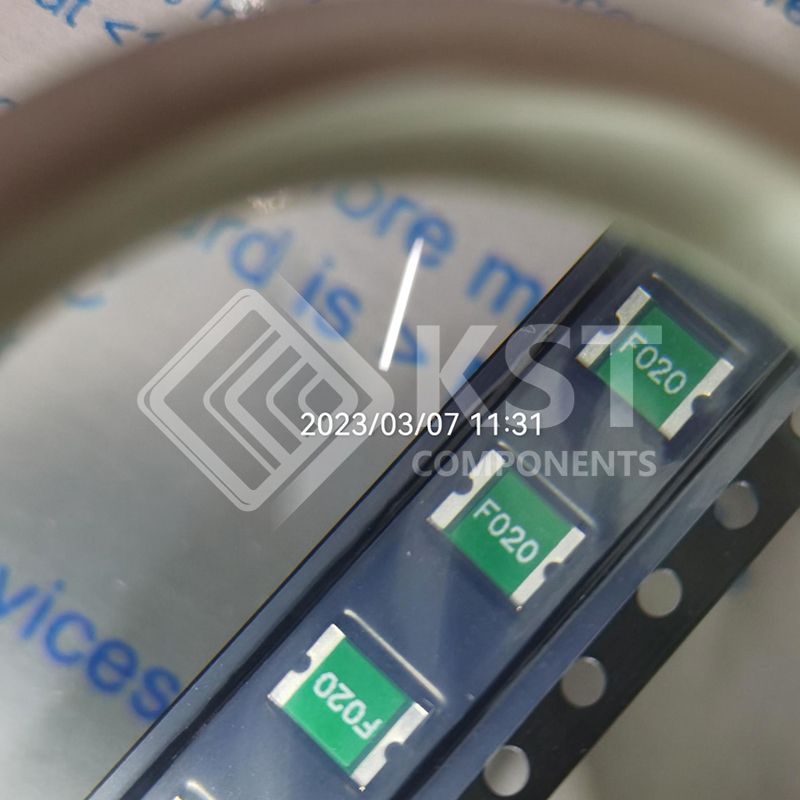

RESETTABLE FUSE - SMD, 1812 SIZE
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer |
RFE/Fuzetec
|
|
|
Series |
FSMD1812 |
|
|
Packaging |

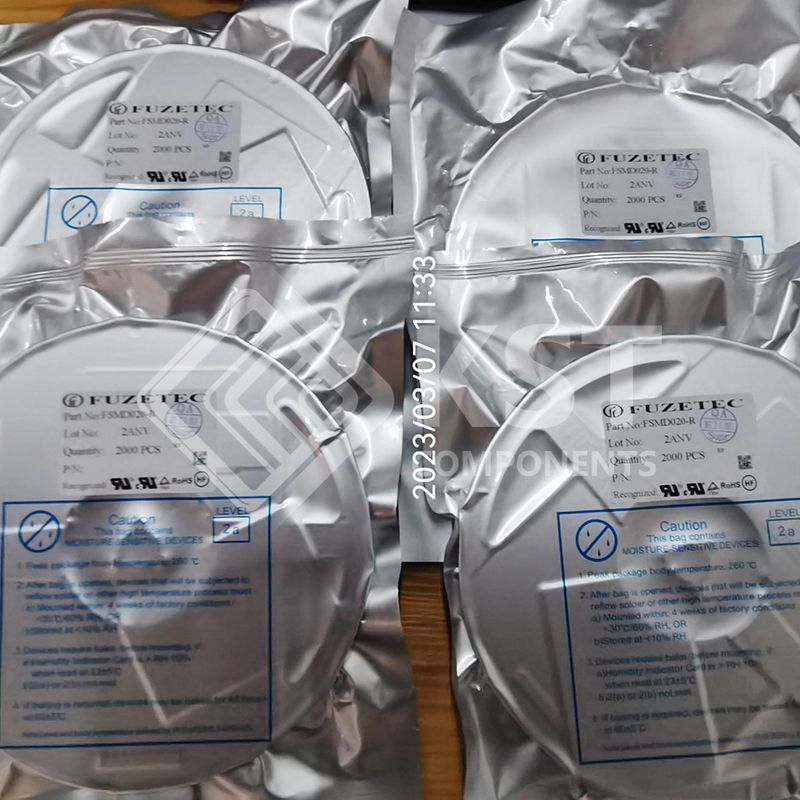

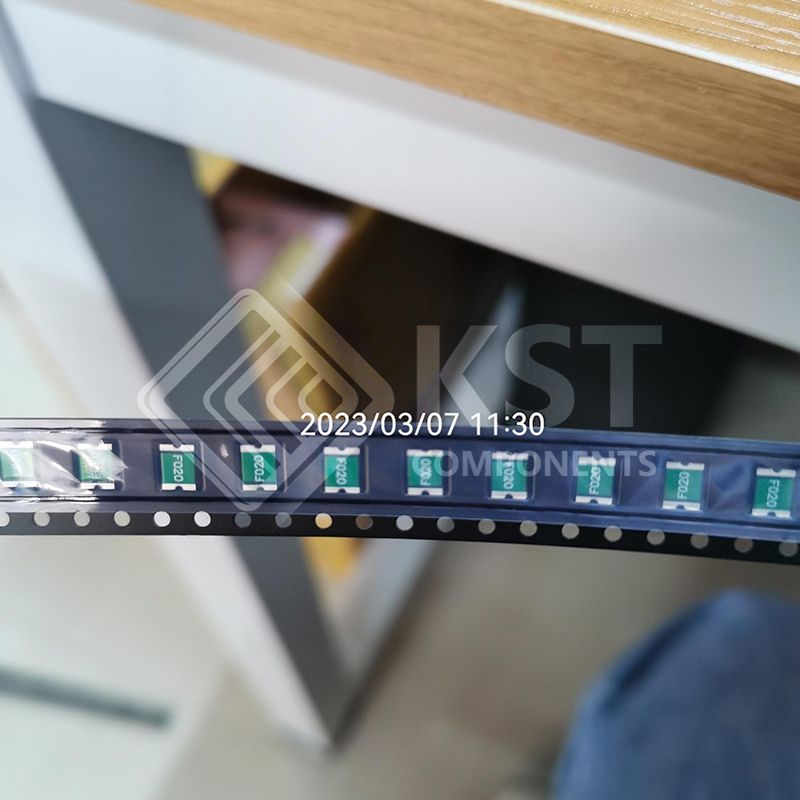

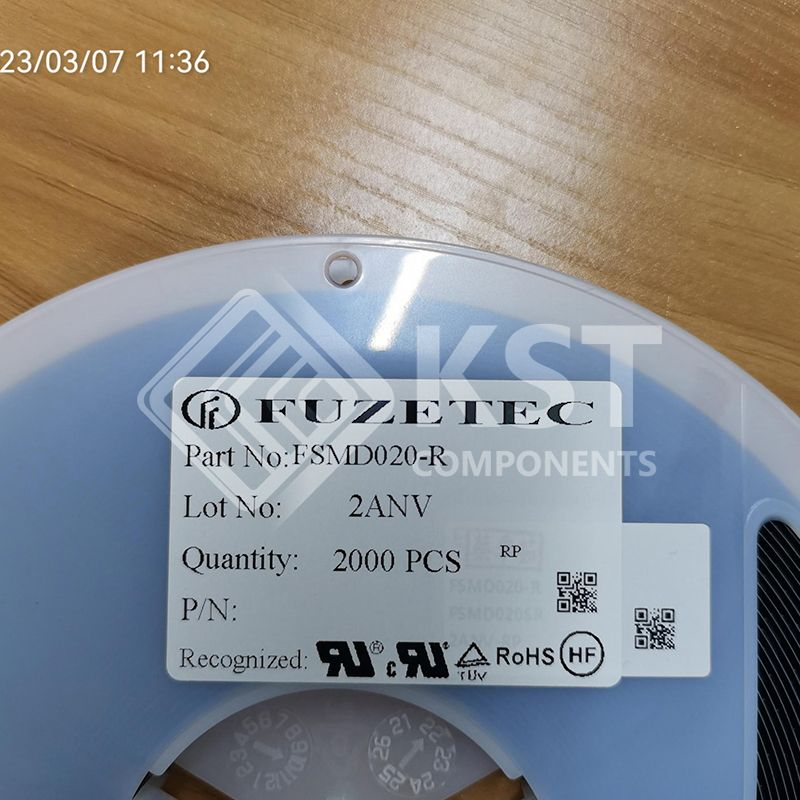

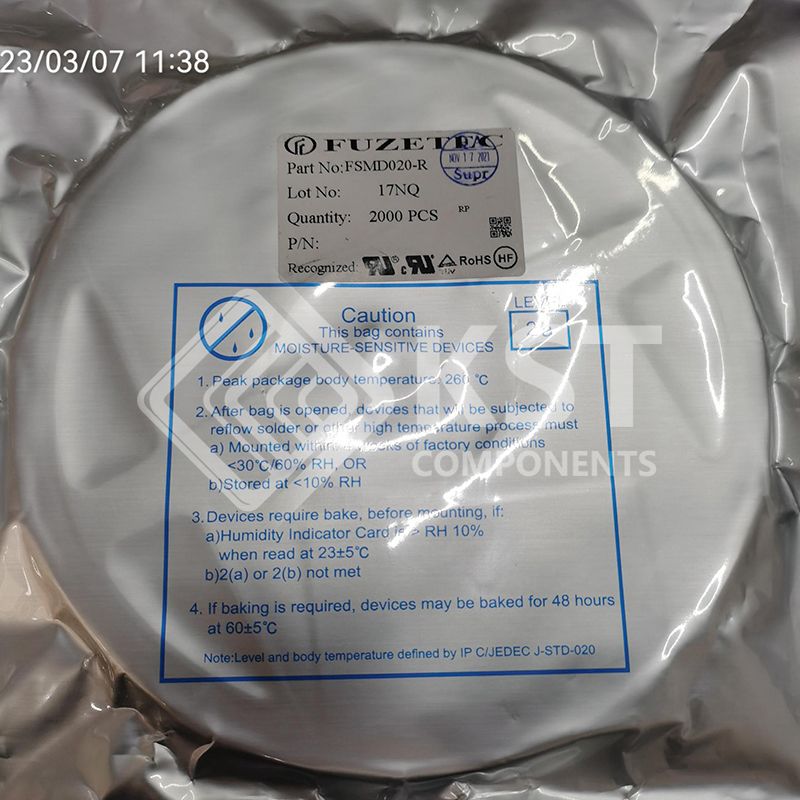

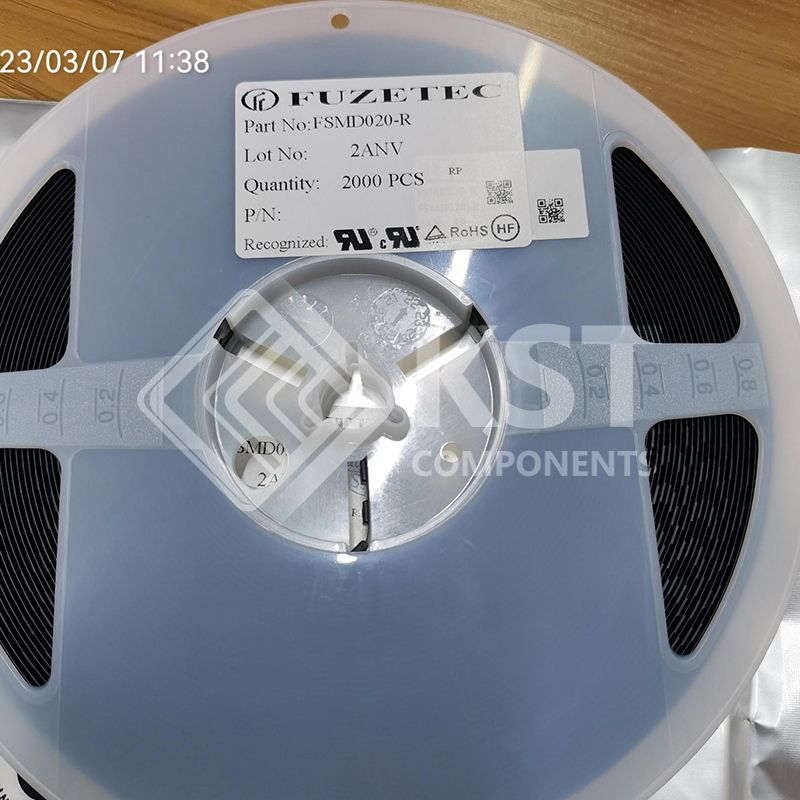

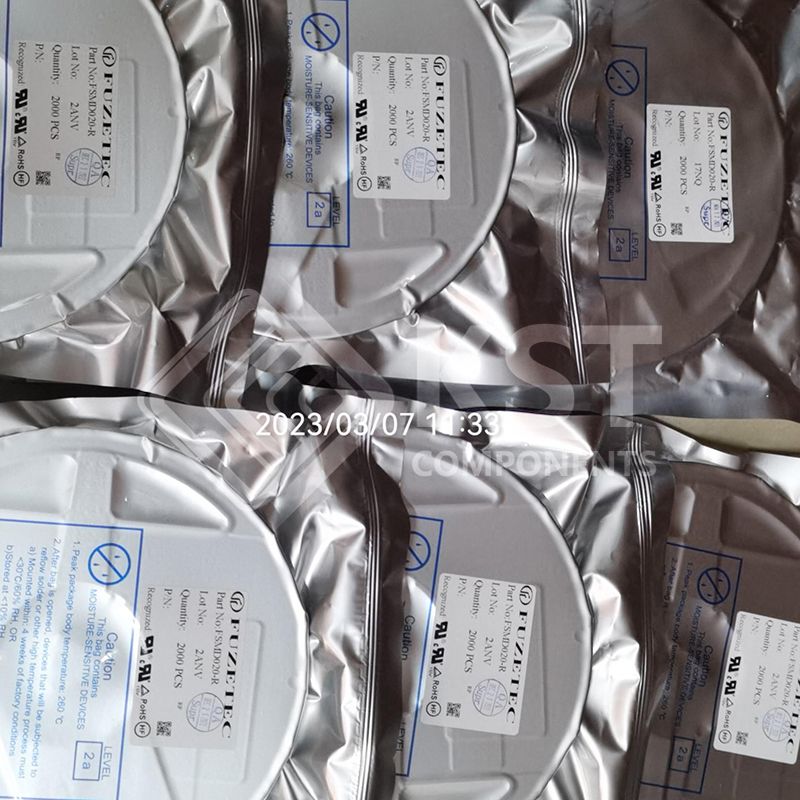

Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Type |
-
|
|
|
Voltage - Max |
30V
|
|
|
Current - Hold (Ih) (Max) |
200 mA
|
|
|
Current - Trip (It) |
400 mA
|
|
|
Current - Max |
100 A
|
|
|
Time to Trip |
20 ms
|
|
|
Resistance - Initial (Ri) (Min) |
800 mOhms
|
|
|
Resistance - Post Trip (R1) (Max) |
5 Ohms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1812 (4532 Metric), Concave
|
|
|
Size / Dimension |
0.179" L x 0.128" W (4.55mm x 3.24mm)
|
|
|
Height - Seated (Max) |
-
|
|
|
Thickness (Max) |
0.035" (0.90mm)
|
|
|
Lead Spacing |
-
|
|
|
Approval Agency |
cUL, TUV, UL
|
