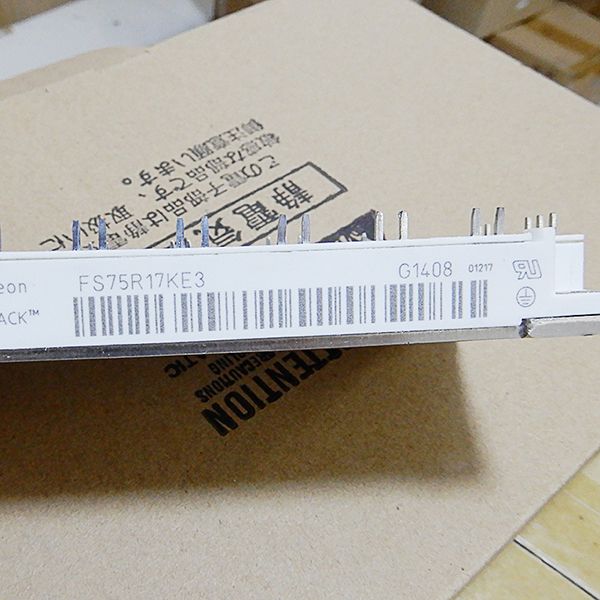

FS75R17KE3

/*! elementor - v3.6.1 - 23-03-2022 */ .elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}

Benefits:

Compact module concept Optimized customer’s development cycle time and cost Configuration flexibility Fast, reliable and low cost mounting concept

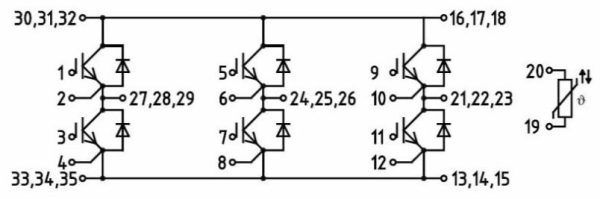

Diagrams:

/*! elementor - v3.6.1 - 23-03-2022 */ .elementor-widget-image{text-align:center}.elementor-widget-image a{display:inline-block}.elementor-widget-image a img[src$=".svg"]{width:48px}.elementor-widget-image img{vertical-align:middle;display:inline-block}

Parametrics:

Parametrics	FS75R17KE3
Applications	Aircon ; Drives ; Induction Heating ; UPS
Configuration	Sixpack
Dimensions (width)	62.0 mm
Dimensions (length)	122.0 mm
Housing	EconoPACK™ 3
IC(nom) / IF(nom)	75.0 A
Qualification	Industrial
VCE(sat) (Tvj=25°C typ)	2.0 V
VF (Tvj=25°C typ)	1.8 V
Voltage Class	1700.0 V
Parametrics	FS75R17KE3
