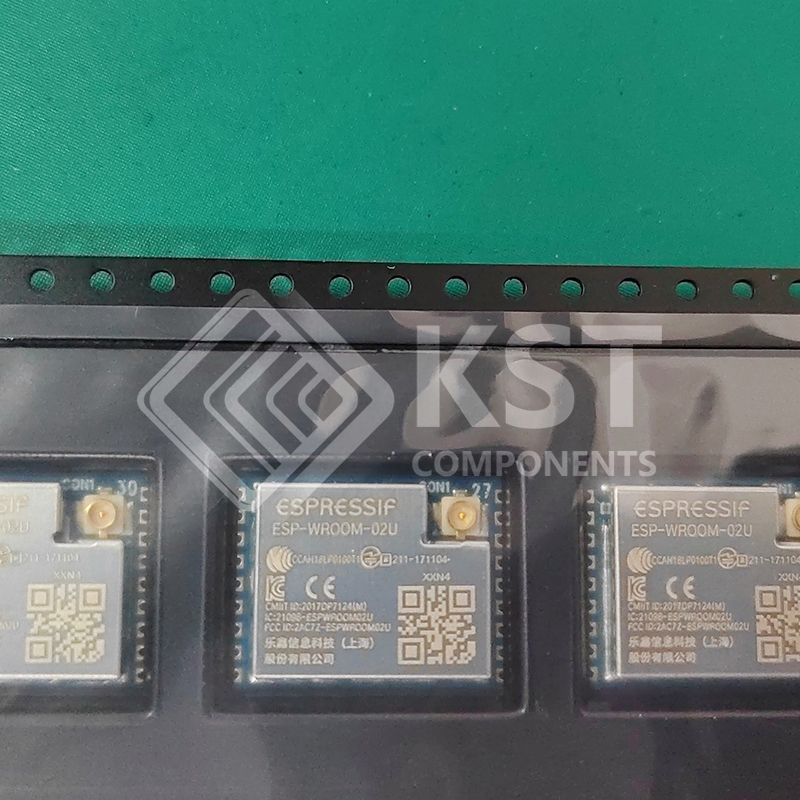

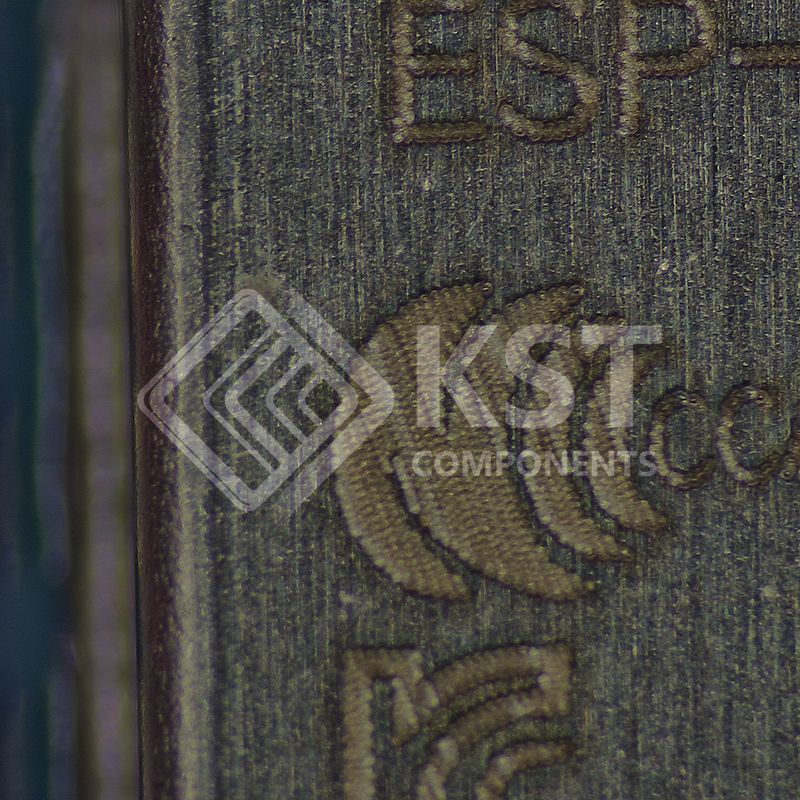

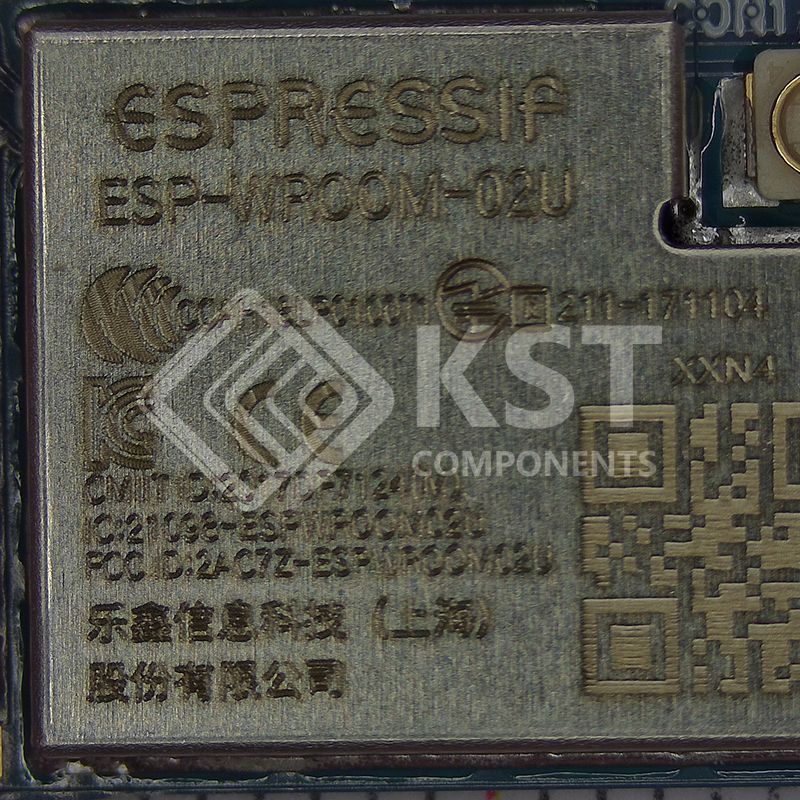

ESP-WROOM-02U-N4
Part Number:
ESP-WROOM-02U-N4
Product Classification:
Accessories
Manufacturer:
Digi
Description:
RF TXRX MODULE WIFI U.FL SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Transceiver Modules and Modems
|
|
|
Mfr |
Espressif Systems |
|
|
Series |
ESP |
|
|

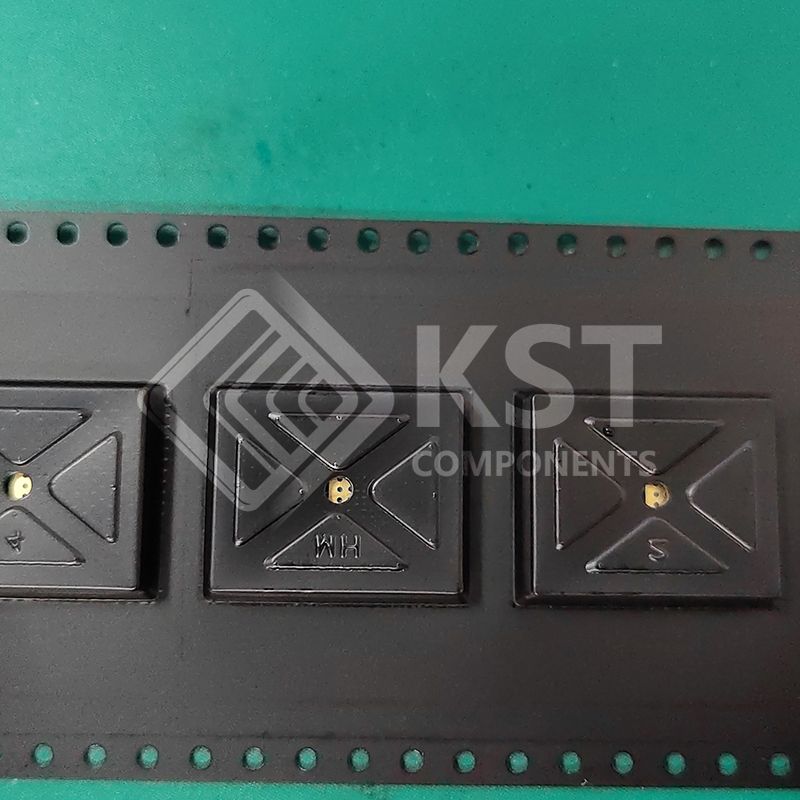

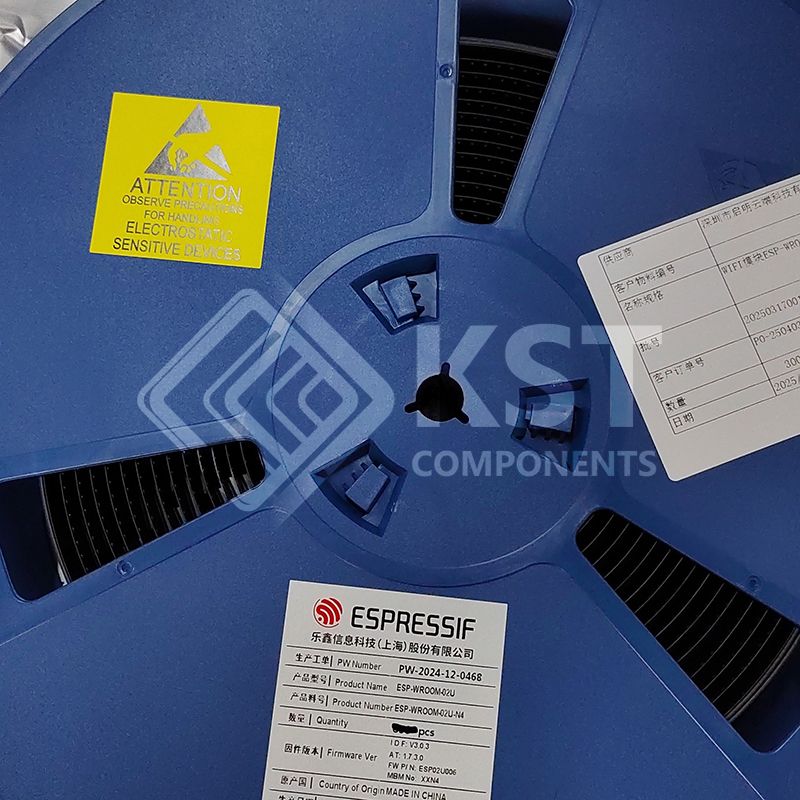

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
RF Family/Standard |
WiFi
|
|
|
Protocol |
802.11b/g/n |
|
|
Modulation |
64-QAM, BPSK, CCK, OFDM
|
|
|
Frequency |
2.4GHz ~ 2.5GHz
|
|
|
Data Rate |
72.2Mbps
|
|
|
Power - Output |
20.5dBm
|
|
|
Sensitivity |
-98dBm
|
|
|
Serial Interfaces |
ADC, GPIO, I2C, I2S, SPI, PWM, UART
|
|
|
Antenna Type |
Antenna Not Included, U.FL
|
|
|
Utilized IC / Part |
ESP8266EX
|
|
|
Memory Size |
4MB Flash, 50kB RAM
|
|
|
Voltage - Supply |
2.7V ~ 3.6V
|
|
|
Current - Receiving |
50mA ~ 56mA
|
|
|
Current - Transmitting |
120mA ~ 170mA
|
|
|
Mounting Type |
Surface Mount
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Package / Case |
18-SMD Module
|
|
|
Base Product Number |
ESP-WROOM |
