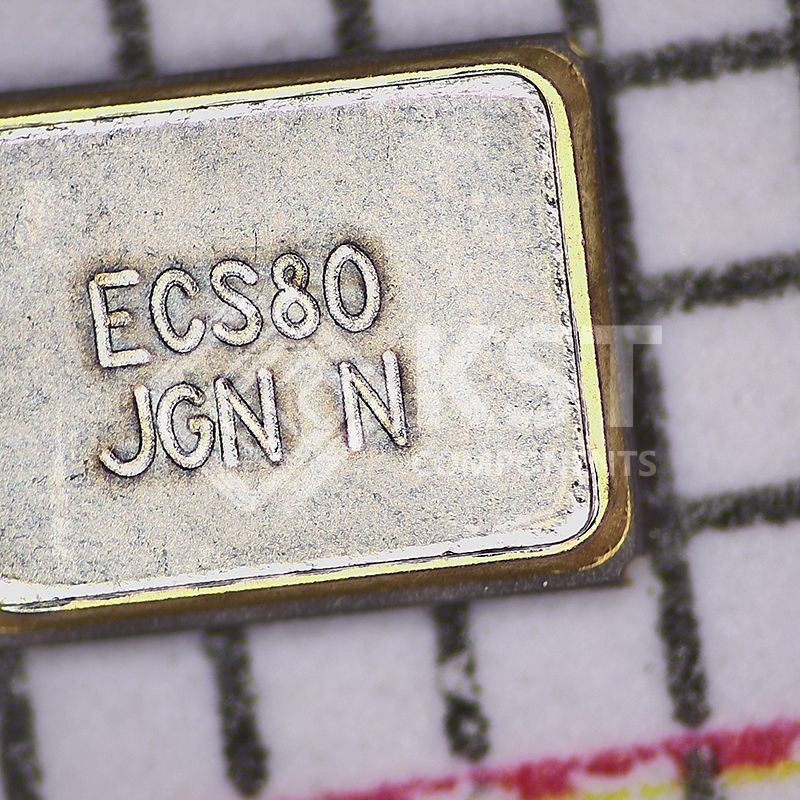

ECS-80-18-33-JGN-TR
Part Number:
ECS-80-18-33-JGN-TR
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
Amphenol CONEC
Description:
CRYSTAL 8.0000MHZ 18PF SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Crystals
|
|
|
Mfr |
ECS Inc. |
|
|
Series |
ECX-32 |
|
|
Packaging |

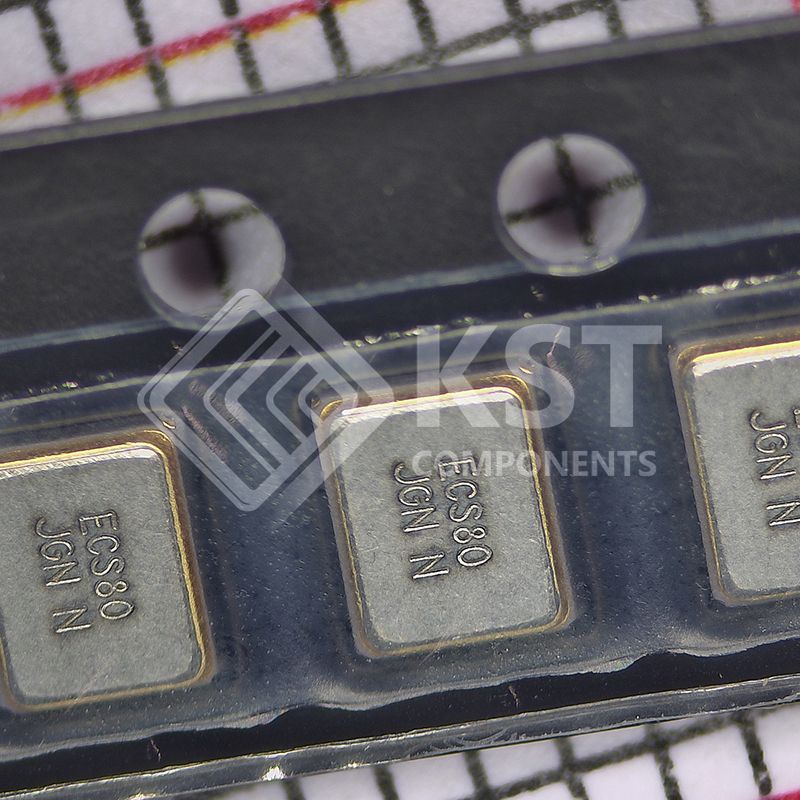

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
MHz Crystal
|
|
|
Frequency |
8 MHz
|
|
|
Frequency Stability |
±30ppm
|
|
|
Frequency Tolerance |
±20ppm
|
|
|
Load Capacitance |
18pF
|
|
|
ESR (Equivalent Series Resistance) |
400 Ohms
|
|
|
Operating Mode |
Fundamental
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

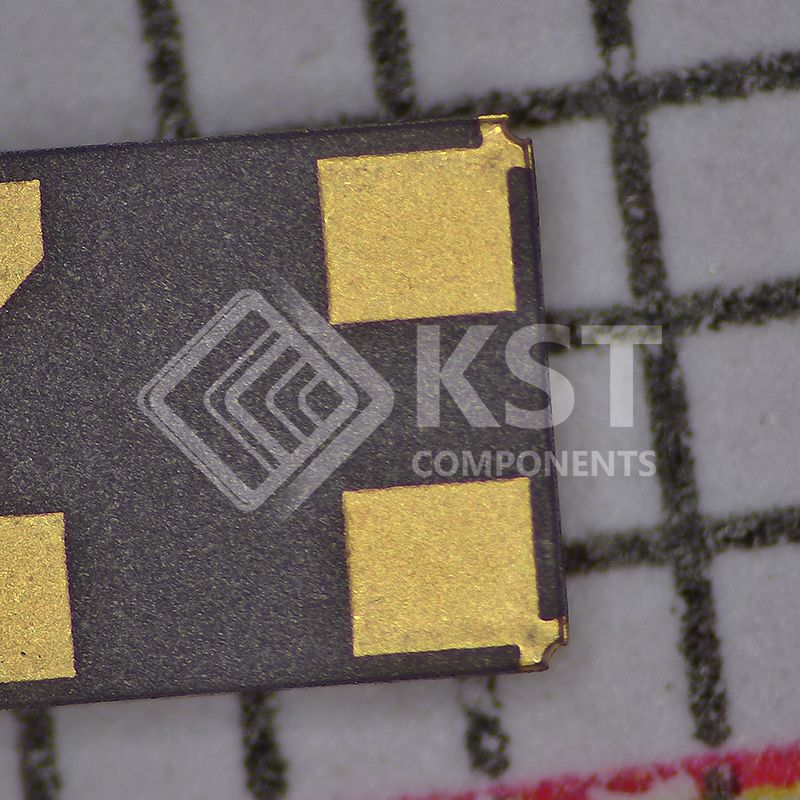

4-SMD, No Lead |
|
|
Size / Dimension |
0.126" L x 0.098" W (3.20mm x 2.50mm)
|
|
|

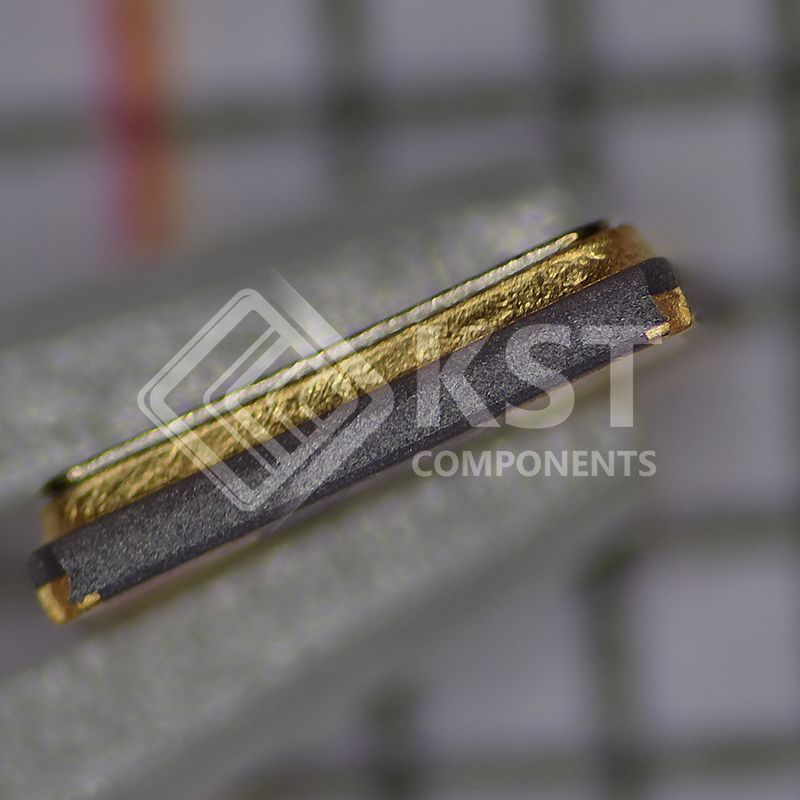

Height - Seated (Max) |
0.031" (0.80mm)
|
