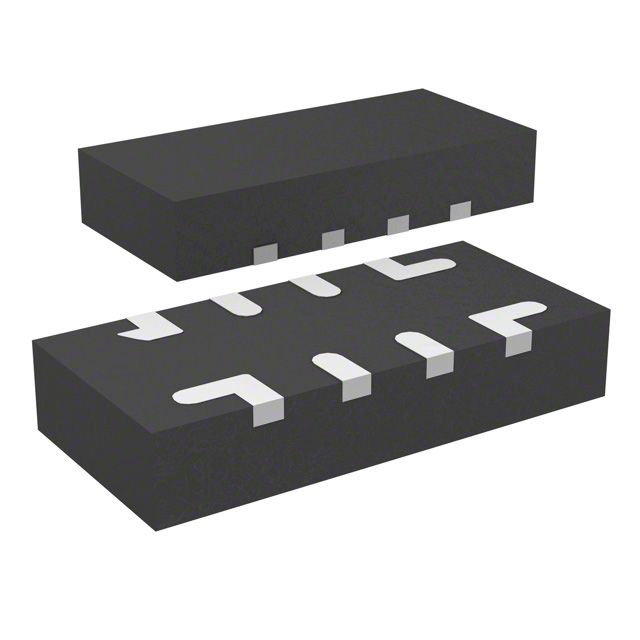

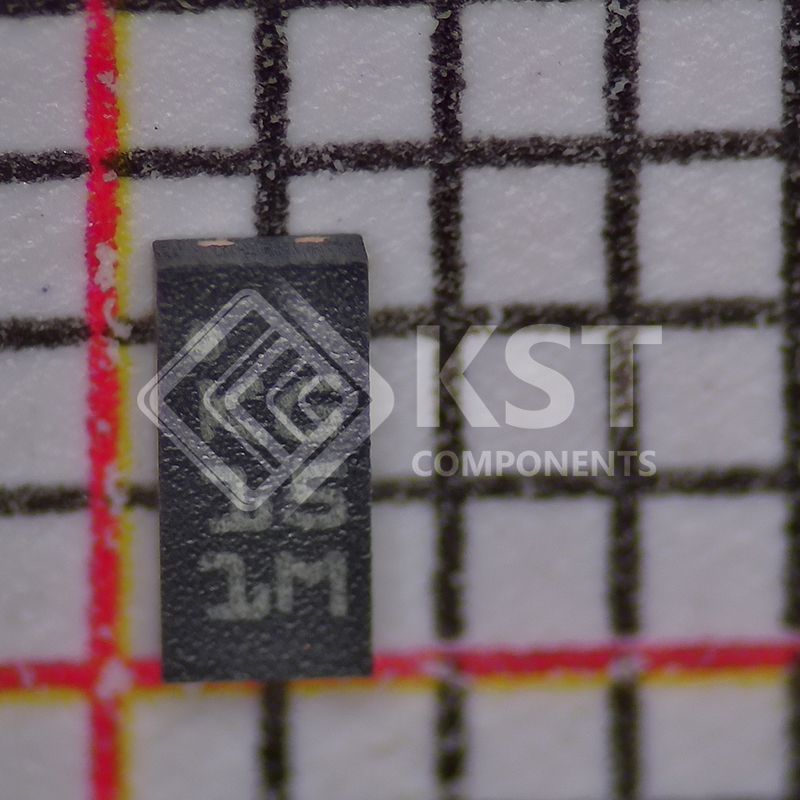

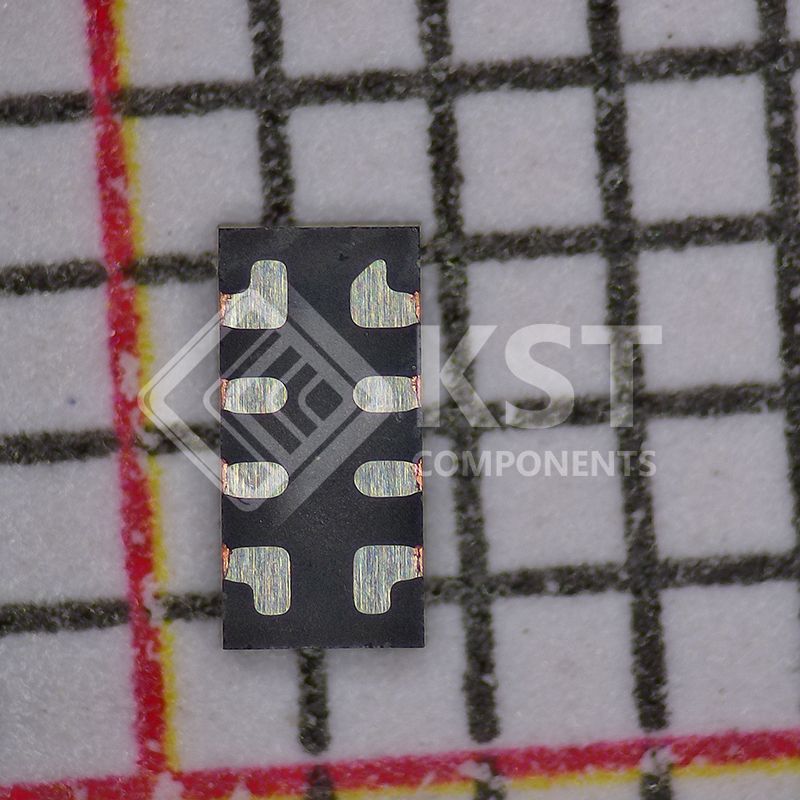

ECMF02-4CMX8
Part Number:
ECMF02-4CMX8
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
3M
Description:
CMC 2LN SMD ESD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Common Mode Chokes
|
|
|
Manufacturer |
STMicroelectronics
|
|
|
Series |
ECMF |
|
|

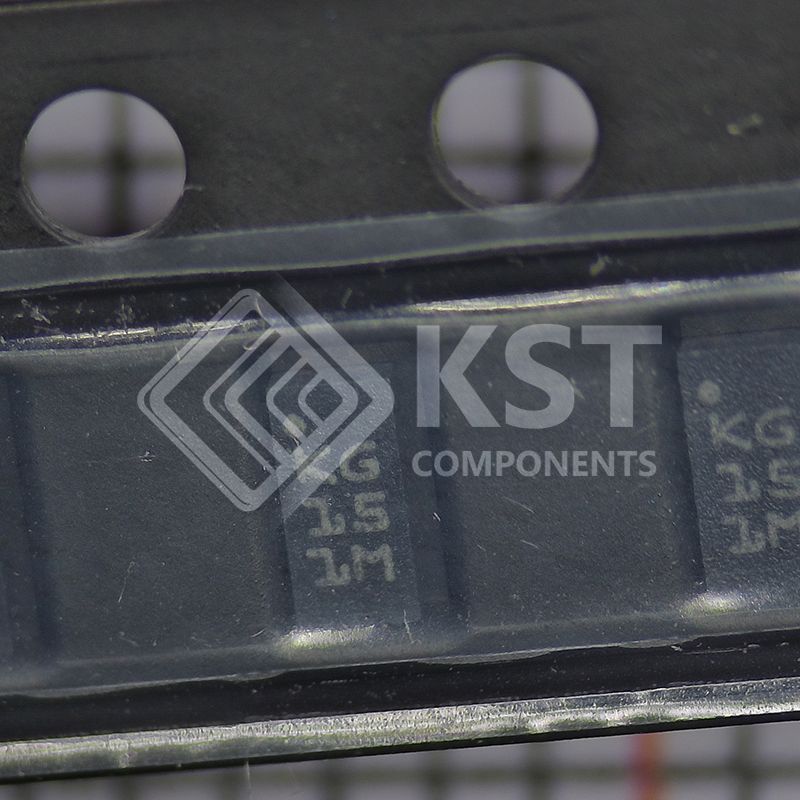

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Filter Type |
Signal Line
|
|
|
Number of Lines |
2
|
|
|
Current Rating (Max) |
-
|
|
|
DC Resistance (DCR) (Max) |
4Ohm
|
|
|
Voltage Rating - DC |
-
|
|
|
Voltage Rating - AC |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Ratings |
-
|
|
|
Approval Agency |
-
|
|
|
Features |
TVS Diode ESD Protection
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.098" L x 0.047" W (2.50mm x 1.20mm)
|
|
|
Height (Max) |
0.022" (0.55mm)
|
|
|
Package / Case |
8-UFDFN
|
|
|
Base Product Number |
ECMF02 |
