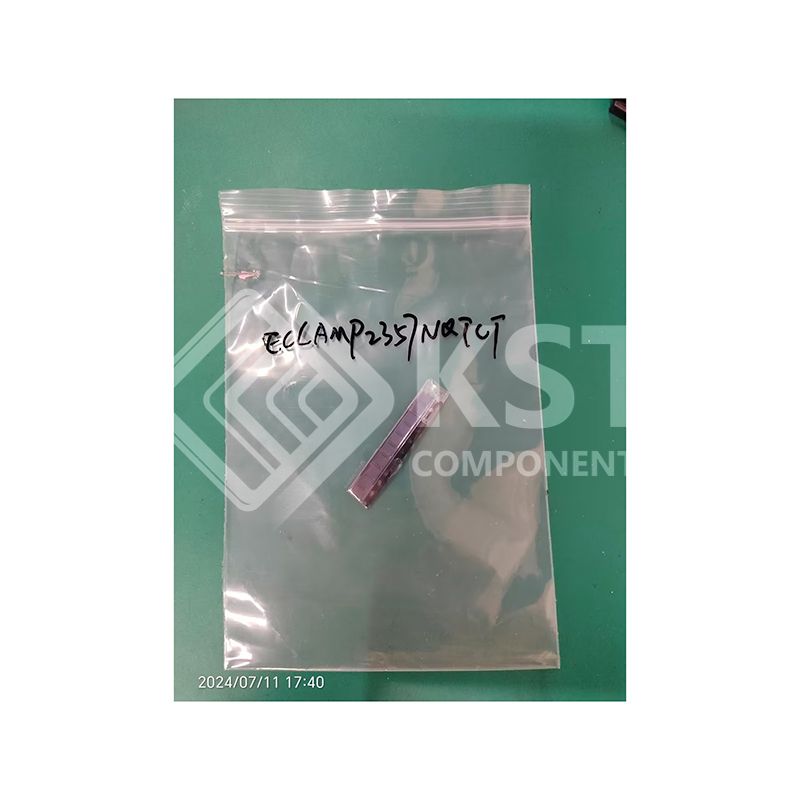

ECLAMP2357NQTCT
Part Number:
ECLAMP2357NQTCT
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
ACES GROUP
Description:
FILTER LC(PI) 100 OHM/12PF SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
EMI/RFI Filters (LC, RC Networks)
|
|
|
Manufacturer |
Semtech Corporation
|
|
|
Series |
EMIClamp® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Low Pass
|
|
|
Filter Order |
3rd
|
|
|
Technology |
RC (Pi)
|
|
|
Number of Channels |
6
|
|
|
Center / Cutoff Frequency |
-
|
|
|
Attenuation Value |
30dB @ 1.8GHz
|
|
|
Resistance - Channel (Ohms) |
100
|
|
|
Values |
R = 100Ohms, C = 12pF
|
|
|
ESD Protection |
Yes
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Applications |
-
|
|
|
Voltage - Rated |
-
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|

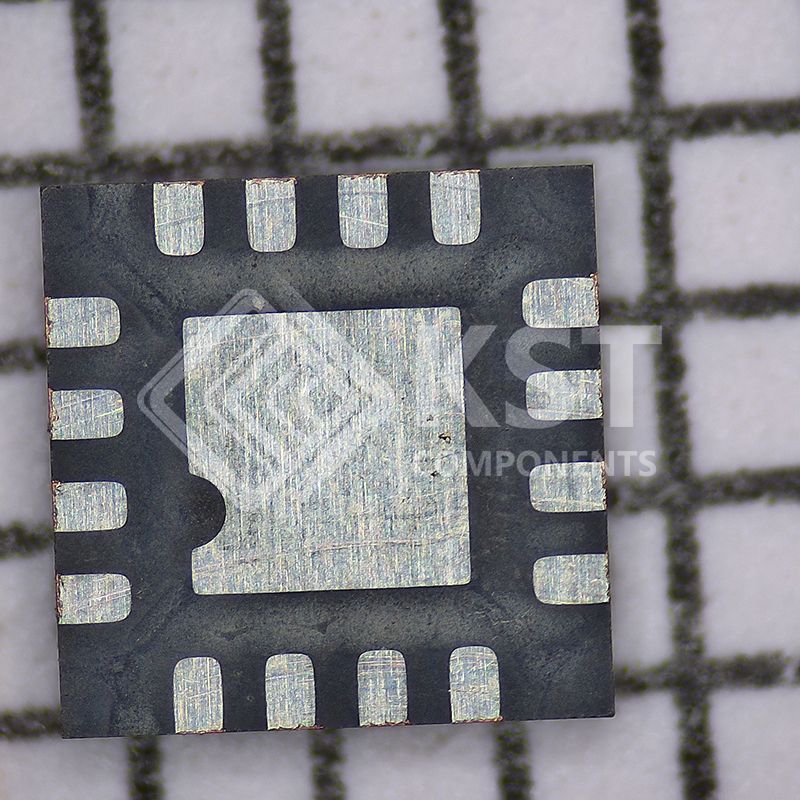

Package / Case |
16-UFQFN Exposed Pad
|
|
|
Size / Dimension |
0.118" L x 0.118" W (3.00mm x 3.00mm)
|
|
|
Height |
0.028" (0.70mm)
|
|
|
Base Product Number |
ECLAMP2357 |
