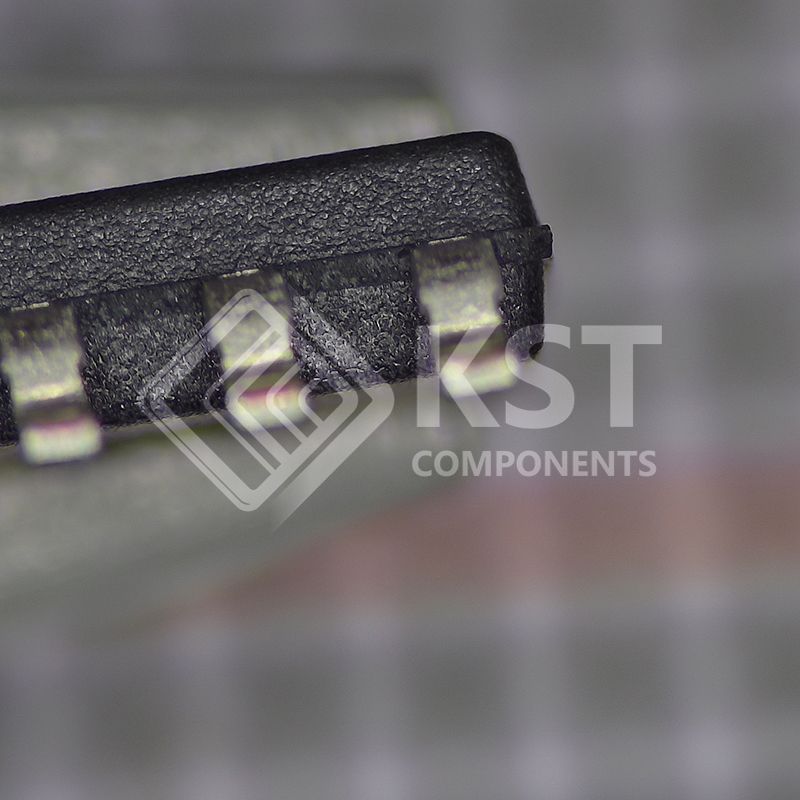

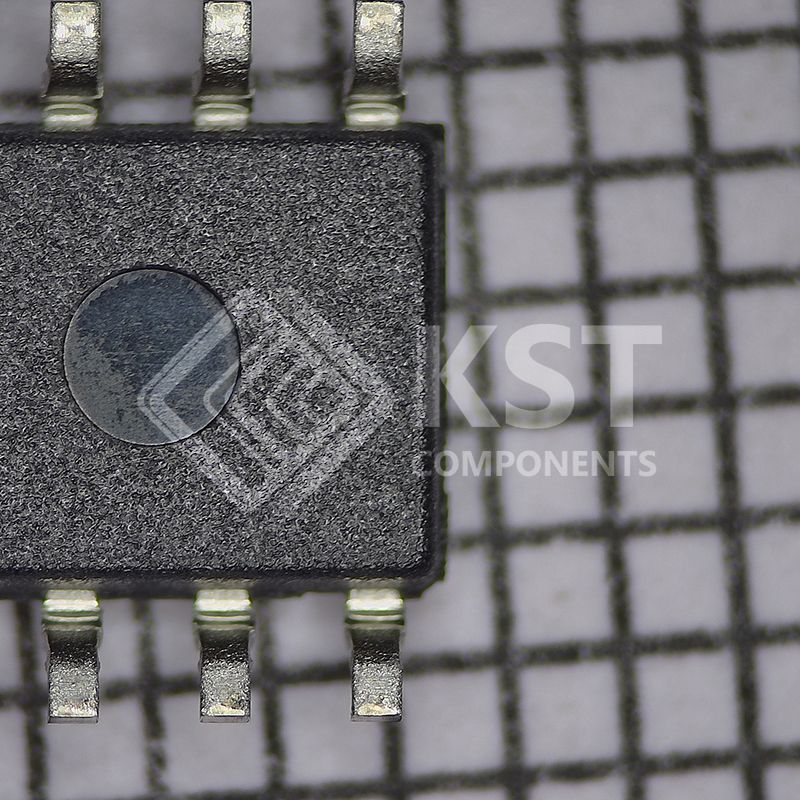

DMP4047SSD-13
Part Number:
DMP4047SSD-13
Product Classification:
Specialty Transformers
Manufacturer:
BZBGEAR
Description:
Diodes Incorporated
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Diodes Incorporated
|
|
|
Series |
-
|
|
|
Packaging |

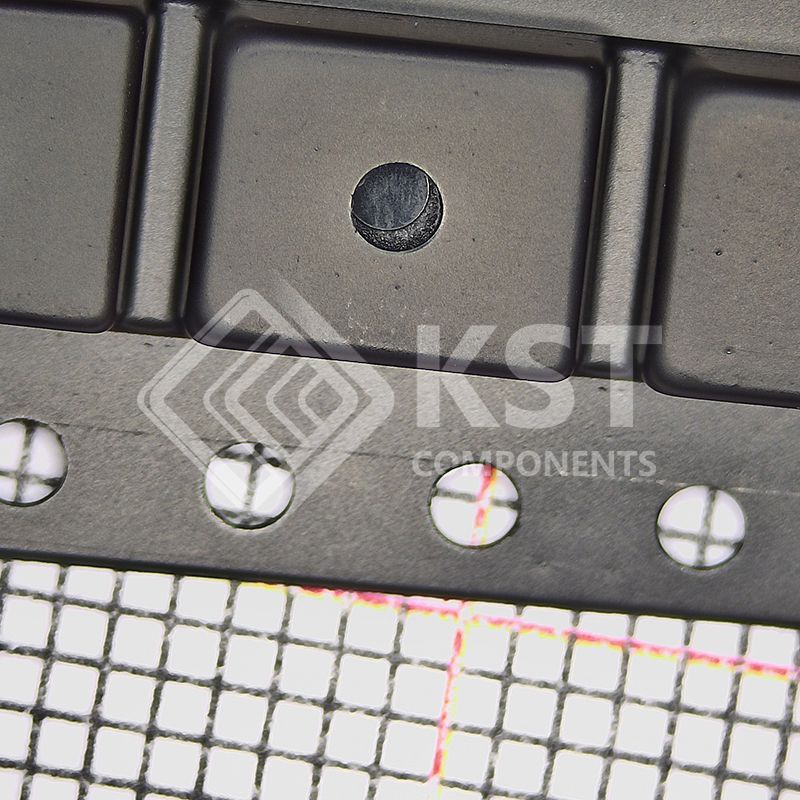

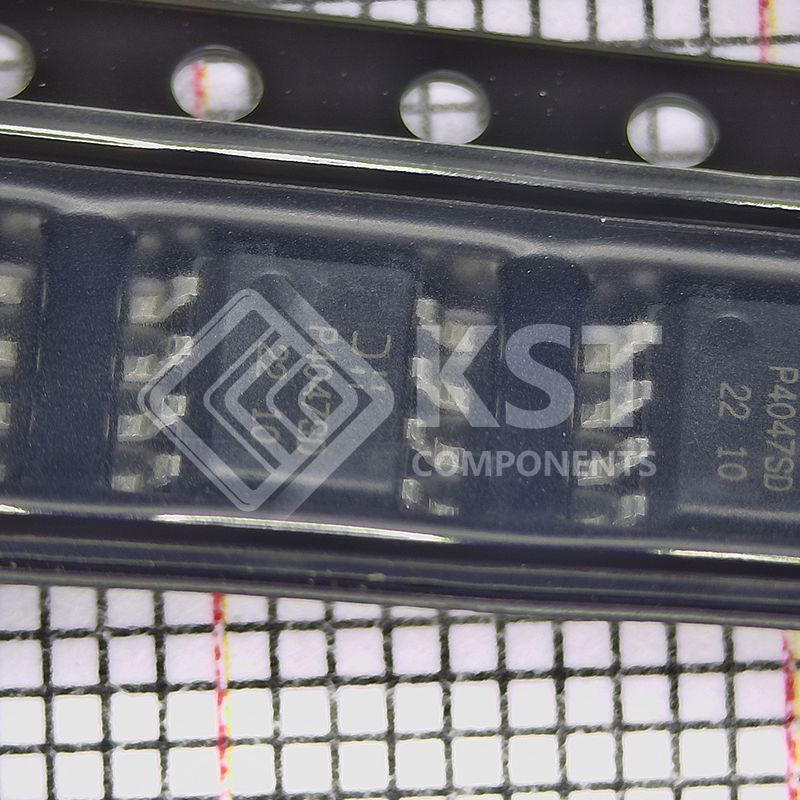

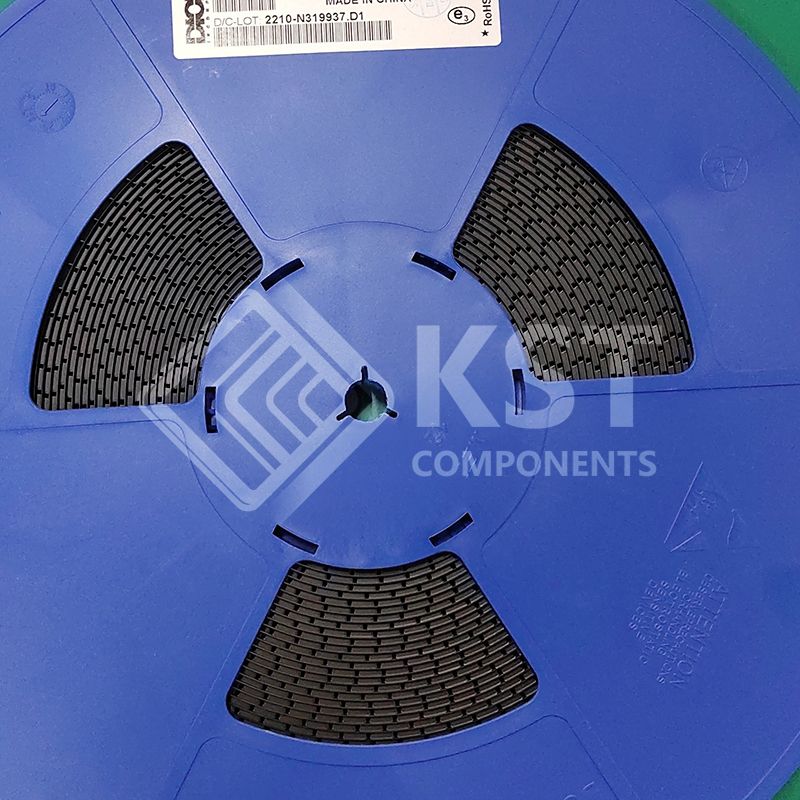

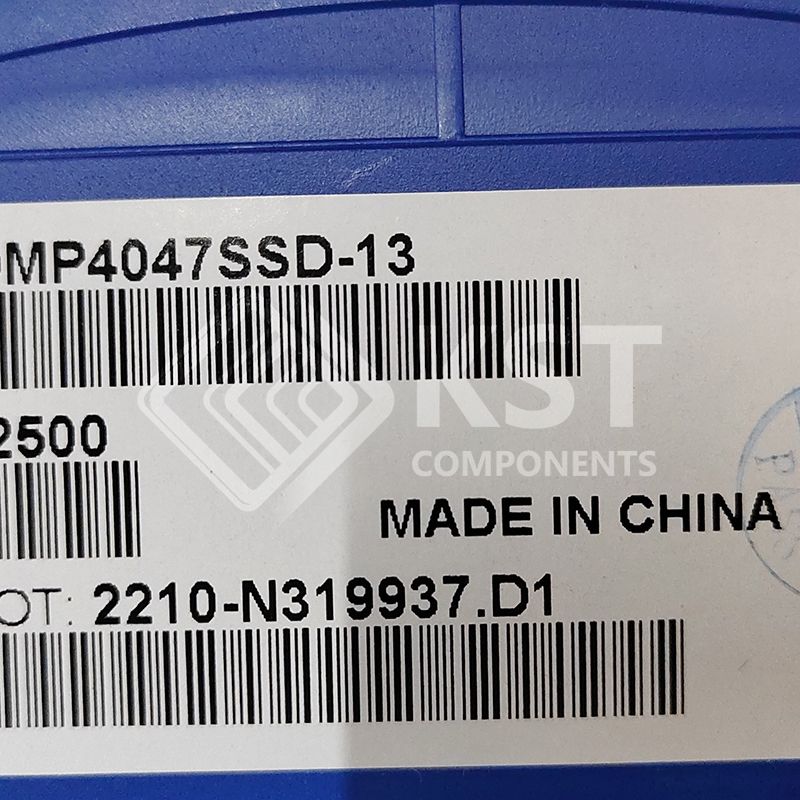

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 P-Channel (Dual)
|
|
|
FET Feature |
Logic Level Gate
|
|
|
Drain to Source Voltage (Vdss) |
40V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
5.1A
|
|
|
Rds On (Max) @ Id, Vgs |
45mOhm @ 4.4A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
21.5nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1154pF @ 20V
|
|
|
Power - Max |
1.3W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

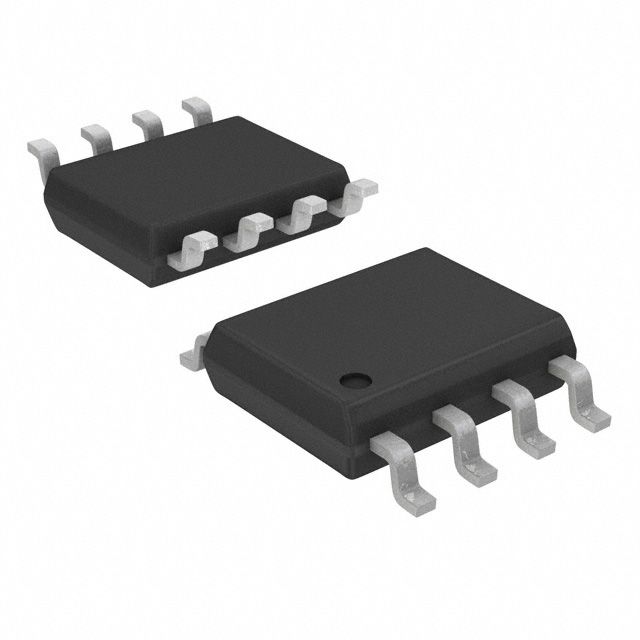

8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SO
|
|
|
Base Product Number |
DMP4047 |
