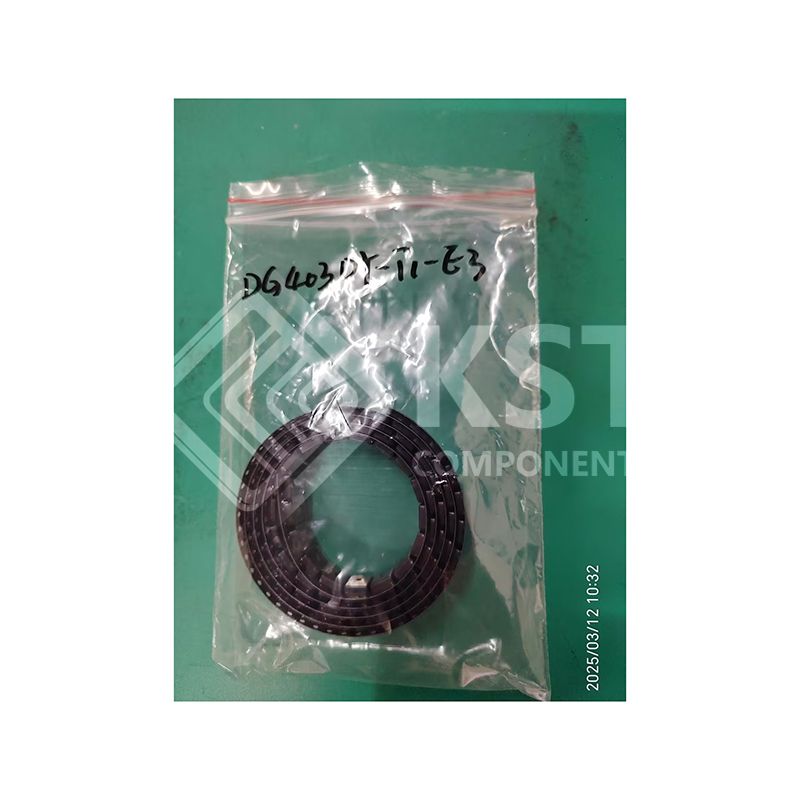

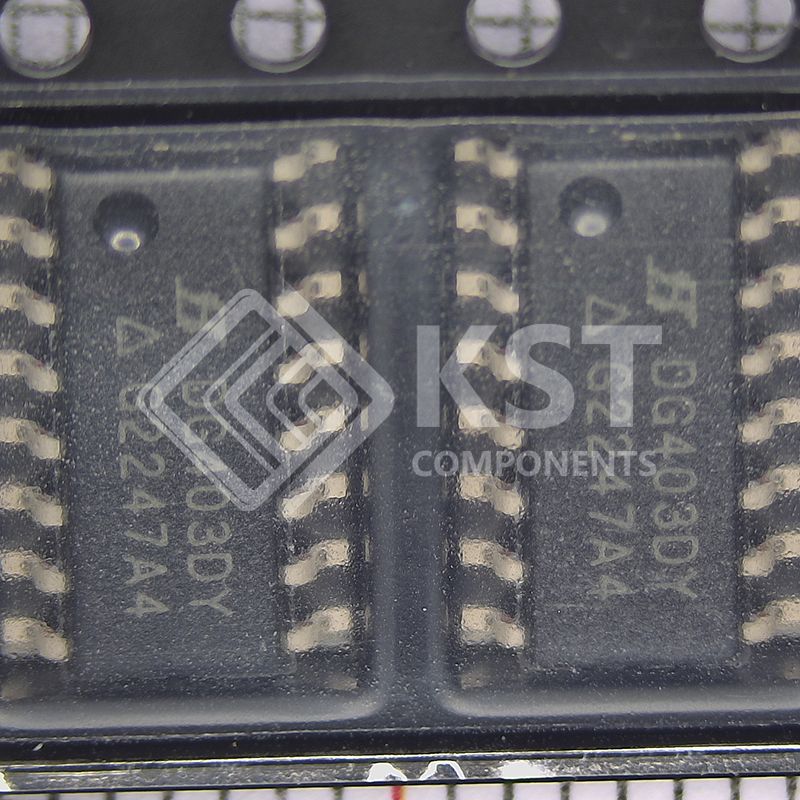

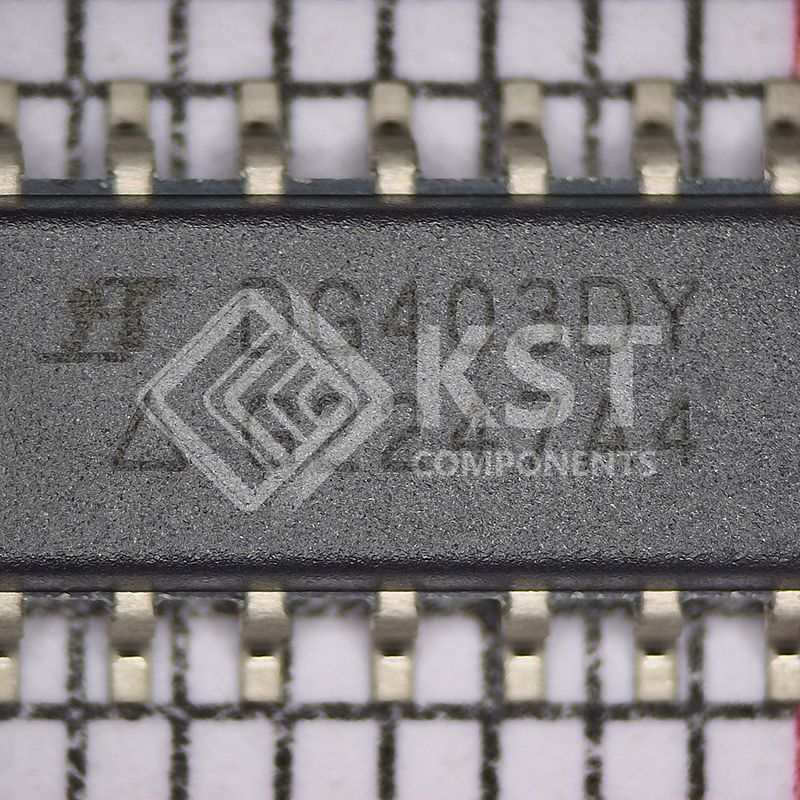

DG403DY-T1-E3
Part Number:
DG403DY-T1-E3
Product Classification:
Accessories
Manufacturer:
2J Antennas
Description:
IC SW SPST-NO/NCX2 45OHM 16SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Interface
Analog Switches, Multiplexers, Demultiplexers
|
|
|
Manufacturer |
Vishay Siliconix
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Circuit |
SPST - NO/NC
|
|
|
Multiplexer/Demultiplexer Circuit |
1:1
|
|
|
Number of Circuits |
2
|
|
|
On-State Resistance (Max) |
45Ohm
|
|
|
Channel-to-Channel Matching (ΔRon) |
3Ohm
|
|
|
Voltage - Supply, Single (V+) |
13V ~ 36V
|
|
|
Voltage - Supply, Dual (V±) |
±7V ~ 22V
|
|
|
Switch Time (Ton, Toff) (Max) |
150ns, 100ns
|
|
|
-3db Bandwidth |
-
|
|
|
Charge Injection |
60pC
|
|
|
Channel Capacitance (CS(off), CD(off)) |
12pF, 12pF
|
|
|
Current - Leakage (IS(off)) (Max) |
500pA
|
|
|
Crosstalk |
-90dB @ 1MHz
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
16-SOIC
|
|
|
Base Product Number |
DG403 |
