    Part Number: CPB9406-0109E
    Product Classification: External/Internal Power Supply Accessories
    Manufacturer: Acconeer AB
    Description: - Board-to-Board and Backplane Connector ROHS
    Packaging: -
    ROHS Status: No
    Currency: USD
    Series FB-4
    Product Name FPC to Board Connector
    Parts No. CPB9406-0101F
    Outline・Feature
    • 1. Large current connector for battery.
    • 2. Highly reliable and stable connection using SMK´s unique contact structure.
    • 3. High retention force by SMK´s unique locking mechanism on the contact terminal and hold-down.
    • 4. Power terminal supports 10A current (when using 4pins for power).
    • 5. Multiple pin count with 6pins satisfies the need of multifunctional battery (Power : 4Pin, Signal : 2Pin).
    • 6. Low profile design with 0.9mm mating height, 2.8mm width and 6.0mm depth.
    • 7. Country of Origin：Japan
    Application Mobile phones, Smartphone, digital camera, other mobile equipment
    Standard －
    External Dimension Width: 6.0mm　Depth: 2.8mm　Height: 0.9mm

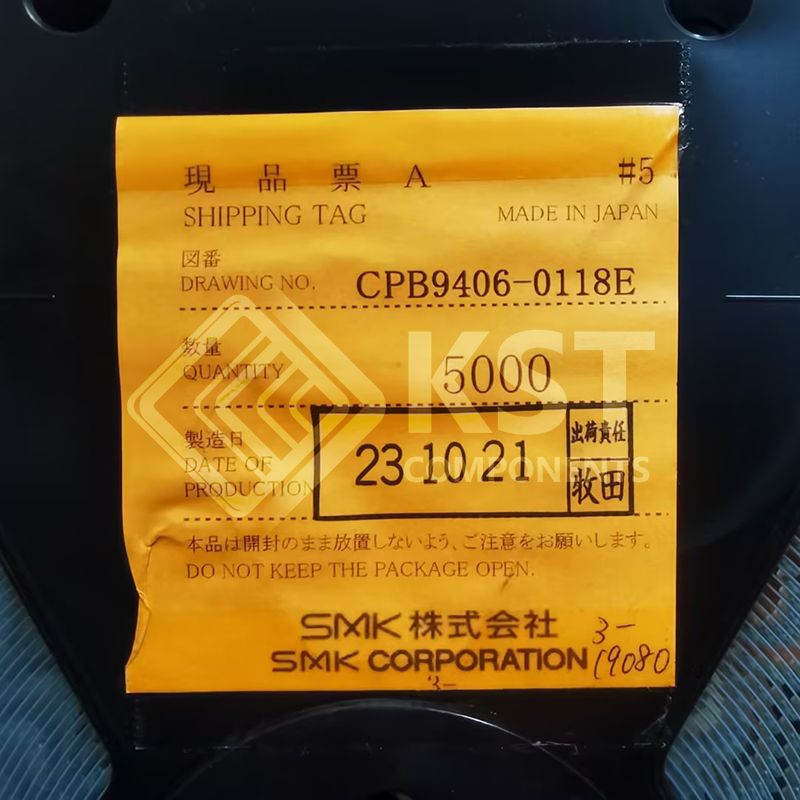

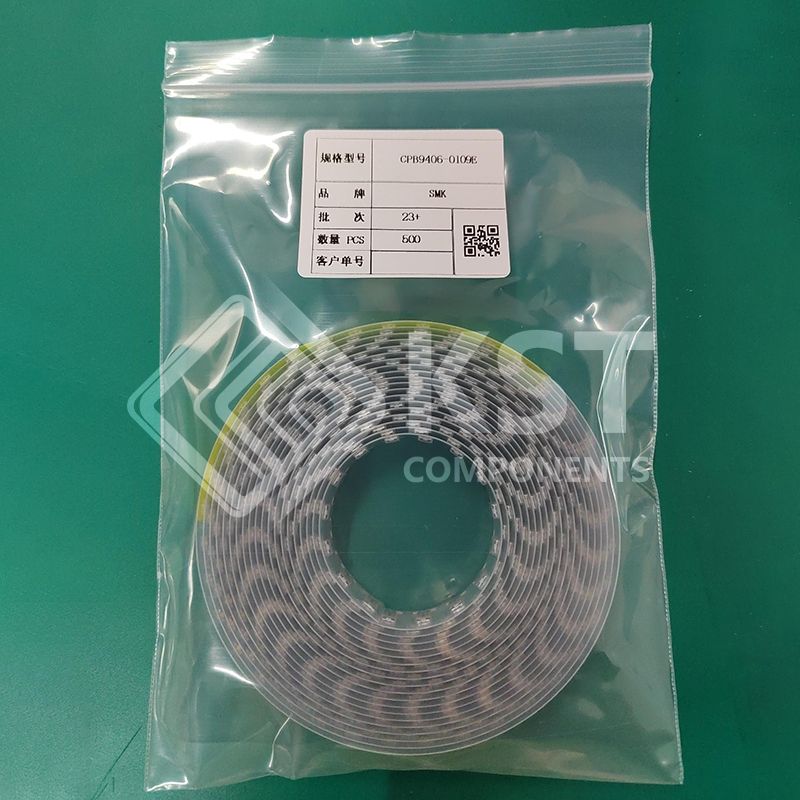

    Packaging Emboss Taping（5,000 pcs／reel）
    Pitch 1.3mm
    Mating Height 0.9mm
    Number of Pins 6
    Rating AC/DC 30V 4.0A(Power Pin)/1.0A(Signal Pin)
    Contact Resistance 20mΩ Max.
    Insulation Resistance DC200V 1,000MΩ Min.
    Withstanding Voltage AC500V (for one minute)
    Operating Temperature Range －25℃ ～ ＋85℃
    Socket Housing Thermoplastic Resin
    Socket Contact Cu Alloy, Au Plating
    Socket Hold Down Cu Alloy,Sn Alloy Plating
    Plug Housing －
    Plug Contact －
    Plug Hold Down －
    Socket/Plug Socket
    Hold Down with
