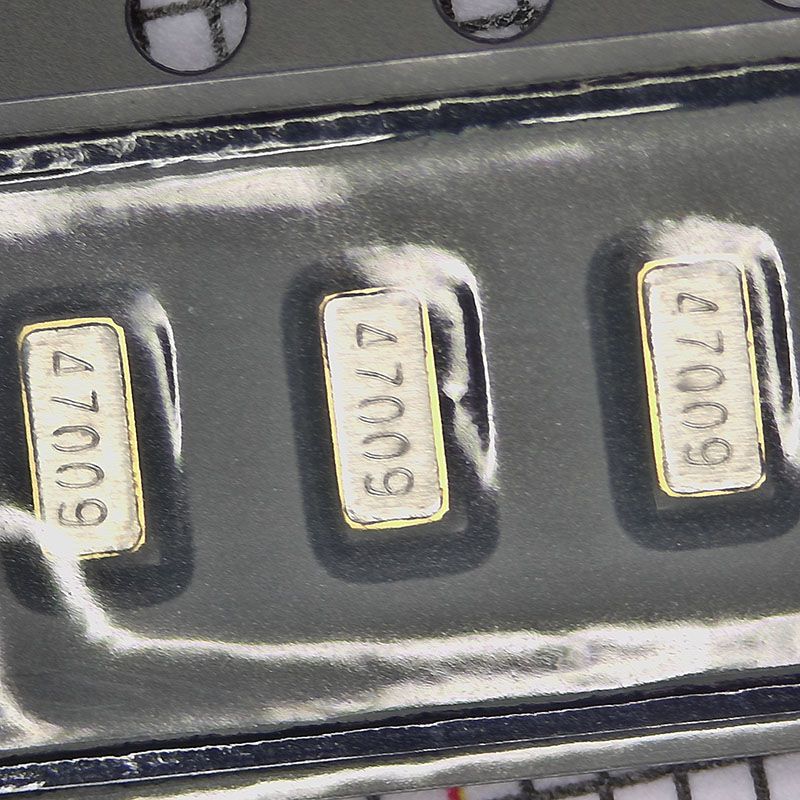

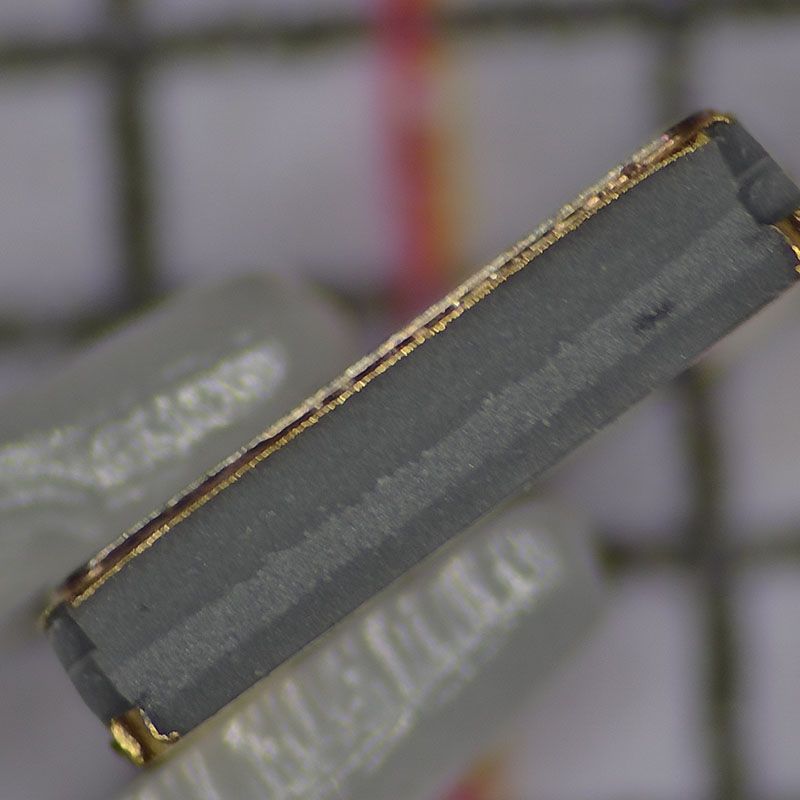

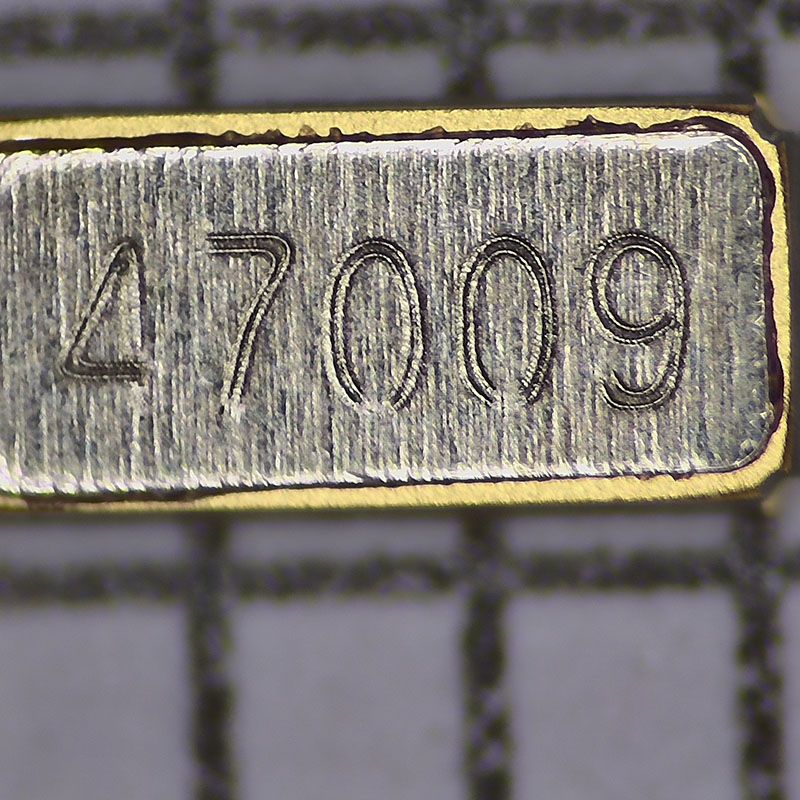

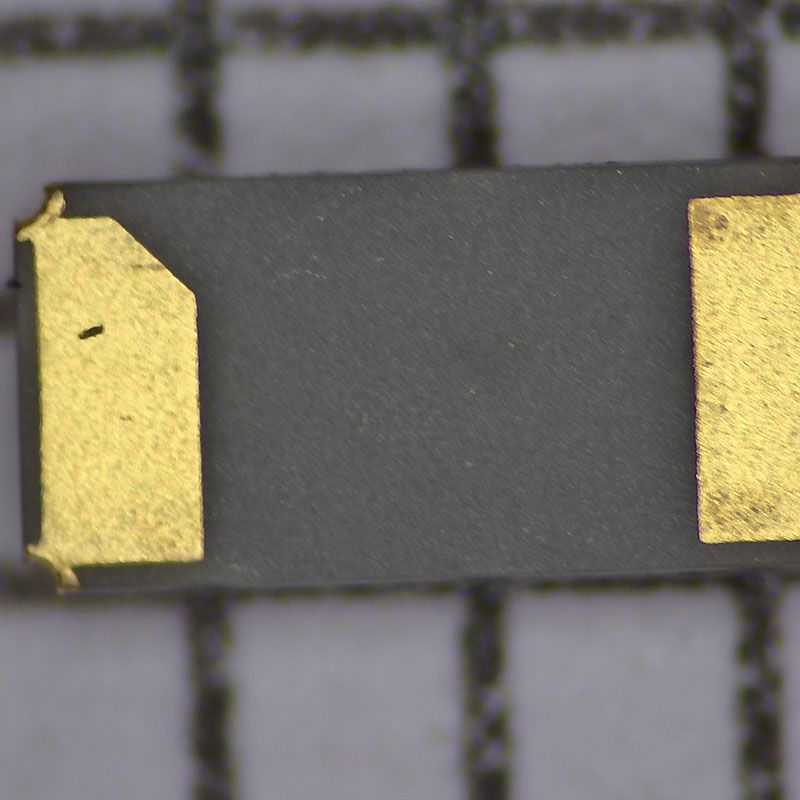

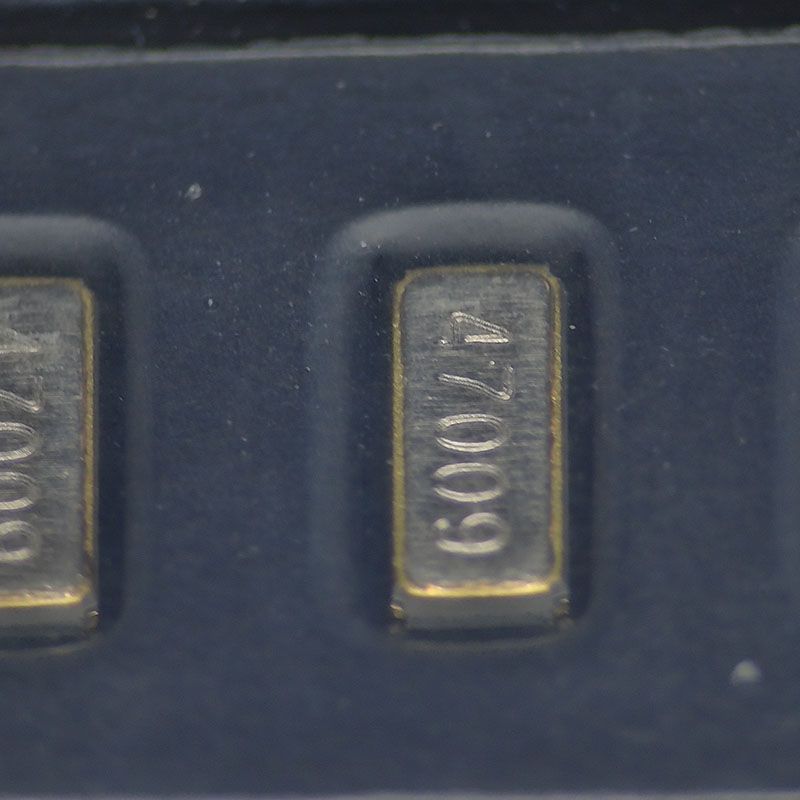

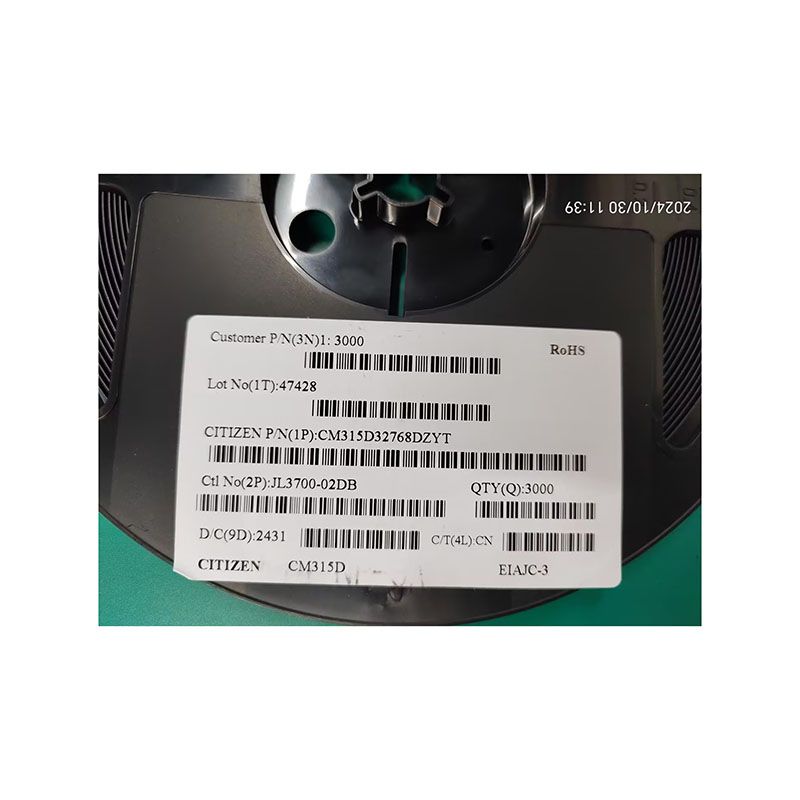

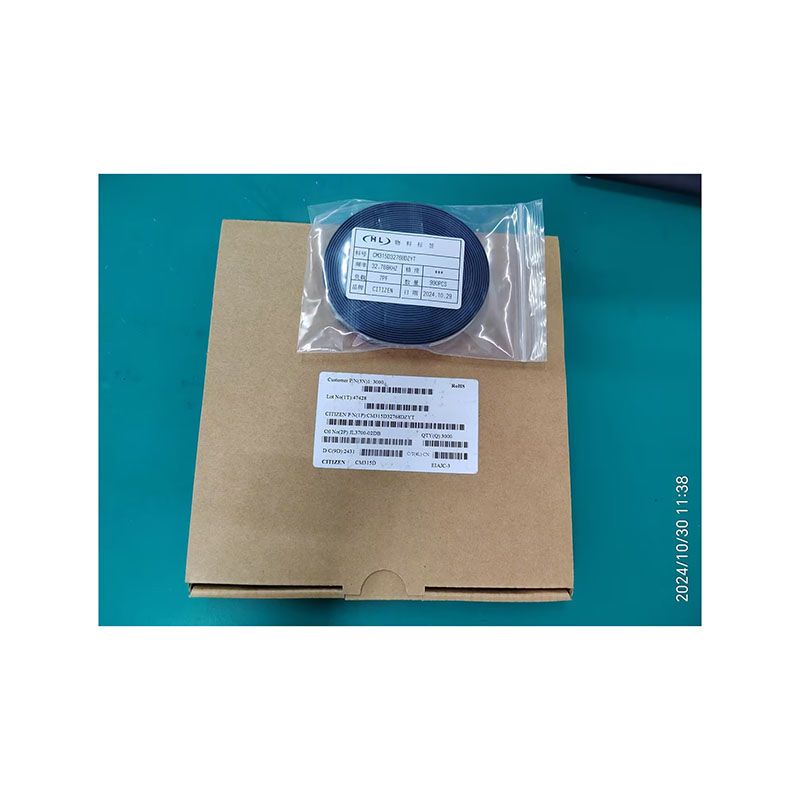

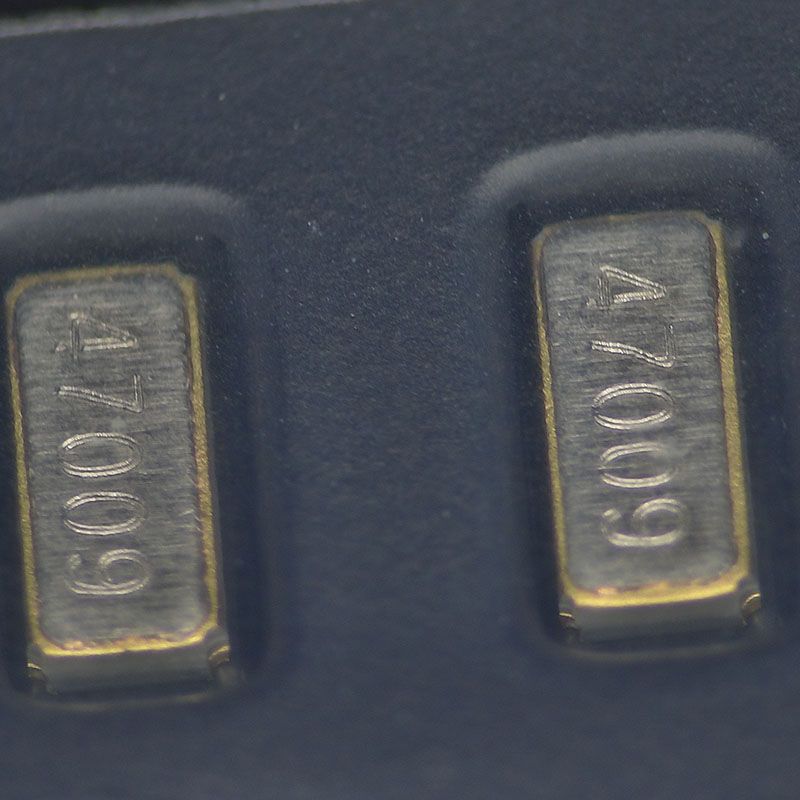

CM315D32768DZYT
Part Number:
CM315D32768DZYT
Product Classification:
AC DC Configurable Power Supply Modules
Manufacturer:
ATEKMIDAS
Description:
CRYSTAL 32.7680KHZ 7PF SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Crystals, Oscillators, Resonators
Crystals
|
|
|
Mfr |
Citizen Finedevice Co Ltd |
|
|
Series |
CM315D |
|
|
Packaging |

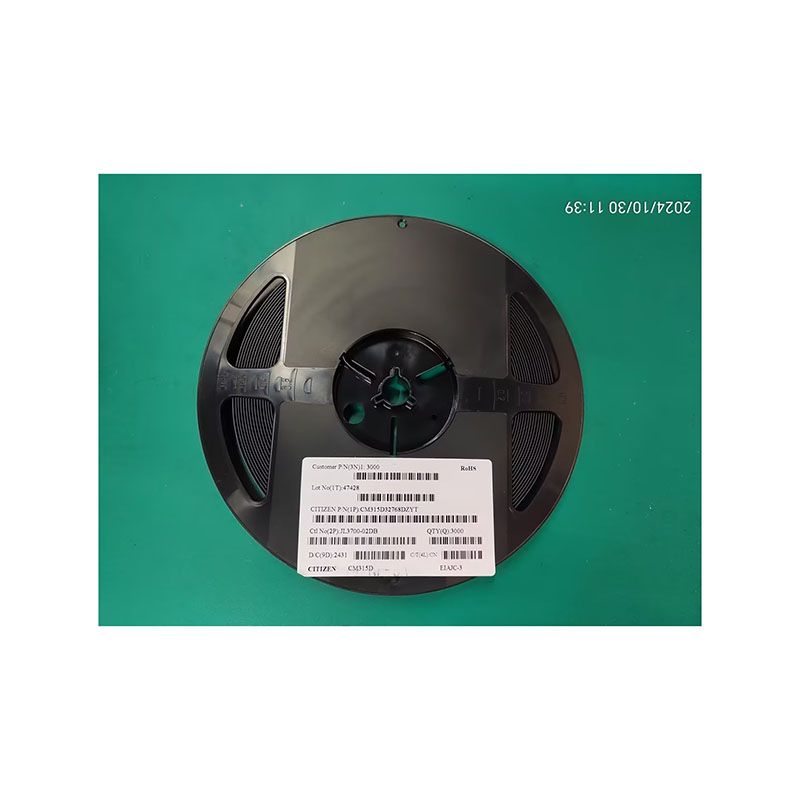

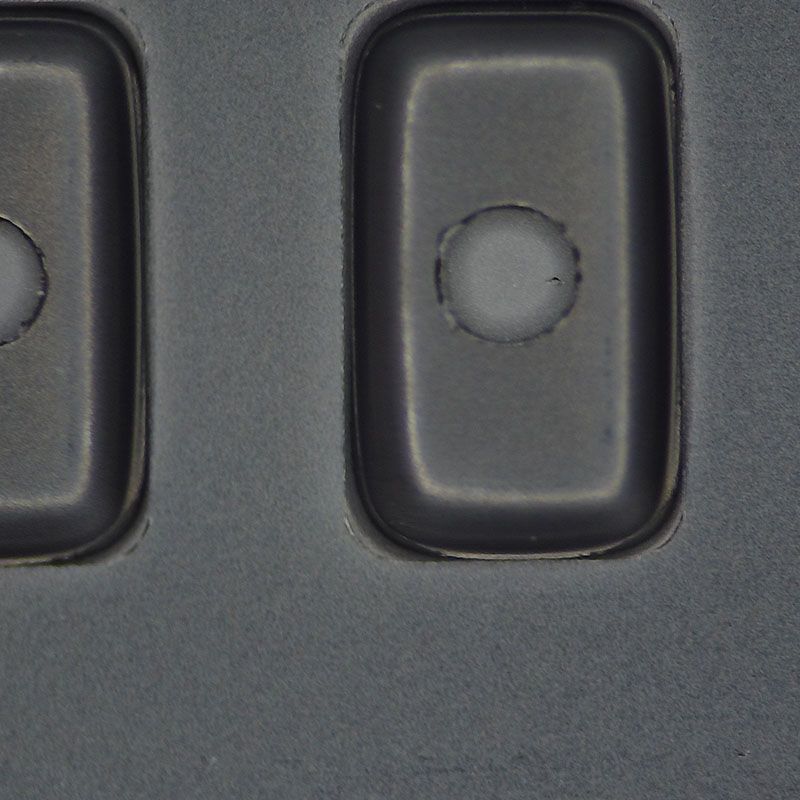

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
kHz Crystal (Tuning Fork)
|
|
|
Frequency |
32.768 kHz
|
|
|
Frequency Stability |
-
|
|
|
Frequency Tolerance |
±20ppm
|
|
|
Load Capacitance |
7pF
|
|
|
ESR (Equivalent Series Resistance) |
70 kOhms
|
|
|
Operating Mode |
Fundamental
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
2-SMD, No Lead |
|
|
Size / Dimension |
0.126" L x 0.059" W (3.20mm x 1.50mm)
|
|
|
Height - Seated (Max) |
0.035" (0.90mm)
|
