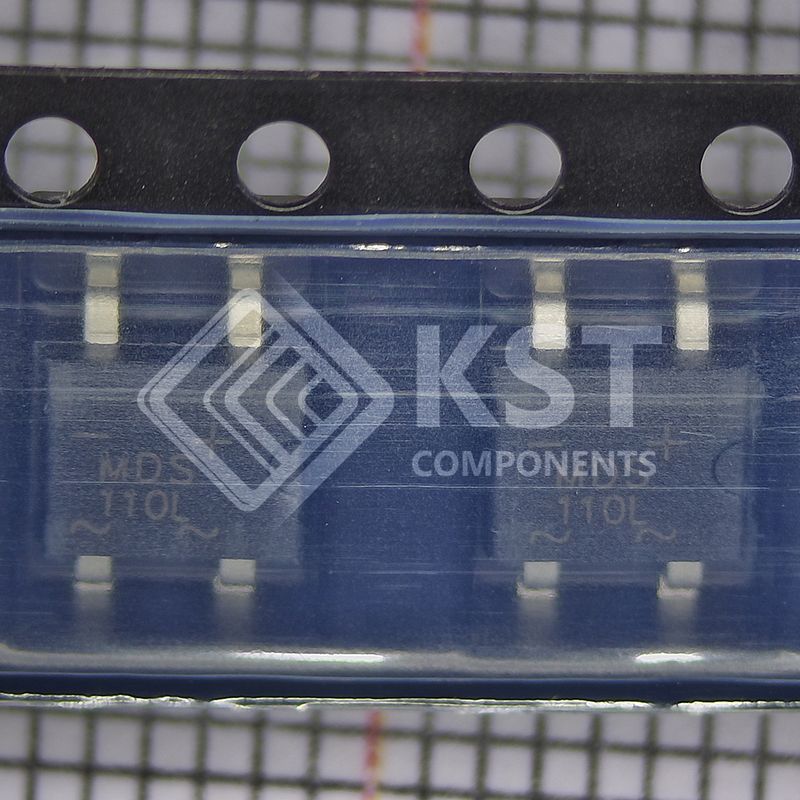

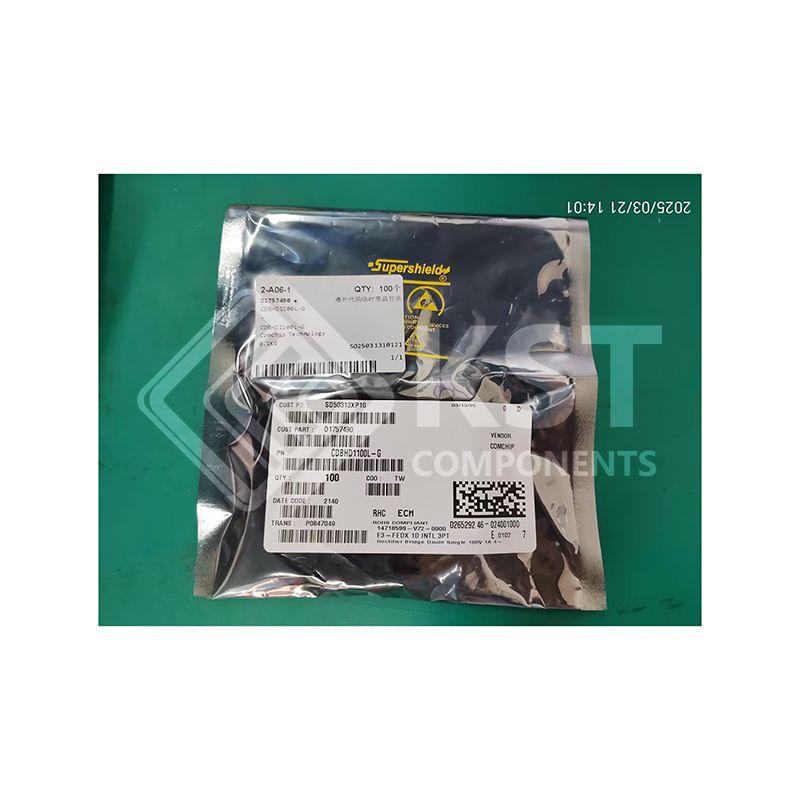

CDBHD1100L-G
Part Number:
CDBHD1100L-G
Product Classification:
Toggle Switches
Manufacturer:
Bertech
Description:
BRIDGE RECT 1P 100V 1A MINI-DIP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Bridge Rectifiers
|
|
|
Manufacturer |
Comchip Technology
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Not For New Designs
|
|
|
Diode Type |
Single Phase
|
|
|
Technology |
Schottky
|
|
|
Voltage - Peak Reverse (Max) |
100 V
|
|
|
Current - Average Rectified (Io) |
1 A
|
|
|
Voltage - Forward (Vf) (Max) @ If |
750 mV @ 1 A
|
|
|
Current - Reverse Leakage @ Vr |
500 µA @ 100 V
|
|
|
Operating Temperature |
-55°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-269AA, 4-BESOP
|
|
|
Supplier Device Package |
Mini-Dip (TO-269AA)
|
|
|
Base Product Number |
CDBHD1100 |
