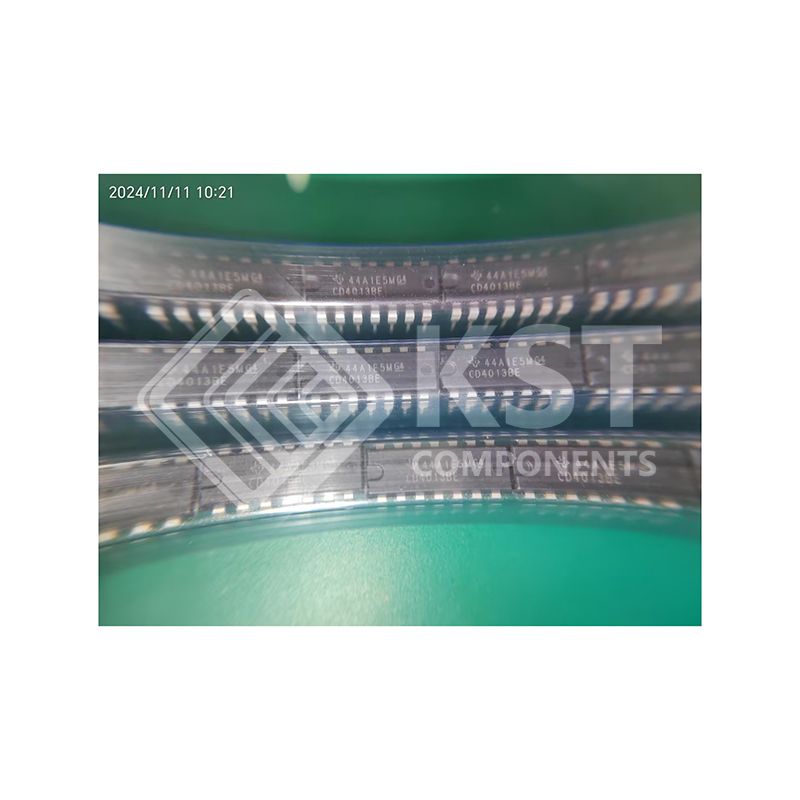

CD4013BE
Part Number:
CD4013BE
Product Classification:
Electrical, Specialty Fuses
Manufacturer:
3PEAK
Description:
IC FF D-TYPE DUAL 1BIT 14DIP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Flip Flops
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
4000B |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Function |
Set(Preset) and Reset
|
|
|
Type |
D-Type
|
|
|
Output Type |
Complementary
|
|
|
Number of Elements |
2
|
|
|
Number of Bits per Element |
1
|
|
|
Clock Frequency |
24 MHz
|
|
|
Max Propagation Delay @ V, Max CL |
90ns @ 15V, 50pF
|
|
|
Trigger Type |
Positive Edge
|
|
|
Current - Output High, Low |
6.8mA, 6.8mA
|
|
|
Voltage - Supply |
3V ~ 18V
|
|
|
Current - Quiescent (Iq) |
4 µA
|
|
|
Input Capacitance |
5 pF
|
|
|
Operating Temperature |
-55°C ~ 125°C (TA)
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
14-PDIP
|
|
|
Package / Case |
14-DIP (0.300", 7.62mm)
|
|
|
Base Product Number |
CD4013 |
