BSN20-7
Part Number:
BSN20-7
Product Classification:
Specialty Transformers
Manufacturer:
Accuenergy
Description:
MOSFET N-CH 50V 500MA SOT23
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |

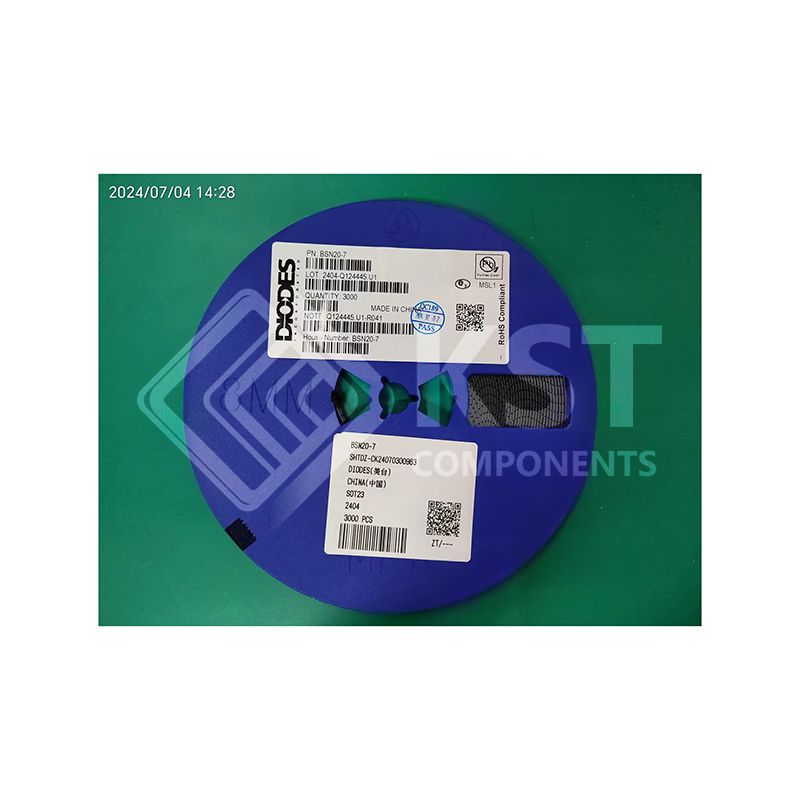

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
50 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
500mA (Ta) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
1.8Ohm @ 220mA, 10V
|
|
|
Vgs(th) (Max) @ Id |
1.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
0.8 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
40 pF @ 10 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
600mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-3
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
BSN20 |
