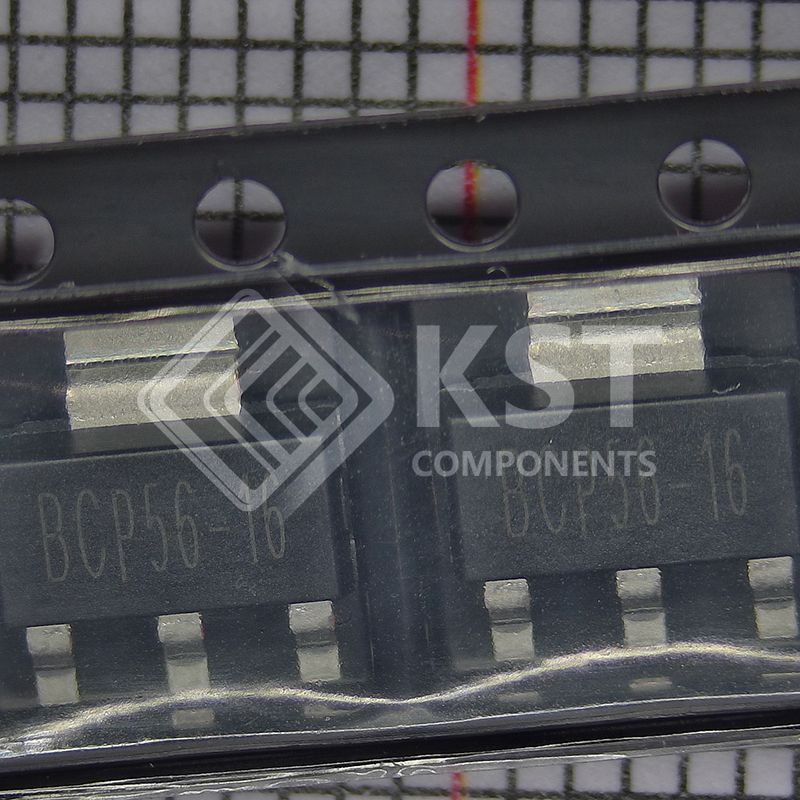

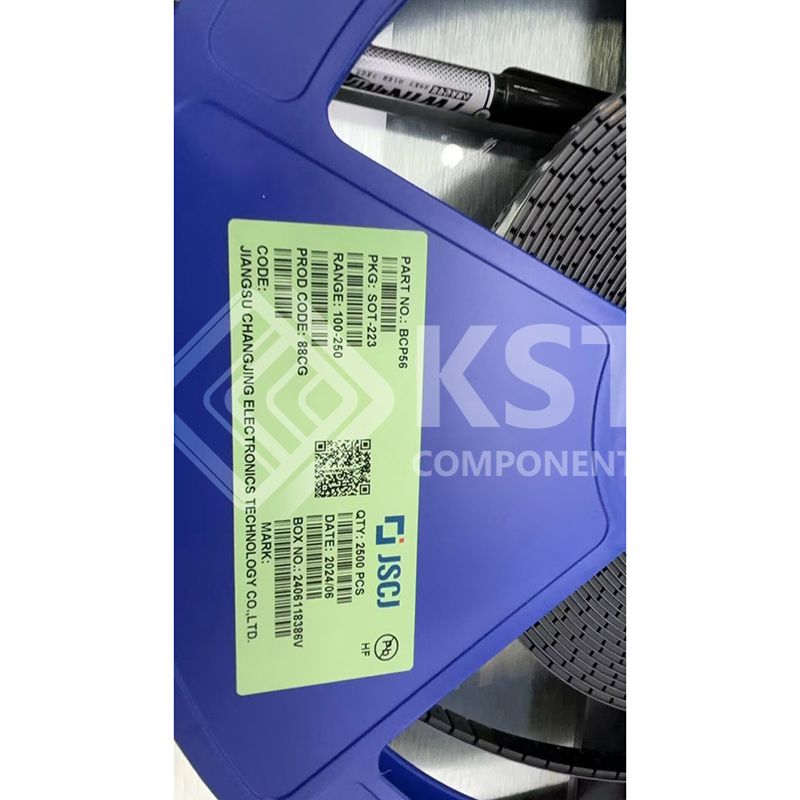

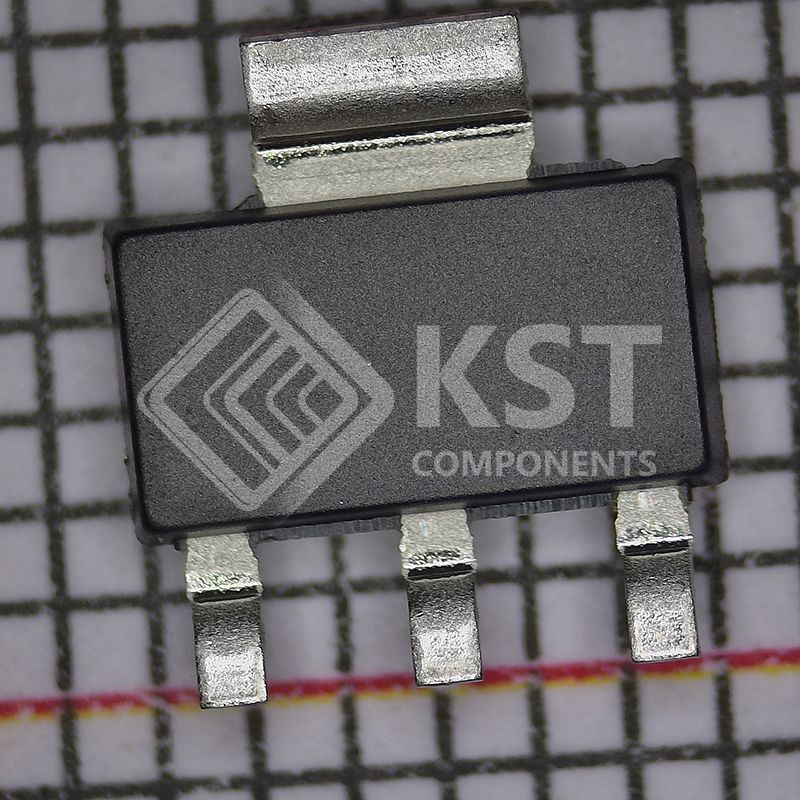

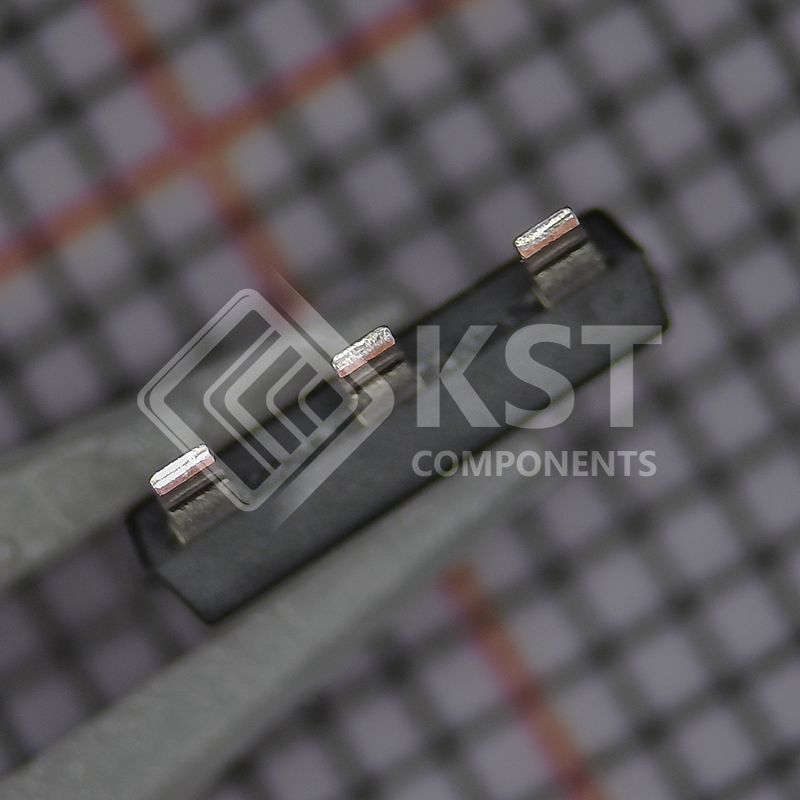

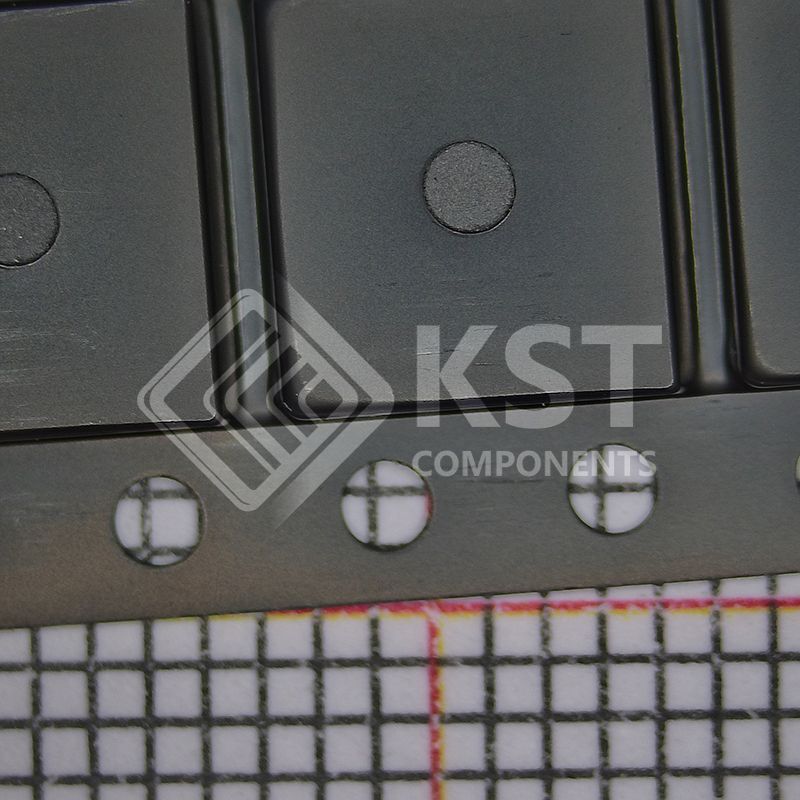

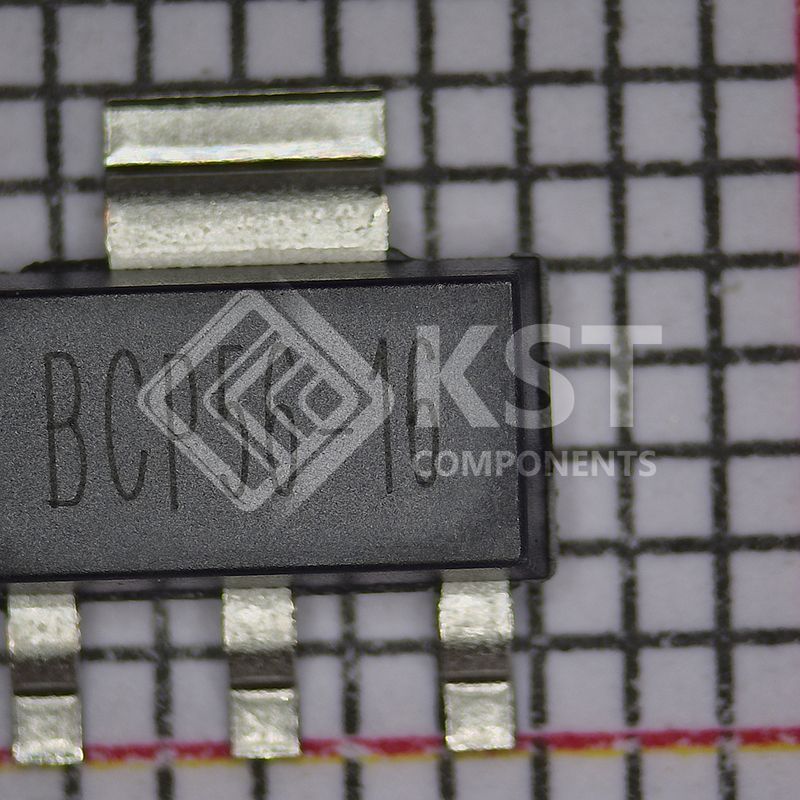

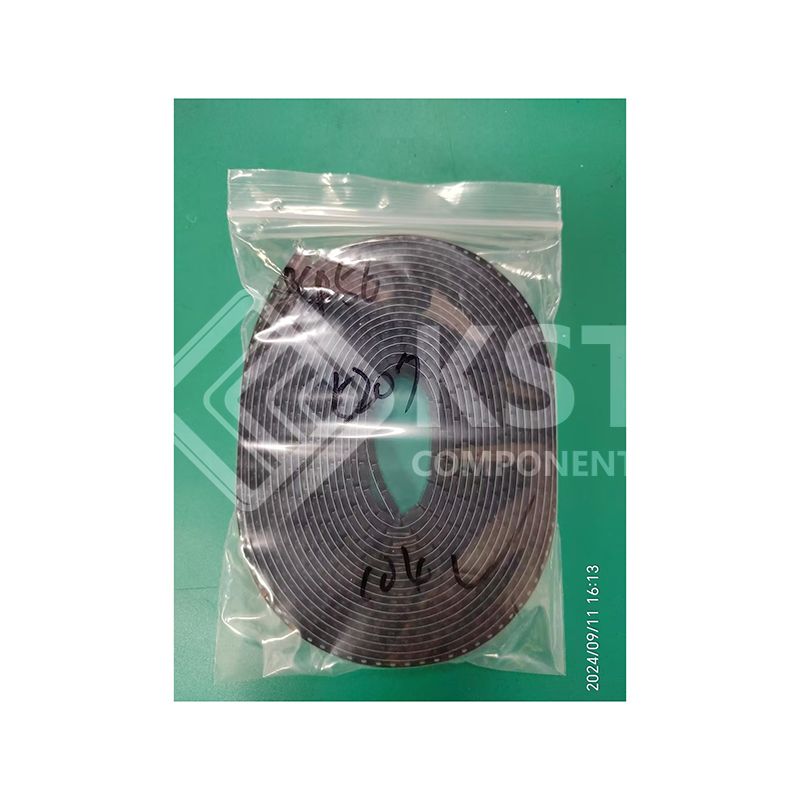

BCP56
Part Number:
BCP56
Product Classification:
Specialty Transformers
Manufacturer:
ADDA USA
Description:
TRANS NPN 80V 1.2A SOT223-4
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Obsolete
|
|
|
Transistor Type |
NPN |
|
|
Current - Collector (Ic) (Max) |
1.2 A
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
80 V
|
|
|
Vce Saturation (Max) @ Ib, Ic |
500mV @ 50mA, 500mA
|
|
|
Current - Collector Cutoff (Max) |
100nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
40 @ 150mA, 2V
|
|
|
Power - Max |
1 W
|
|
|
Frequency - Transition |
-
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-261-4, TO-261AA
|
|
|
Supplier Device Package |
SOT-223-4
|
|
|
Base Product Number |
BCP56 |
