BC847B
Part Number:
BC847B
Product Classification:
Specialty Transformers
Manufacturer:
ARTESYN / Advanced Energy
Description:
TRANS NPN 45V 0.1A SOT23-3
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr |
Diotec Semiconductor |
|
|
Series |
-
|
|
|
Packaging |

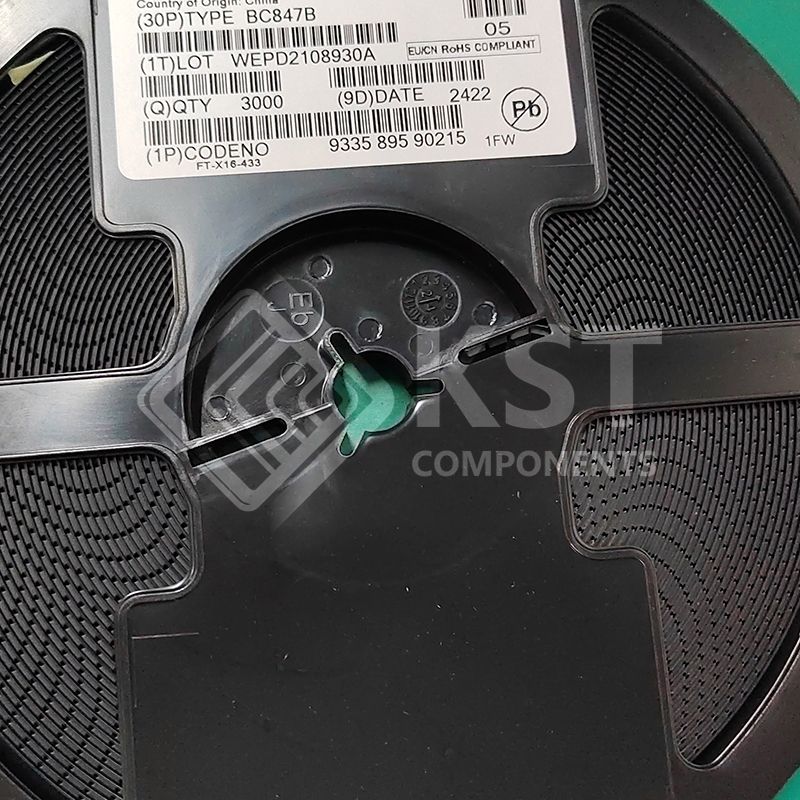

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Transistor Type |
NPN |
|
|
Current - Collector (Ic) (Max) |
100 mA
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
45 V
|
|
|
Vce Saturation (Max) @ Ib, Ic |
600mV @ 5mA, 100mA
|
|
|
Current - Collector Cutoff (Max) |
100nA
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
200 @ 2mA, 5V
|
|
|
Power - Max |
250 mW
|
|
|
Frequency - Transition |
300MHz
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
SOT-23-3 (TO-236)
|
