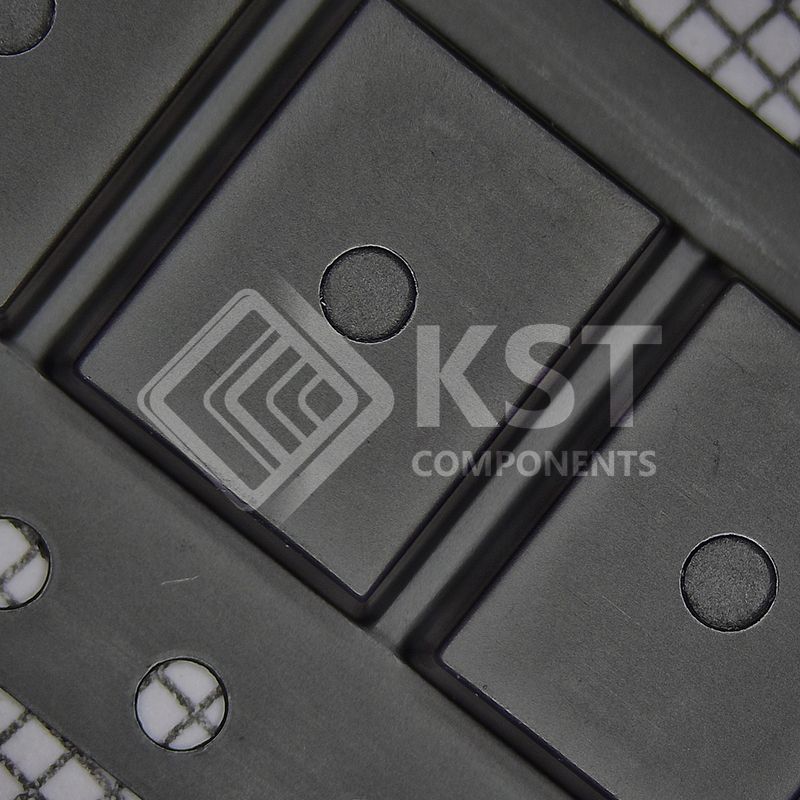

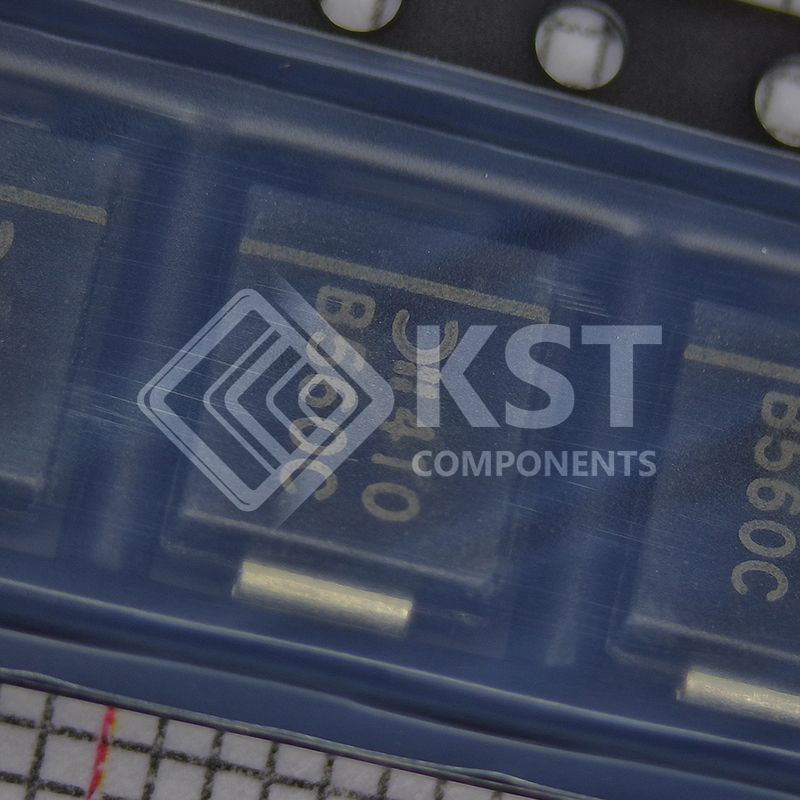

B560C-13-F
Part Number:
B560C-13-F
Product Classification:
Toggle Switches
Manufacturer:
Accuenergy
Description:
DIODE SCHOTTKY 60V 5A SMC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Schottky |
|
|
Voltage - DC Reverse (Vr) (Max) |
60 V
|
|
|
Current - Average Rectified (Io) |
5A
|
|
|
Voltage - Forward (Vf) (Max) @ If |
700 mV @ 5 A
|
|
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io)
|
|
|
Current - Reverse Leakage @ Vr |
500 µA @ 60 V
|
|
|
Capacitance @ Vr, F |
300pF @ 4V, 1MHz
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
DO-214AB, SMC |
|
|
Supplier Device Package |
SMC
|
|
|
Operating Temperature - Junction |
-55°C ~ 150°C
|
|
|
Base Product Number |
B560 |
