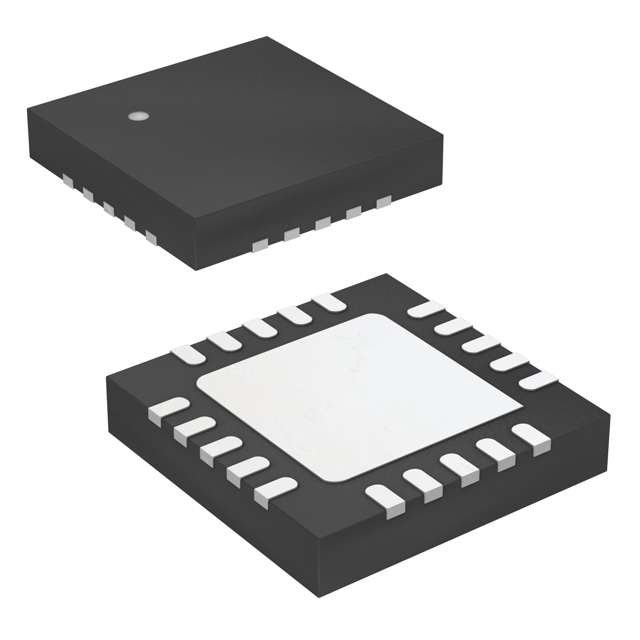

ATTINY24A-MU
Part Number:
ATTINY24A-MU
Product Classification:
Audio Transformers
Manufacturer:
3RLab
Description:
IC MCU 8BIT 2KB FLASH 20QFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
|
Mfr |
Microchip Technology |
|
|
Series |
AVR® ATtiny |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Verified
|
|
|
Core Processor |
AVR
|
|
|
Core Size |
8-Bit
|
|
|
Speed |
20MHz
|
|
|
Connectivity |
USI
|
|
|
Peripherals |
Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
|
|
|
Number of I/O |
12
|
|
|
Program Memory Size |
2KB (1K x 16) |
|
|
Program Memory Type |
FLASH
|
|
|
EEPROM Size |
128 x 8
|
|
|
RAM Size |
128 x 8
|
|
|
Voltage - Supply (Vcc/Vdd) |
1.8V ~ 5.5V
|
|
|
Data Converters |
A/D 8x10b
|
|
|
Oscillator Type |
Internal
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
20-QFN-EP (4x4)
|
|
|
Package / Case |
20-WFQFN Exposed Pad
|
|
|
Base Product Number |
ATTINY24 |
