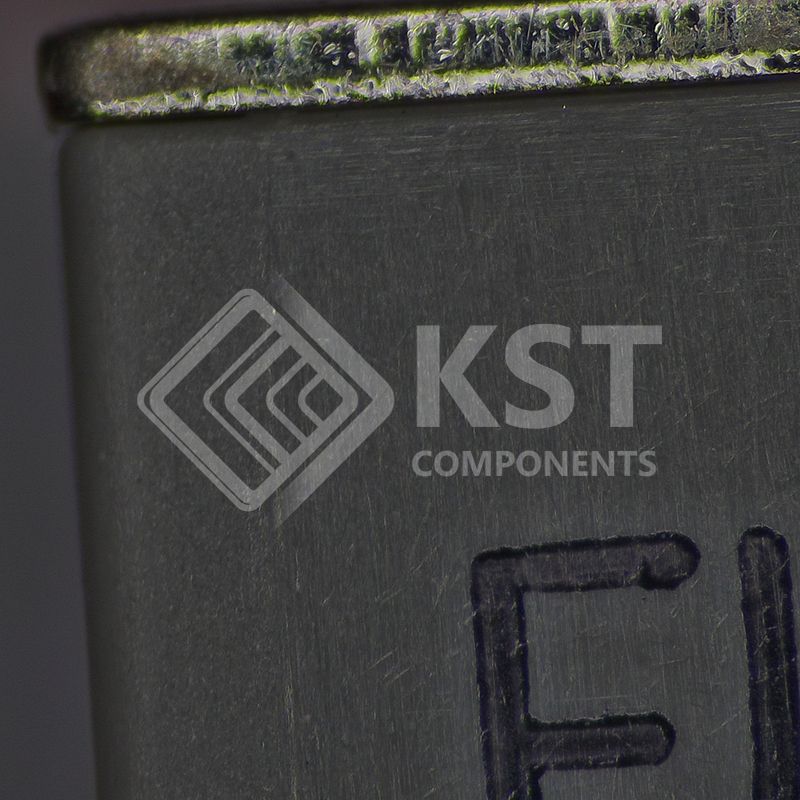

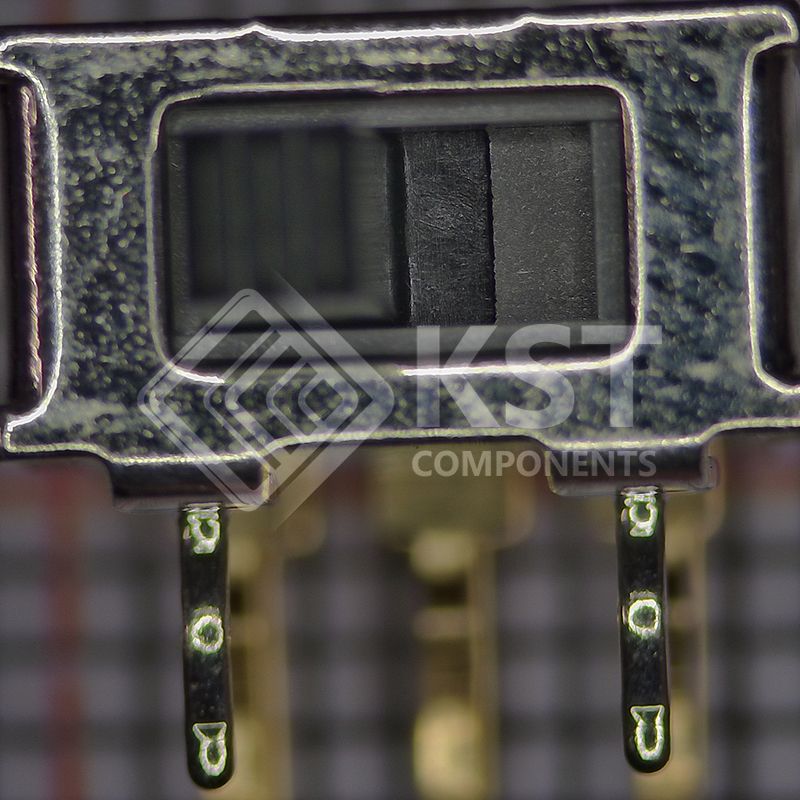

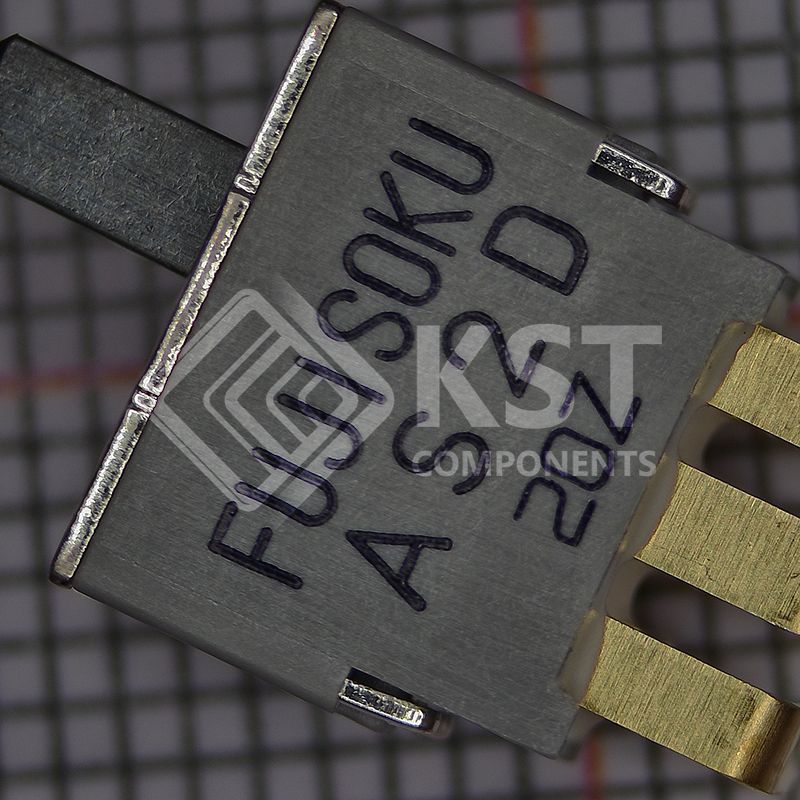

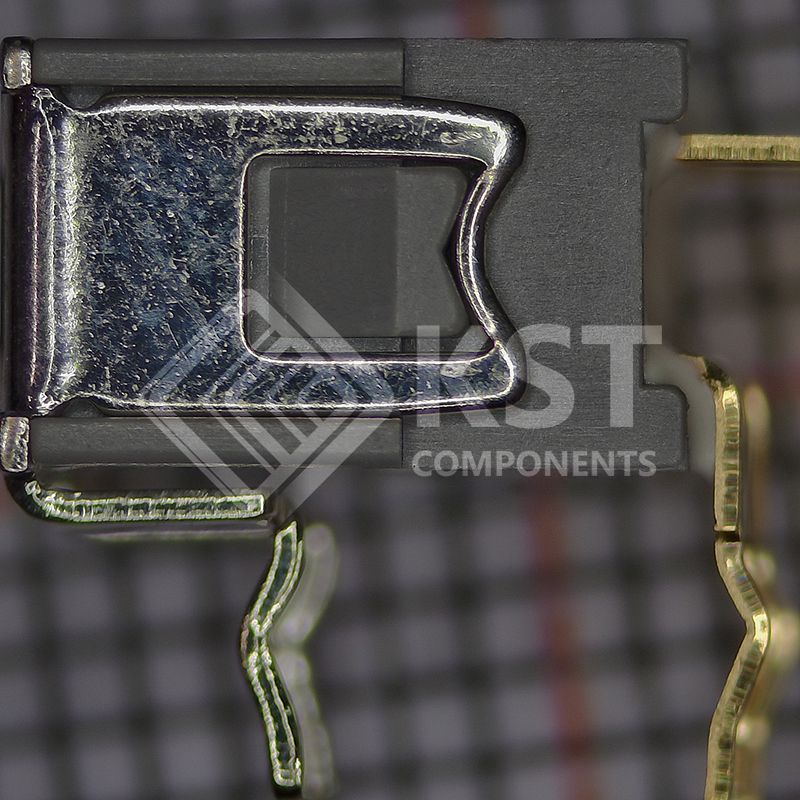

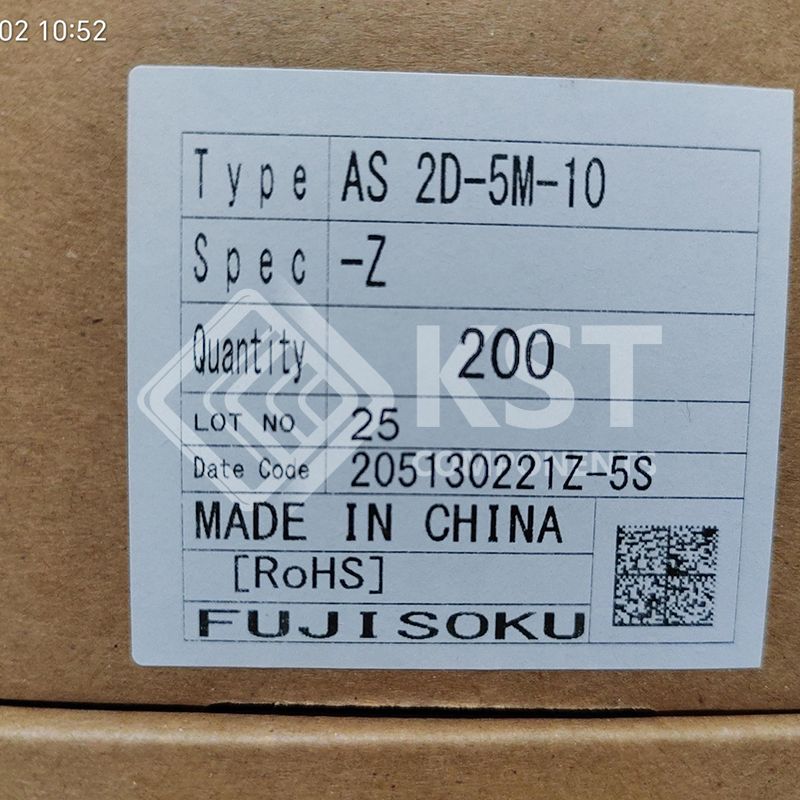

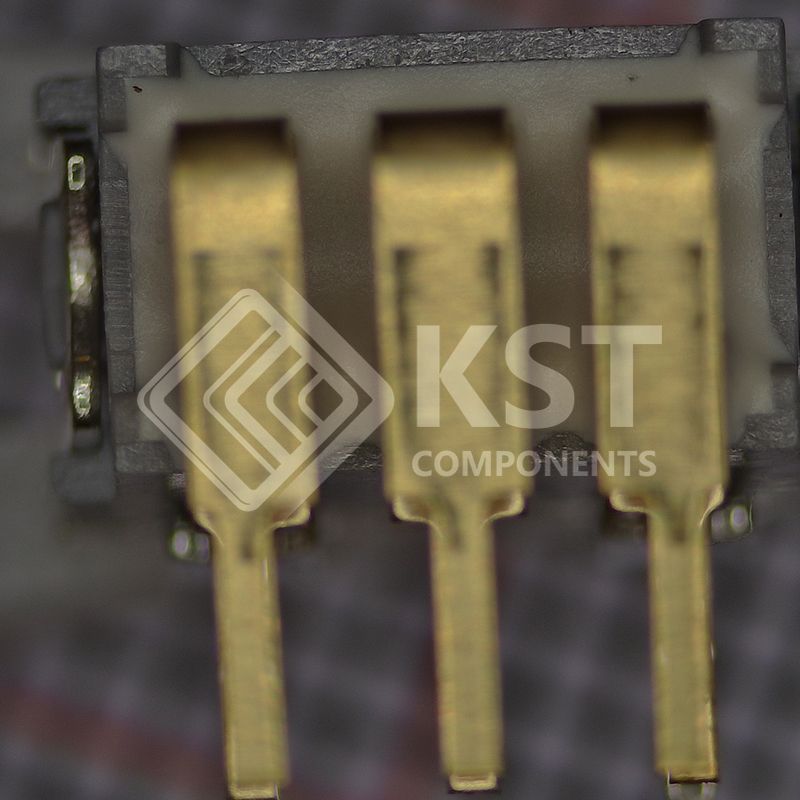

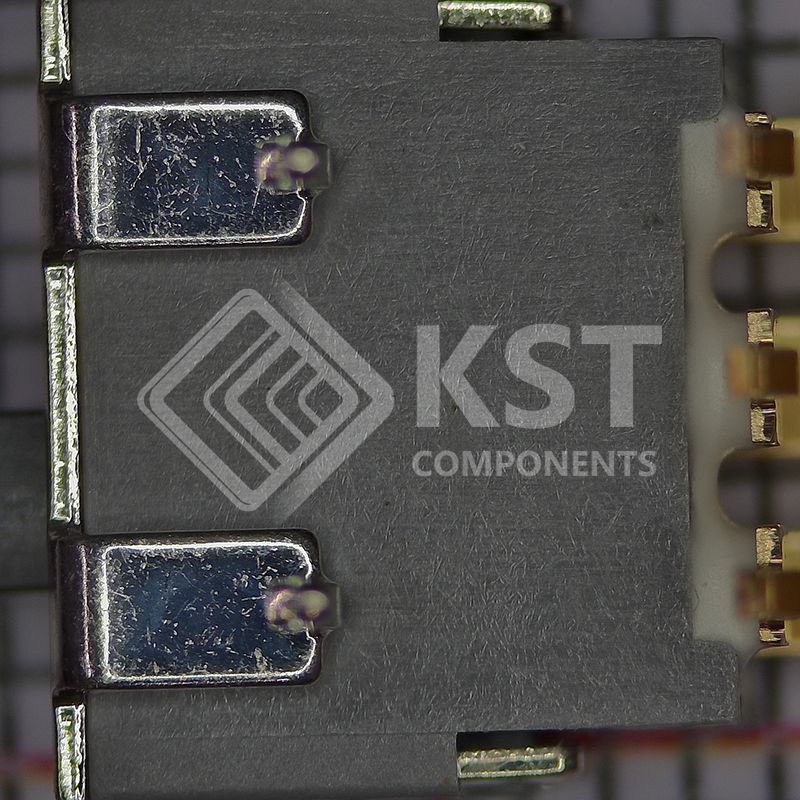

AS2D-5M-10-Z
Part Number:
AS2D-5M-10-Z
Product Classification:
Soldering, Desoldering, Rework Accessories
Manufacturer:
Attabox
Description:
SWITCH SLIDE DPDT 50MA 48V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Switches
Slide Switches
|
|
|
Manufacturer |
Nidec Components Corporation
|
|
|
Series |
AS |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Circuit |
DPDT
|
|
|
Contact Timing |
Non-Shorting (BBM)
|
|
|
Switch Function |
On-On
|
|
|
Current Rating (Amps) |
50mA (AC/DC)
|
|
|
Voltage Rating - AC |
48 V
|
|
|
Voltage Rating - DC |
48 V
|
|
|
Actuator Type |
Standard
|
|
|
Actuator Length |
4.30mm
|
|
|
Contact Material |
-
|
|
|
Contact Finish |
Gold
|
|
|
Mounting Type |
Through Hole, Right Angle
|
|
|
Termination Style |
PC Pin
|
|
|
Features |
-
|
|
|
Operating Temperature |
-20°C ~ 85°C
|
|
|
Actuator Material |
-
|
|
|
Switch Travel |
2.20mm
|
|
|
Mechanical Life |
-
|
|
|
Electrical Life |
10,000 Cycles
|
|
|
Operating Force |
70 ~ 500gf
|
|
|
Base Product Number |
AS2D-5M |
