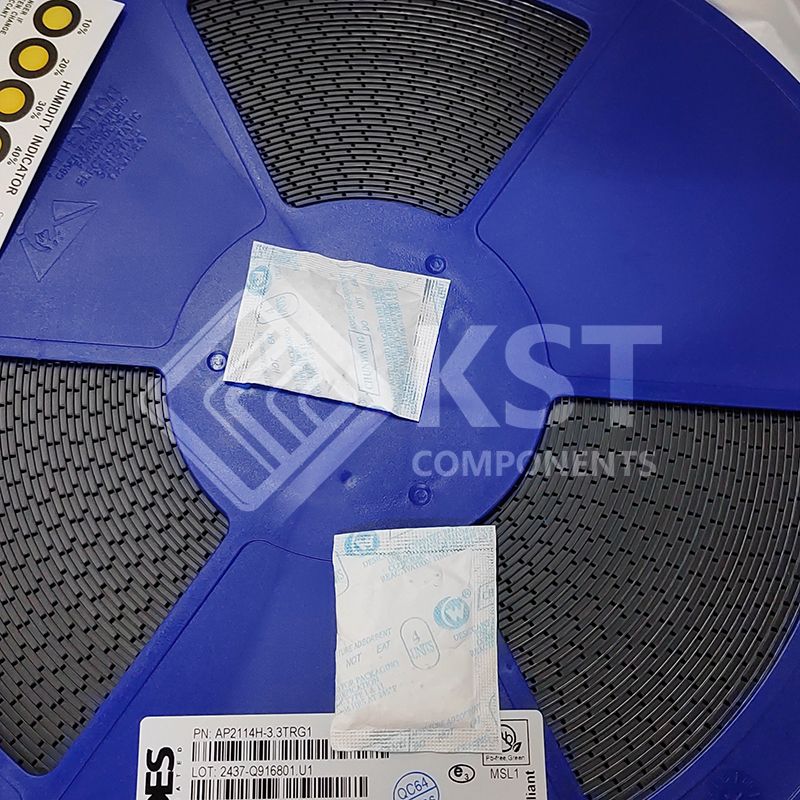

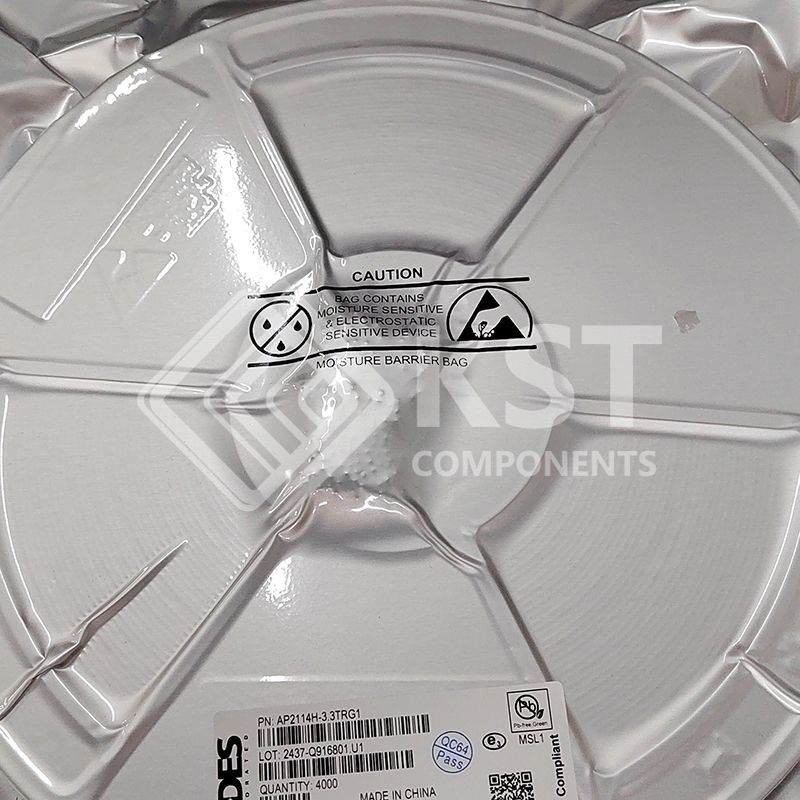

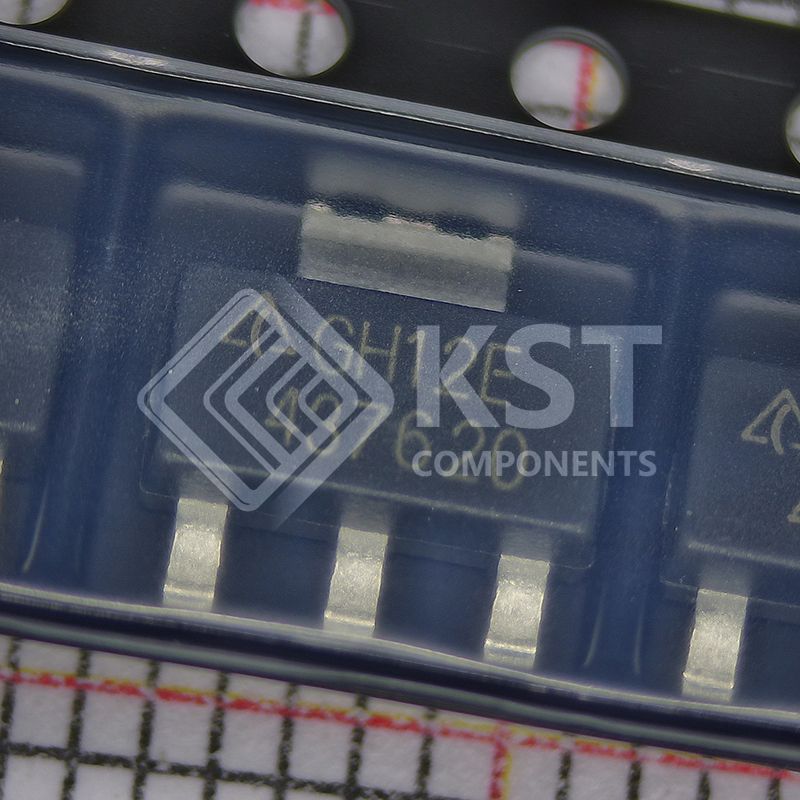

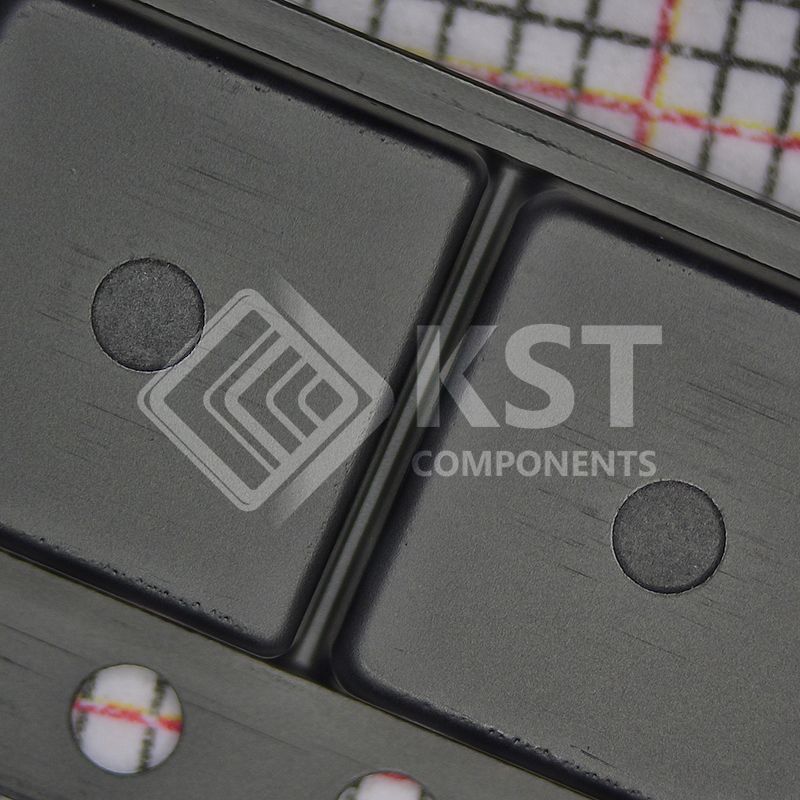

AP2114H-3.3TRG1
Part Number:
AP2114H-3.3TRG1
Product Classification:
Keylock Switches
Manufacturer:
Accuenergy
Description:
IC REG LINEAR 3.3V 1A SOT-223-3
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Diodes Incorporated |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
6V
|
|
|
Voltage - Output (Min/Fixed) |
3.3V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
0.75V @ 1A
|
|
|
Current - Output |
1A |
|
|
Current - Quiescent (Iq) |
90 µA
|
|
|
PSRR |
65dB (100Hz ~ 1kHz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Current, Over Temperature
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
TO-261-4, TO-261AA
|
|
|
Supplier Device Package |
SOT-223-3
|
|
|
Base Product Number |
AP2114 |
