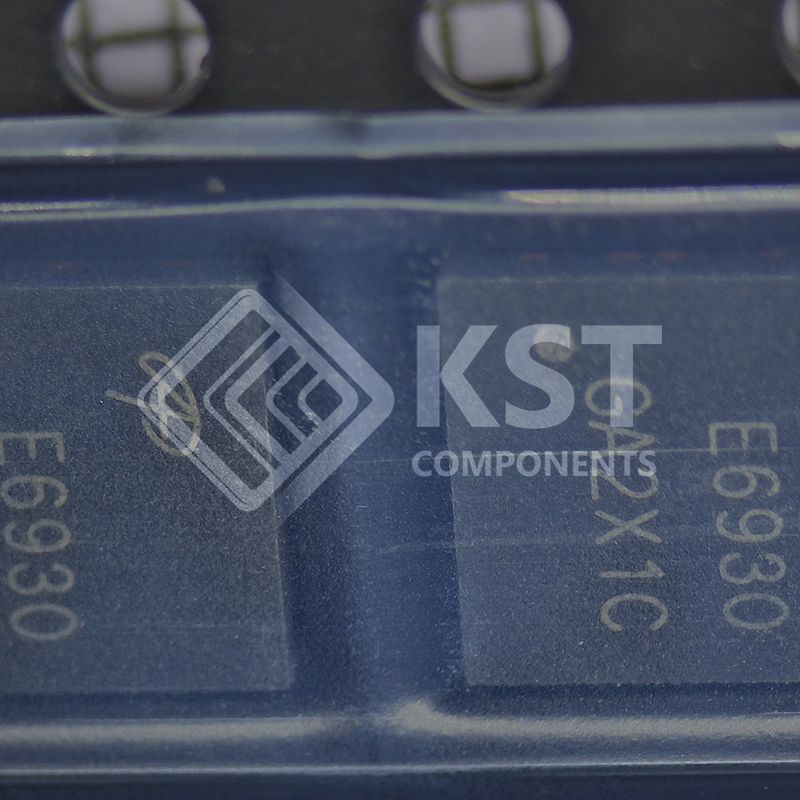

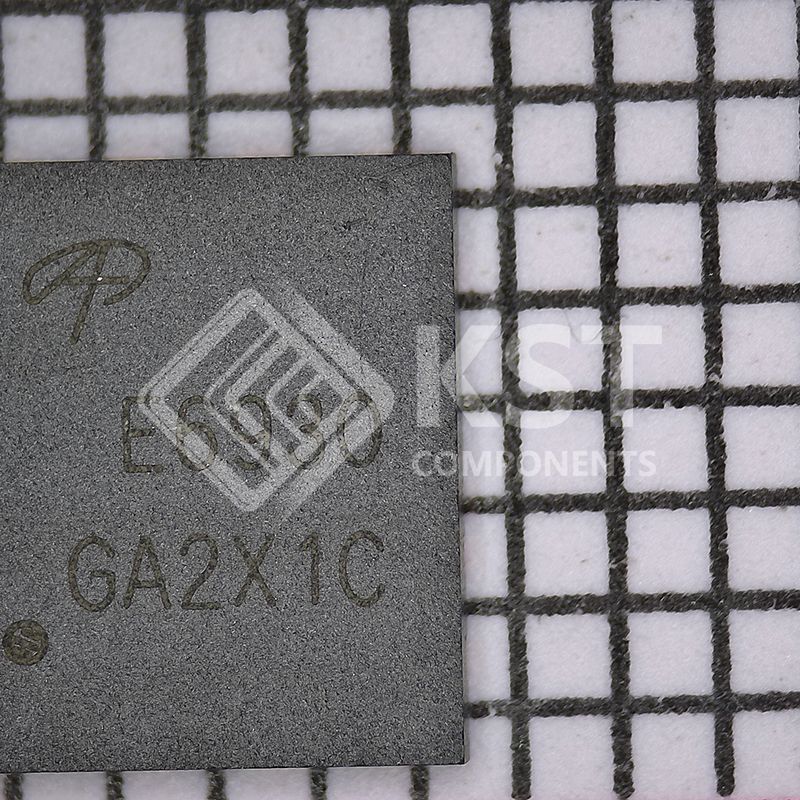

AOE6930
Part Number:
AOE6930
Product Classification:
Solid State Relays (SSR)
Manufacturer:
Alchemy Power Inc.
Description:
Mosfet Array 30V 22A (Tc), 85A (Tc) 24W, 75W Surface Mount 8-DFN (5x6)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Manufacturer |
Alpha & Omega Semiconductor Inc.
|
|
|
Series |
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual) Asymmetrical
|
|
|
FET Feature |
-
|
|
|
Drain to Source Voltage (Vdss) |
30V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
22A (Tc), 85A (Tc)
|
|
|
Rds On (Max) @ Id, Vgs |
4.3mOhm @ 20A, 10V, 0.83mOhm @ 30A, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.1V @ 250µA, 1.9V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
15nC @ 4.5V, 65nC @ 4.5V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1075pF @ 15V, 5560pF @ 15V
|
|
|
Power - Max |
24W, 75W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|

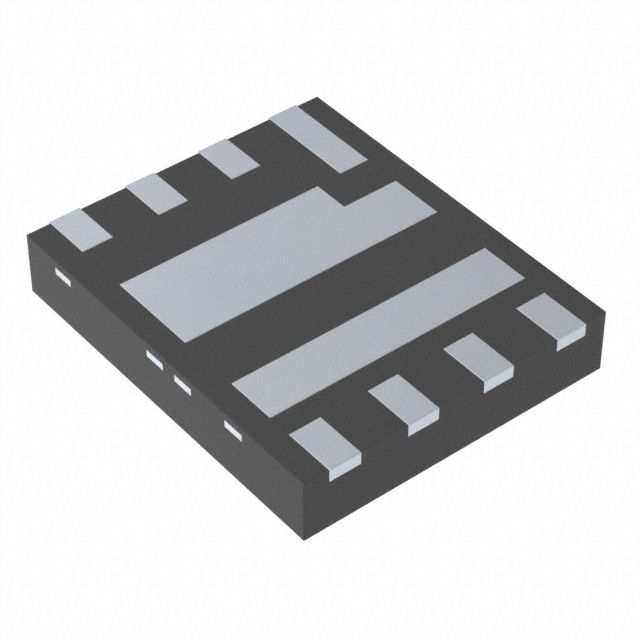

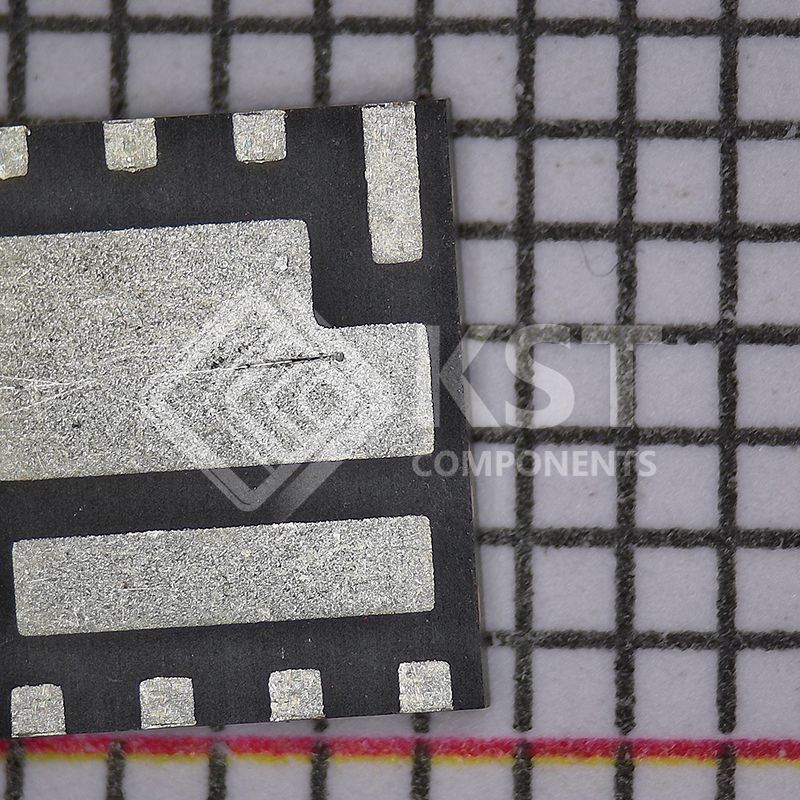

Package / Case |
8-VDFN Exposed Pad
|
|
|
Supplier Device Package |
8-DFN (5x6)
|
|
|
Base Product Number |
