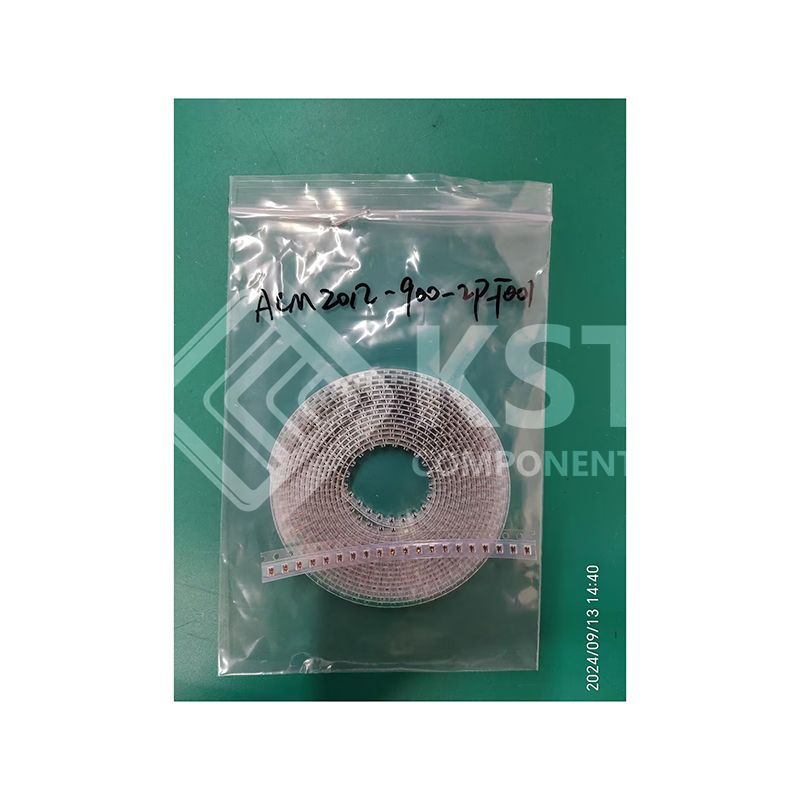

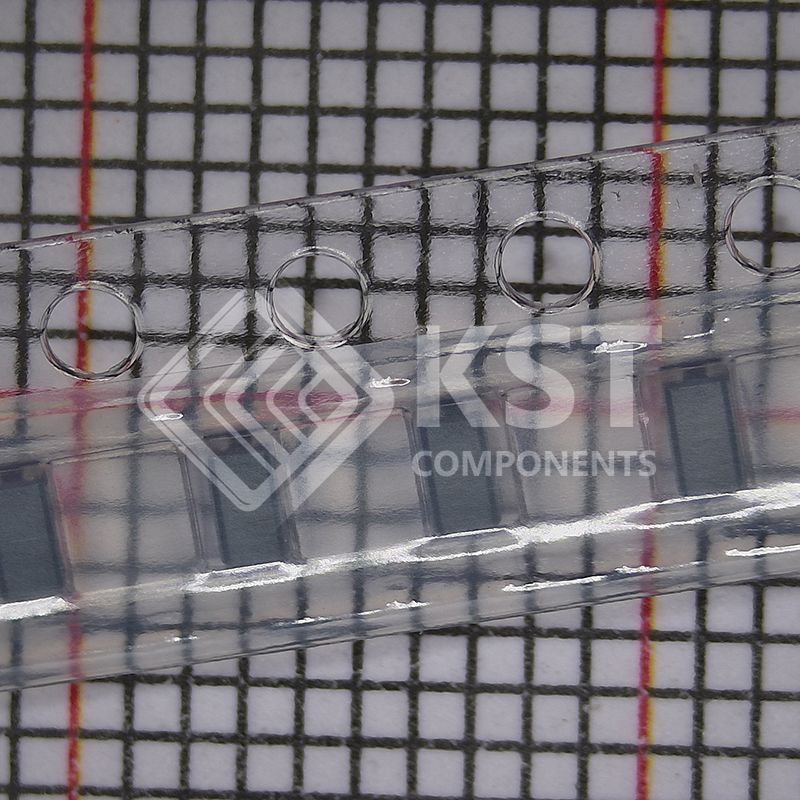

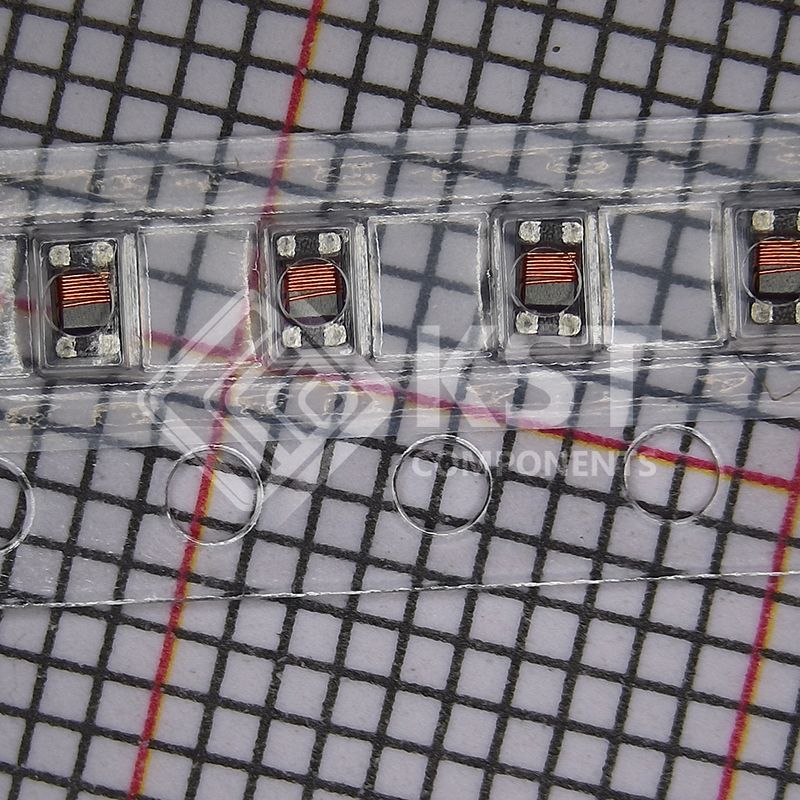

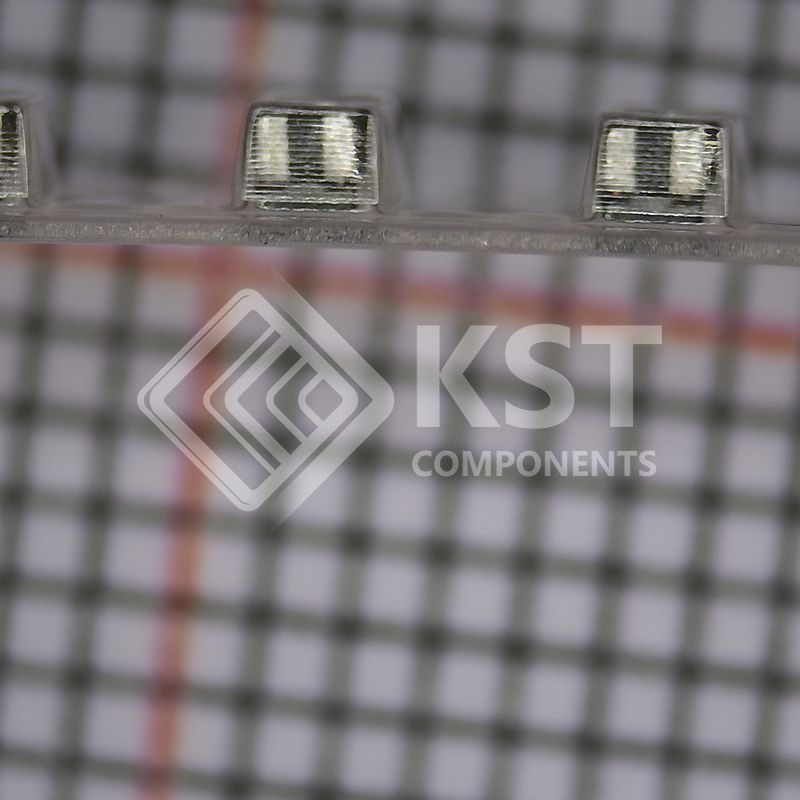

ACM2012-900-2P-T001
Part Number:
ACM2012-900-2P-T001
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
Essentra Components
Description:
CMC 400MA 2LN 90OHM SMD AEC-Q200
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
Common Mode Chokes
|
|
|
Manufacturer |
TDK Corporation
|
|
|
Series |
ACM |
|
|

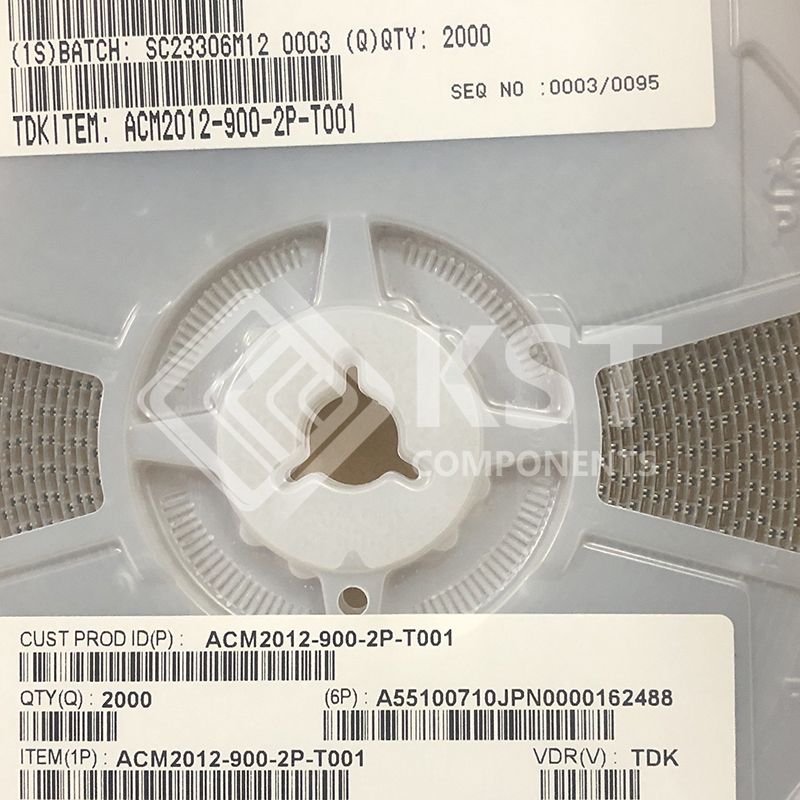

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Filter Type |
Signal Line
|
|
|
Number of Lines |
2
|
|
|
Impedance @ Frequency |
90 Ohms @ 100 MHz
|
|
|
Current Rating (Max) |
400mA
|
|
|
DC Resistance (DCR) (Max) |
190mOhm
|
|
|
Voltage Rating - DC |
50V
|
|
|
Voltage Rating - AC |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Approval Agency |
-
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.079" L x 0.047" W (2.00mm x 1.20mm)
|
|
|
Height (Max) |
0.051" (1.30mm)
|
|
|
Package / Case |
Horizontal, 4 PC Pad
|
