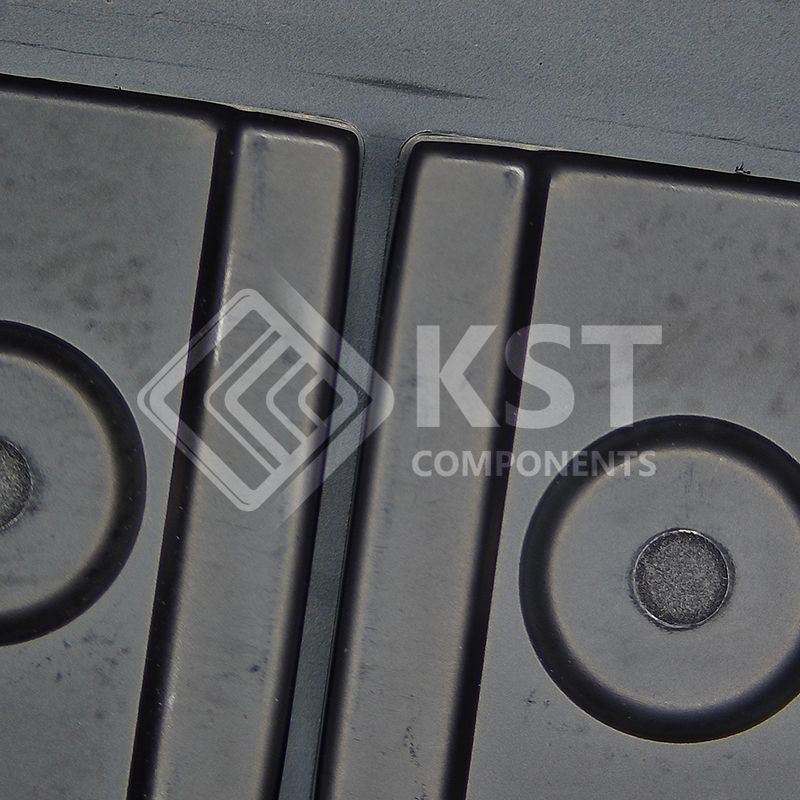

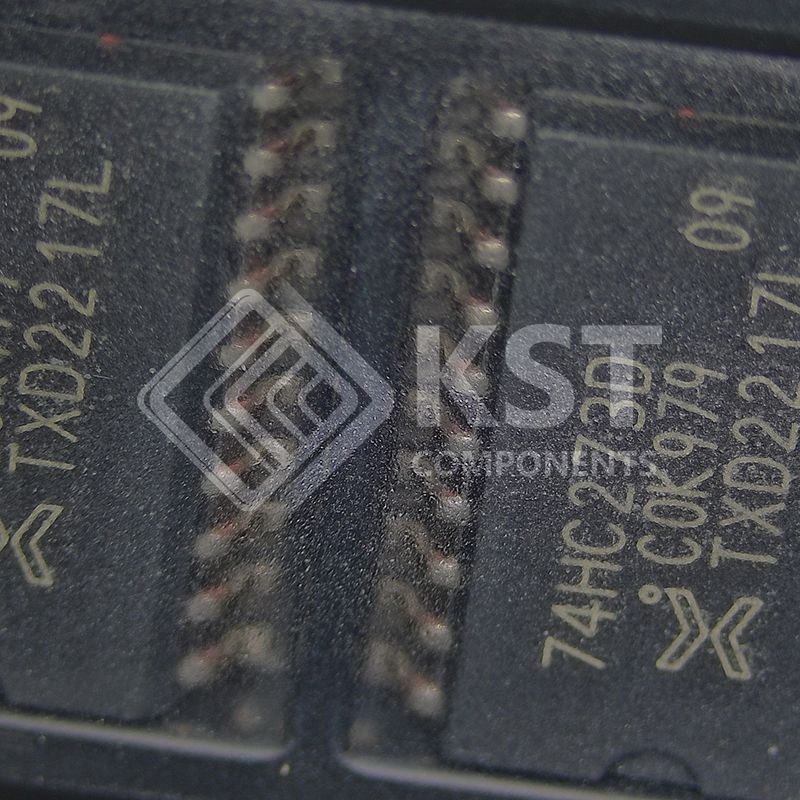

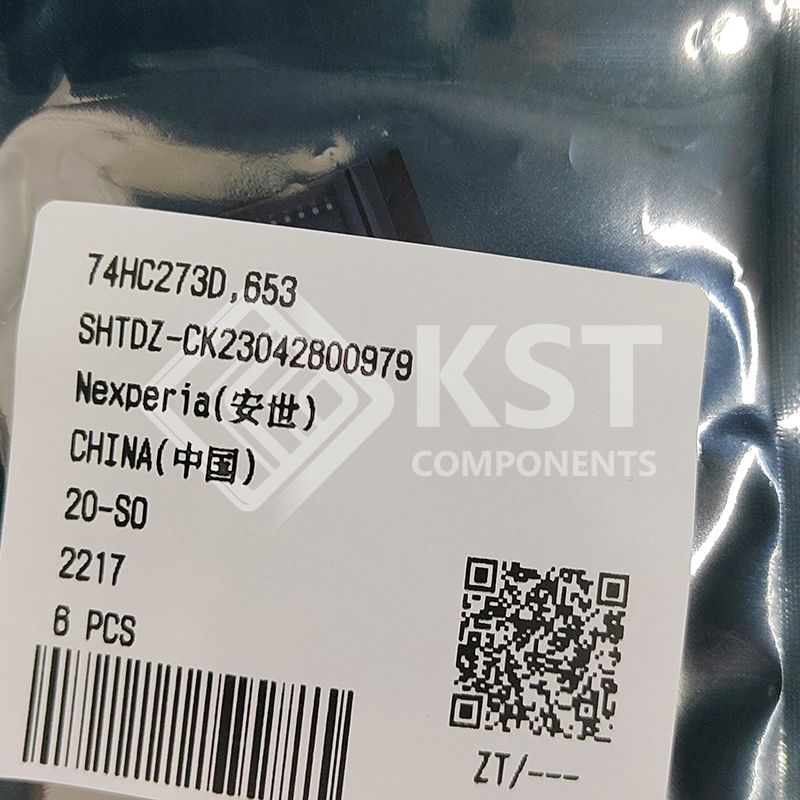

74HC273D,653
Part Number:
74HC273D,653
Product Classification:
Microphones
Manufacturer:
Amphenol Fiber Systems International
Description:
IC FF D-TYPE SNGL 8BIT 20SO
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Flip Flops
|
|
|
Manufacturer |
Nexperia USA Inc.
|
|
|
Series |
74HC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Master Reset
|
|
|
Type |
D-Type
|
|
|
Output Type |
Non-Inverted
|
|
|
Number of Elements |
1
|
|
|
Number of Bits per Element |
8
|
|
|
Clock Frequency |
122 MHz
|
|
|
Max Propagation Delay @ V, Max CL |
26ns @ 6V, 50pF
|
|
|
Trigger Type |
Positive Edge
|
|
|
Current - Output High, Low |
5.2mA, 5.2mA
|
|
|
Voltage - Supply |
2V ~ 6V
|
|
|
Current - Quiescent (Iq) |
8 µA
|
|
|
Input Capacitance |
3.5 pF
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
20-SO
|
|
|
Package / Case |
20-SOIC (0.295", 7.50mm Width)
|
|
|
Base Product Number |
74HC273 |
