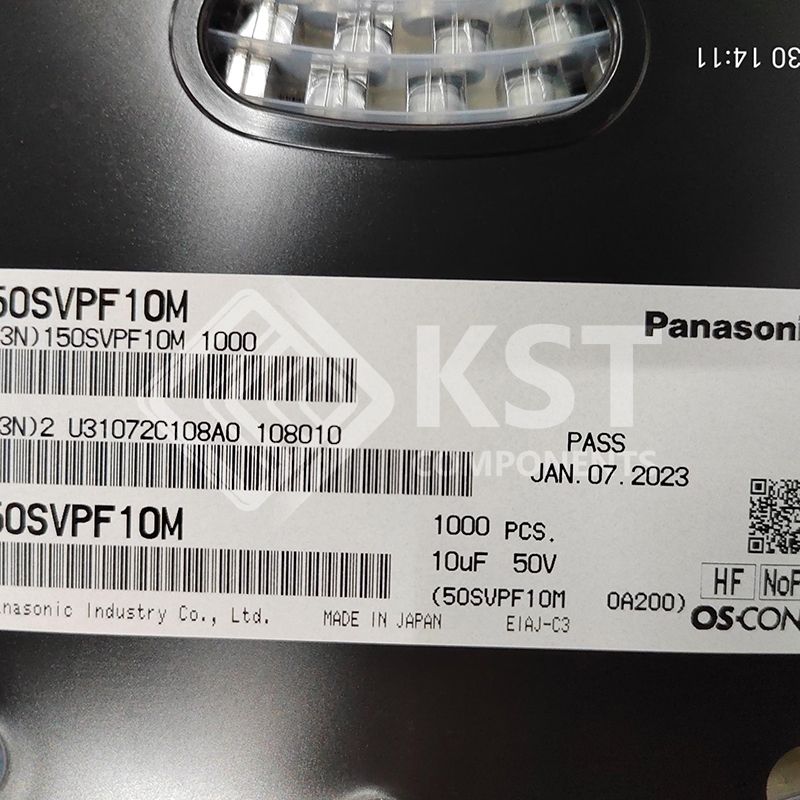

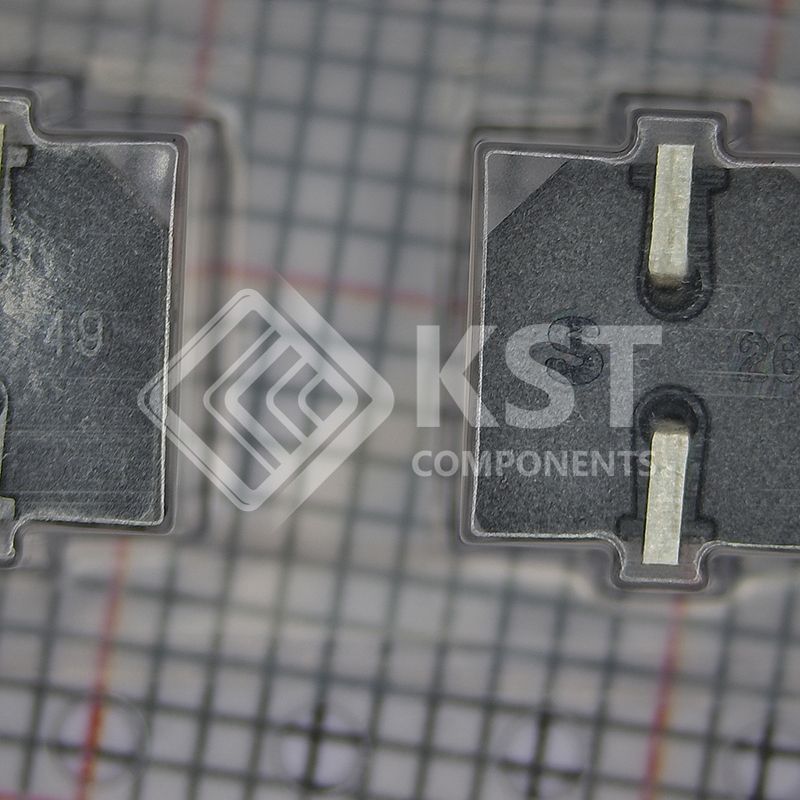

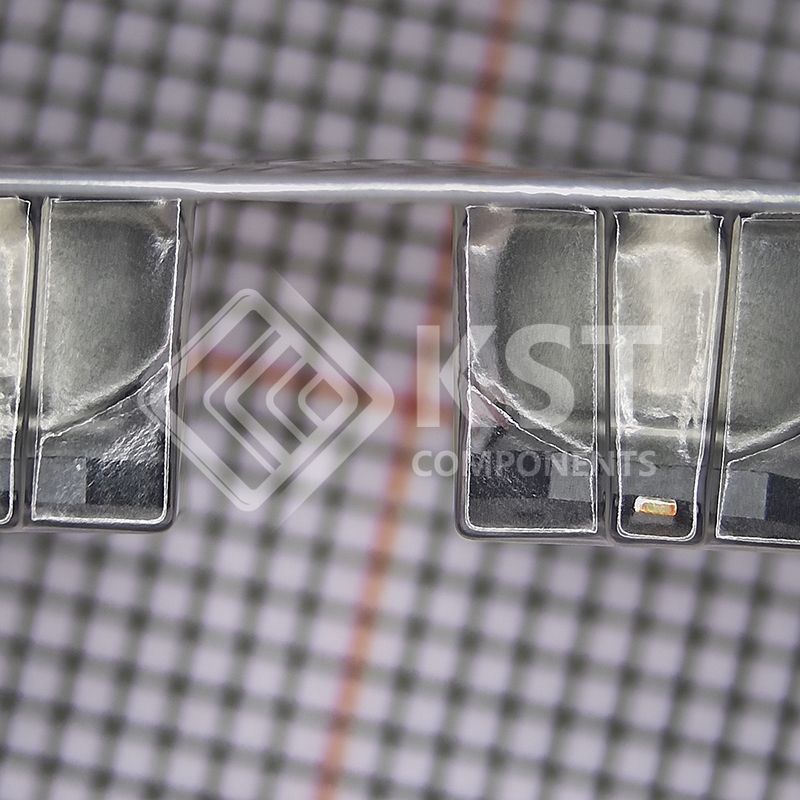

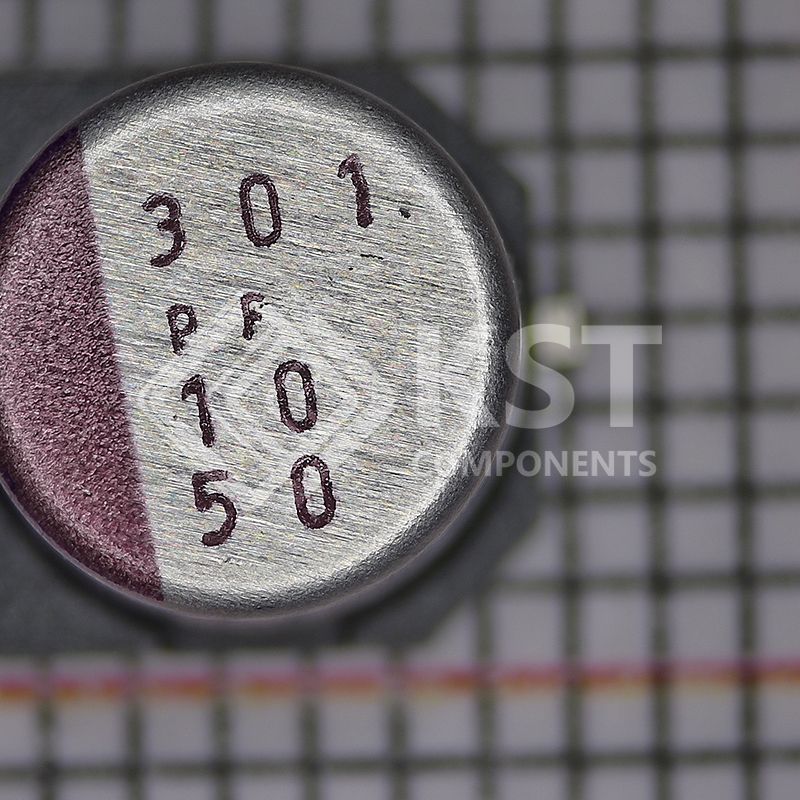

50SVPF10M
Part Number:
50SVPF10M
Product Classification:
LED Drivers
Manufacturer:
Alliance Magnets
Description:
CAP ALUM POLY 10UF 20% 50V SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Capacitors
Aluminum - Polymer Capacitors
|
|
|
Manufacturer |
Panasonic Electronic Components
|
|
|
Series |
OS-CON™, SVPF |
|
|

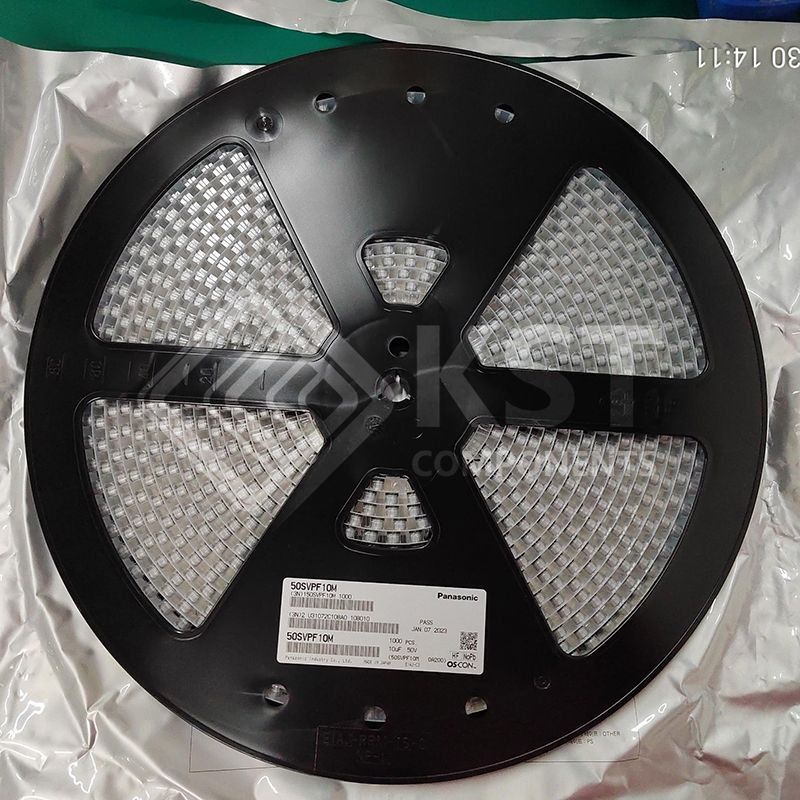

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Polymer
|
|
|
Capacitance |
10 µF
|
|
|
Tolerance |
±20%
|
|
|
Voltage - Rated |
50 V
|
|
|
ESR (Equivalent Series Resistance) |
40mOhm
|
|
|
Lifetime @ Temp. |
5000 Hrs @ 105°C
|
|
|
Operating Temperature |
-55°C ~ 105°C
|
|
|
Ratings |
-
|
|
|
Applications |
General Purpose
|
|
|
Ripple Current @ Low Frequency |
125 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency |
2.5 A @ 100 kHz
|
|
|
Lead Spacing |
-
|
|
|

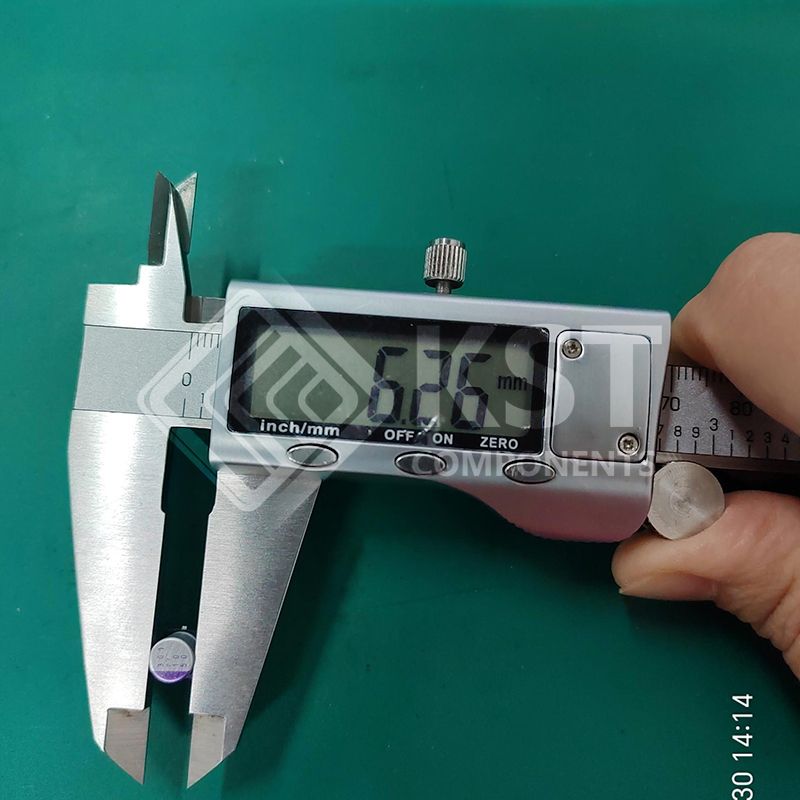

Size / Dimension |
0.248" Dia (6.30mm)
|
|
|

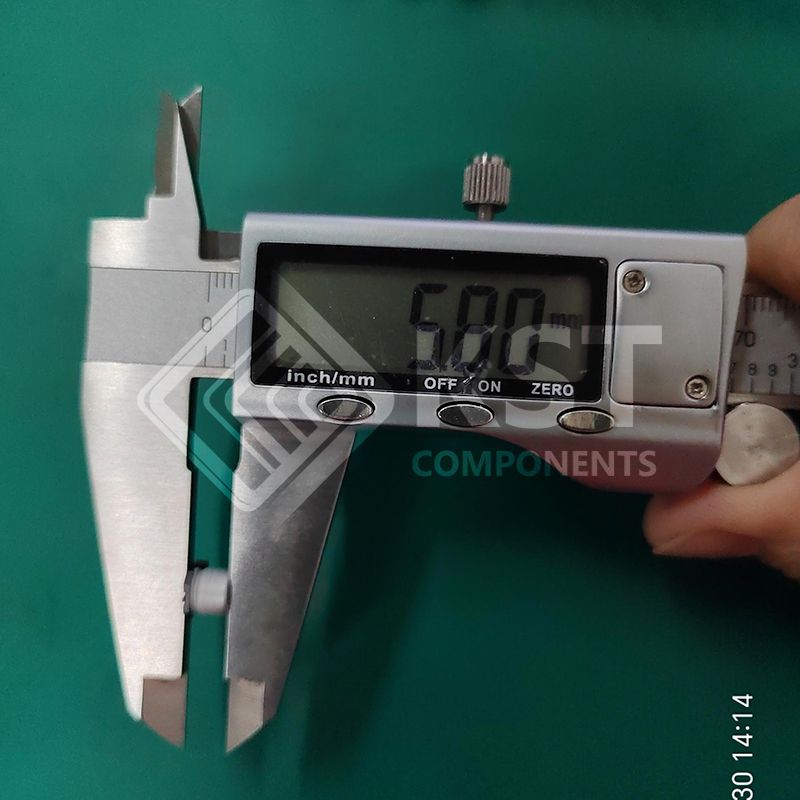

Height - Seated (Max) |
0.236" (6.00mm)
|
|
|
Surface Mount Land Size |
0.260" L x 0.260" W (6.60mm x 6.60mm)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Radial, Can - SMD
|
|
|
Base Product Number |
50SVPF |
