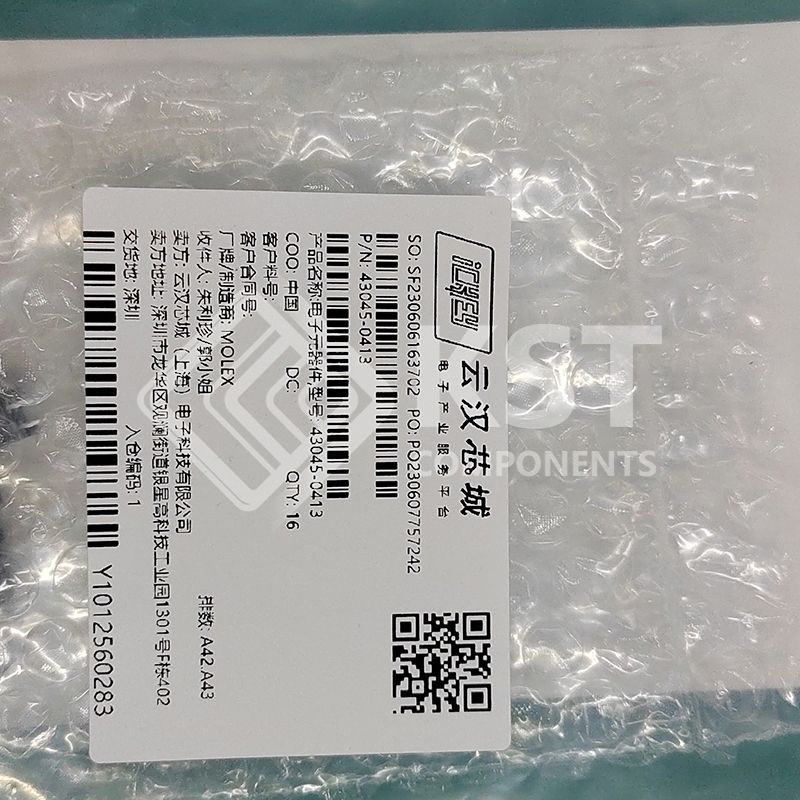

43045-0413
Part Number:
43045-0413
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
A&D Engineering
Description:
CONN HEADER VERT 4POS 3MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Molex |
|
|
Series |
Micro-Fit 3.0 43045 |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.118" (3.00mm) |
|
|
Number of Positions |
4 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.118" (3.00mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole |
|
|
Termination |
Kinked Pin, Solder
|
|
|
Fastening Type |
Locking Ramp
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
0.125" (3.18mm)
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.390" (9.91mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Contact Finish Thickness - Mating |
15.0µin (0.38µm)
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Liquid Crystal Polymer (LCP), Glass Filled
|
|
|
Features |
Board Guide
|
|
|
Operating Temperature |
-
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
8A
|
|
|
Voltage Rating |
600V
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
100.0µin (2.54µm)
|
|
|
Applications |
Automotive, General Purpose, Industrial, Medical, Telecommunications
|
|
|
Base Product Number |
043045 |
