2711P-T7C21D8S
Part Number:
2711P-T7C21D8S
Product Classification:
Mixed Technology
Manufacturer:
TE Connectivity
Description:

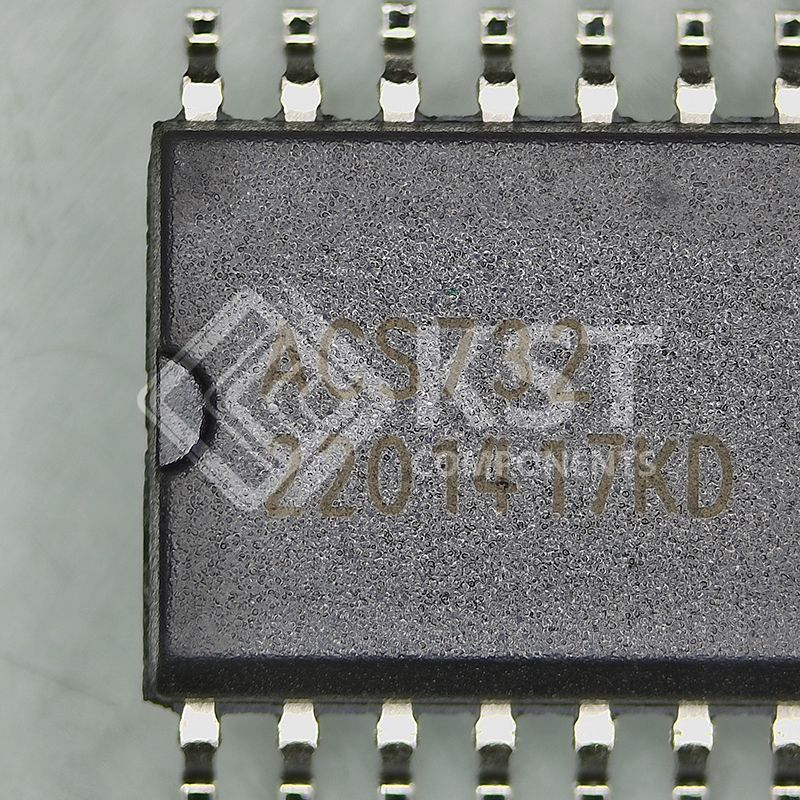

SENSOR CURRENT HALL 40A 16SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Sensors, Transducers
Current Sensors
|
|
|
Mfr |
Allegro MicroSystems |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
For Measuring |
AC/DC
|
|
|
Sensor Type |
Hall Effect, Differential |
|
|
Current - Sensing |
40A |
|
|
Number of Channels |
1
|
|
|
Output |
Ratiometric, Voltage
|
|
|
Sensitivity |
50mV/A
|
|
|
Frequency |
1MHz
|
|
|
Linearity |
±0.5%
|
|
|
Accuracy |
±1.7%
|
|
|
Voltage - Supply |
4.75V ~ 5.25V
|
|
|
Response Time |
200ns
|
|
|
Current - Supply (Max) |
35mA
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Polarization |
Bidirectional
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |

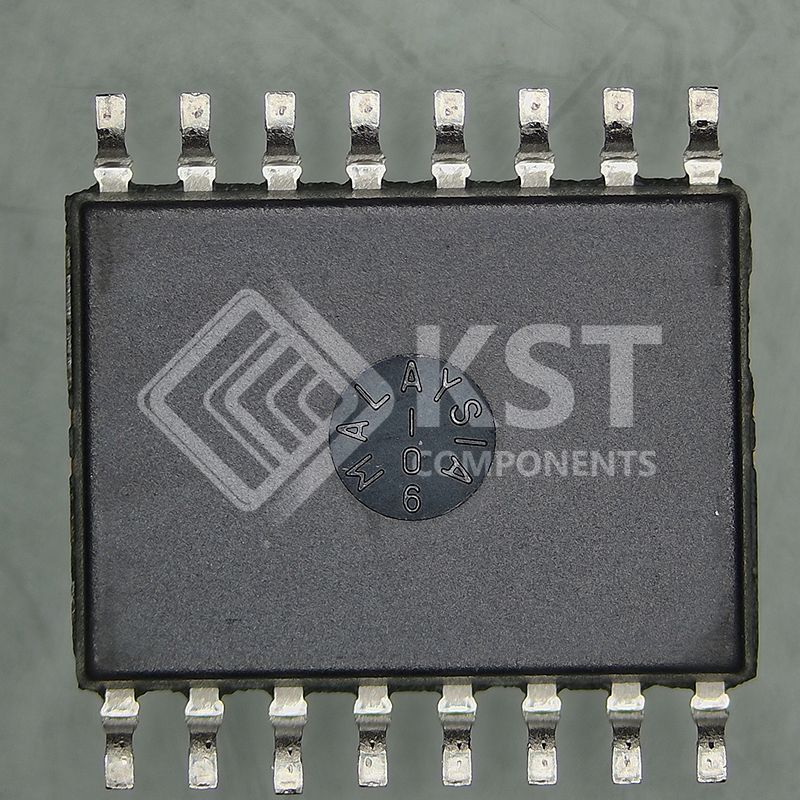

16-SOIC (0.295", 7.50mm Width)
|
|
|
Supplier Device Package |
16-SOIC
|
|
|
Base Product Number |
ACS732 |
