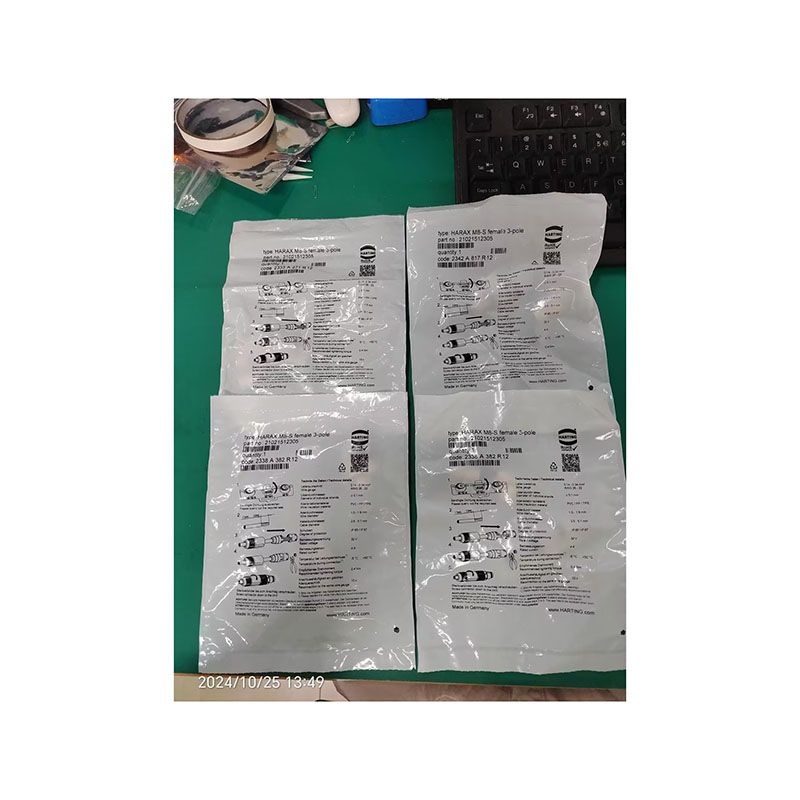

21021512305
Part Number:
21021512305
Product Classification:
LED Lighting Kits
Manufacturer:
AWID
Description:
CONN RCPT FMALE 3POS GOLD IDC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Circular Connectors
Circular Connector Assemblies
|
|
|
Mfr |
HARTING |
|
|
Series |
Harax® M8-S |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle, Female Sockets |
|
|
Number of Positions |
3
|
|
|
Shell Size - Insert |
M8-3
|
|
|
Shell Size, MIL |
-
|
|
|
Mounting Type |
Free Hanging (In-Line)
|
|
|
Mounting Feature |
-
|
|
|
Termination |
IDC
|
|
|
Fastening Type |
Threaded
|
|
|
Orientation |
A
|
|
|
Primary Material |
Metal
|
|
|
Shell Material |
Zinc Die Cast
|
|
|
Shell Finish |
-
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Color |
Black, Silver
|
|
|
Ingress Protection |
IP67 - Dust Tight, Waterproof
|
|
|
Material Flammability Rating |
-
|
|
|
Features |
Backshell, Coupling Nut
|
|
|
Shielding |
Unshielded |
|
|
Current Rating (Amps) |
4A
|
|
|
Voltage Rating |
32V
|
|
|
Cable Opening |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Backshell Material, Plating |
Zinc Die Cast
|
|
|
Contact Material |
Copper Alloy
|
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Insert Material |
Polyamide (PA), Nylon
|
|
|
Applications |
-
|
