2034560003
Part Number:
2034560003
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
A&D Engineering
Description:

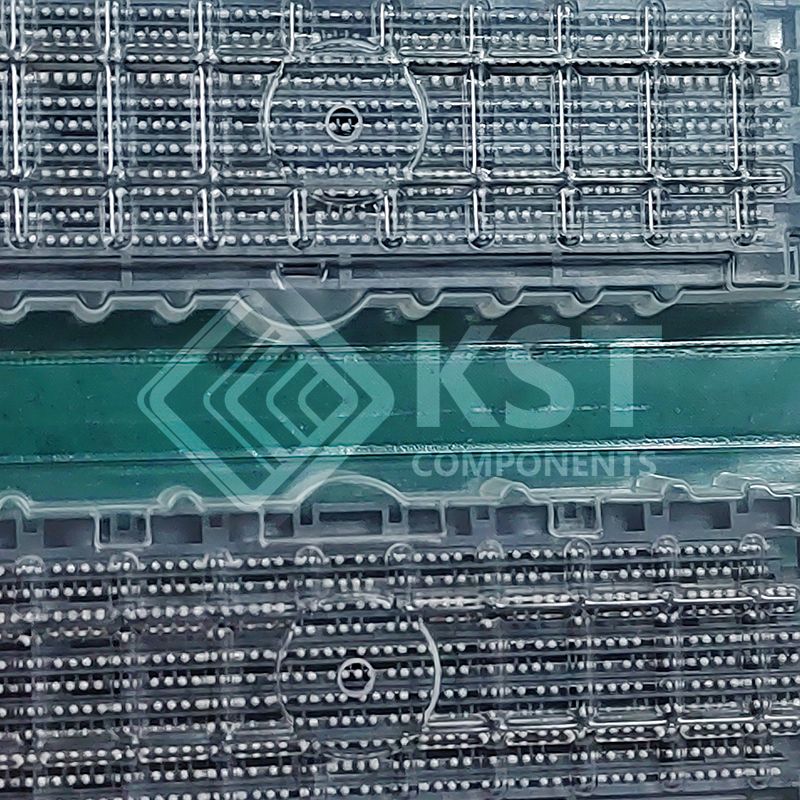

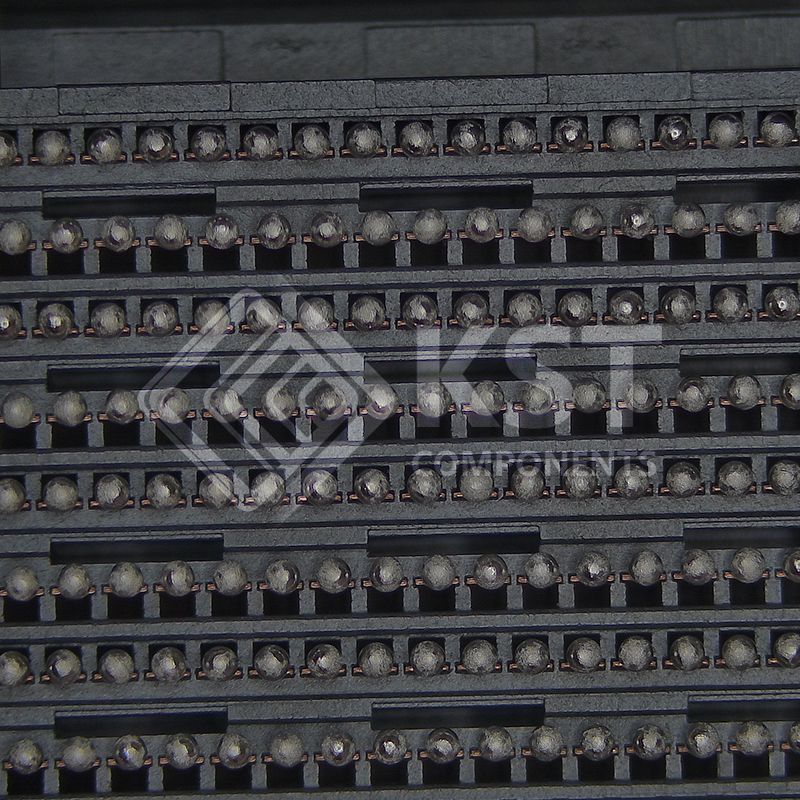

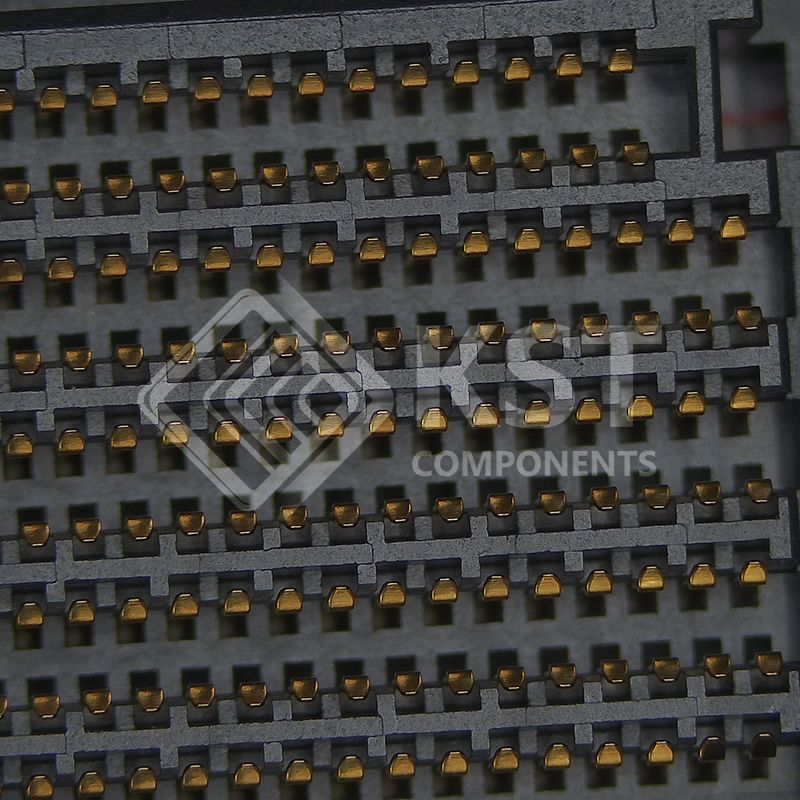

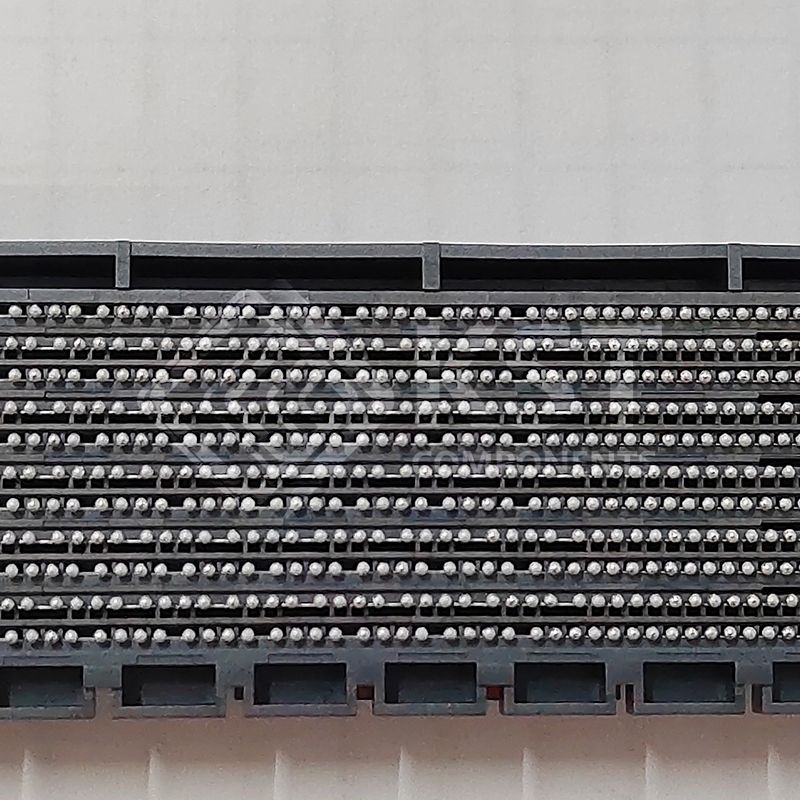

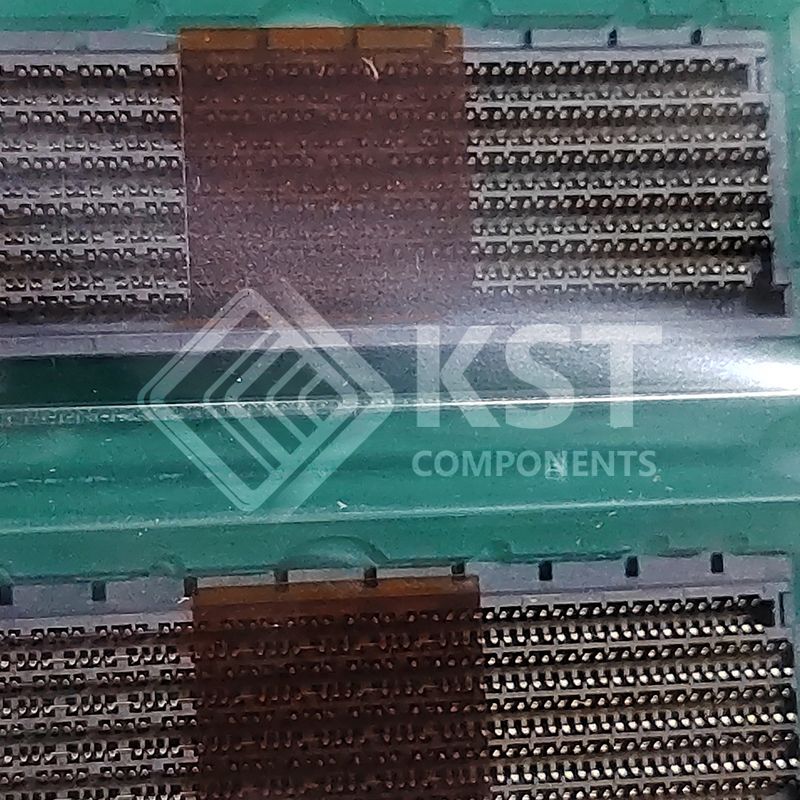

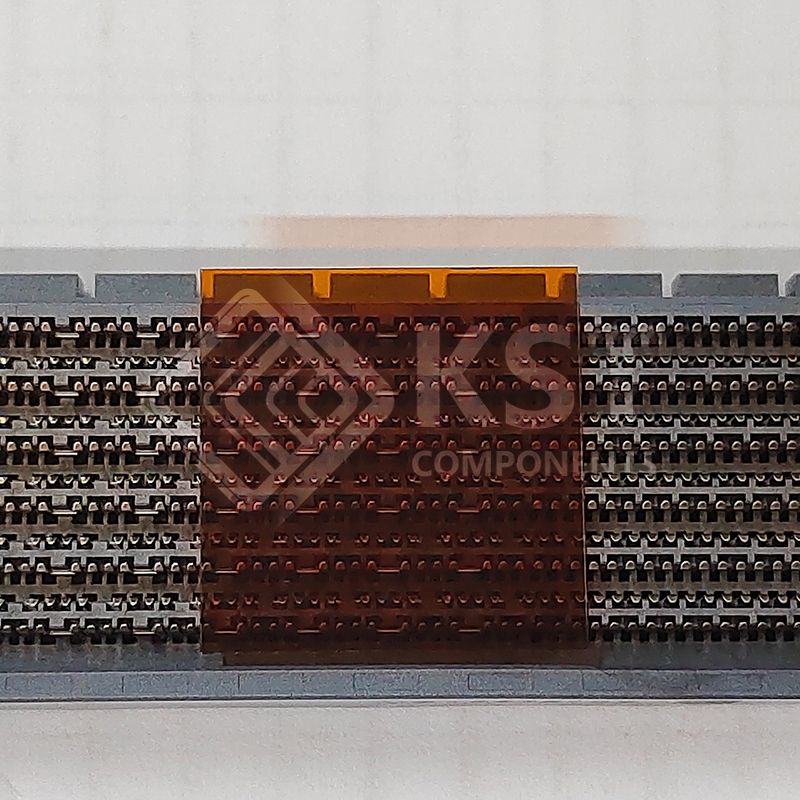

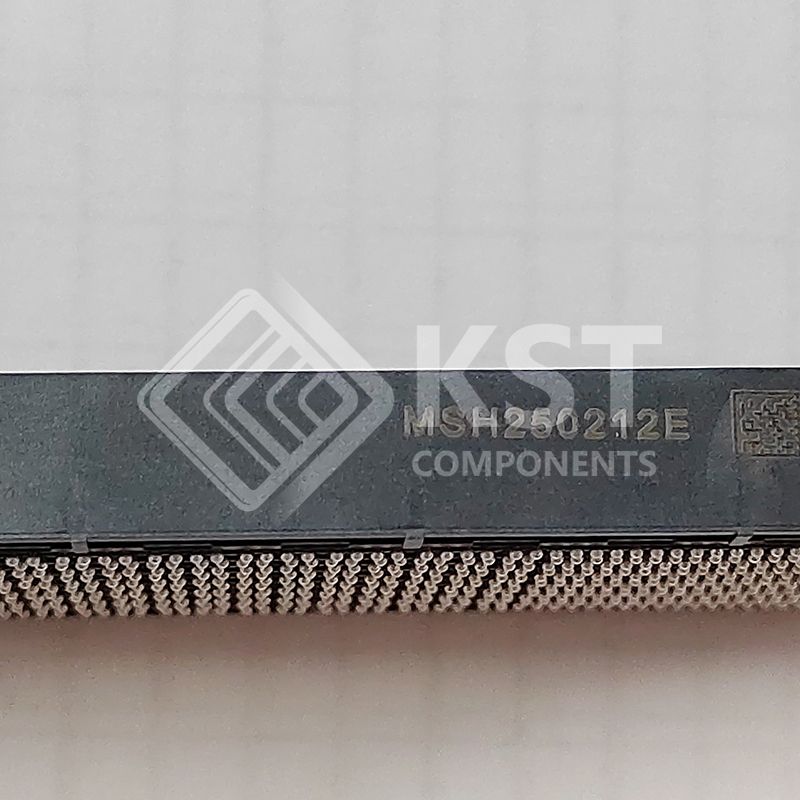

CONN SELF-MATE 699POS SMD GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Molex
|
|
|
Series |
Mirror Mezz 203456 |
|
|
Packaging |

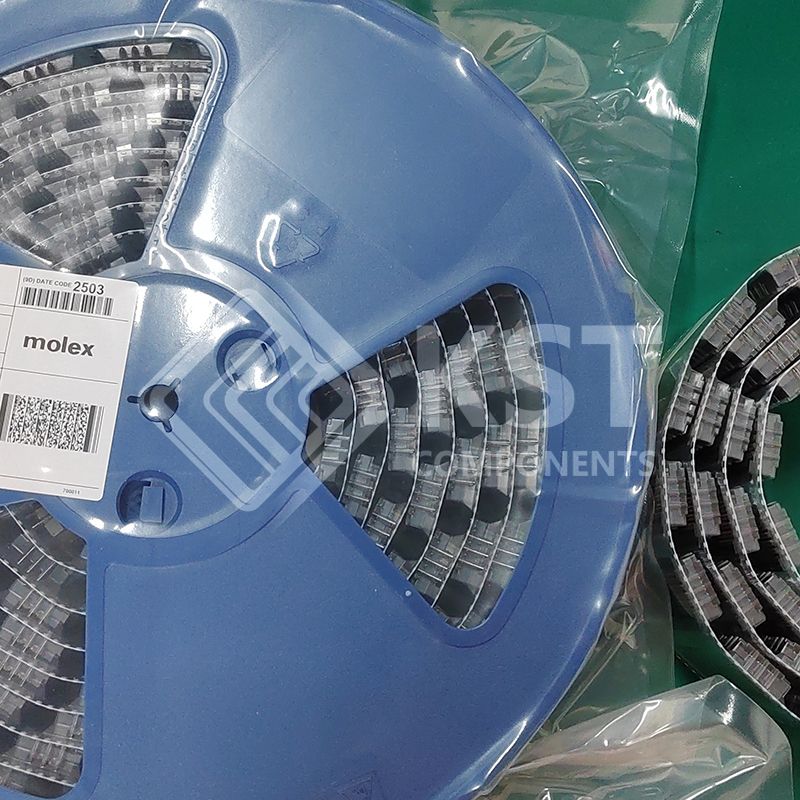

Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Self Mating, Non-Gendered, Hermaphroditic
|
|
|
Number of Positions |
699
|
|
|
Pitch |
-
|
|
|
Number of Rows |
11
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Pick and Place
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
30.0µin (0.76µm)
|
|
|
Mated Stacking Heights |
8mm, 11mm
|
|
|
Height Above Board |
0.301" (7.65mm)
|
|
|
Base Product Number |
203456 |
