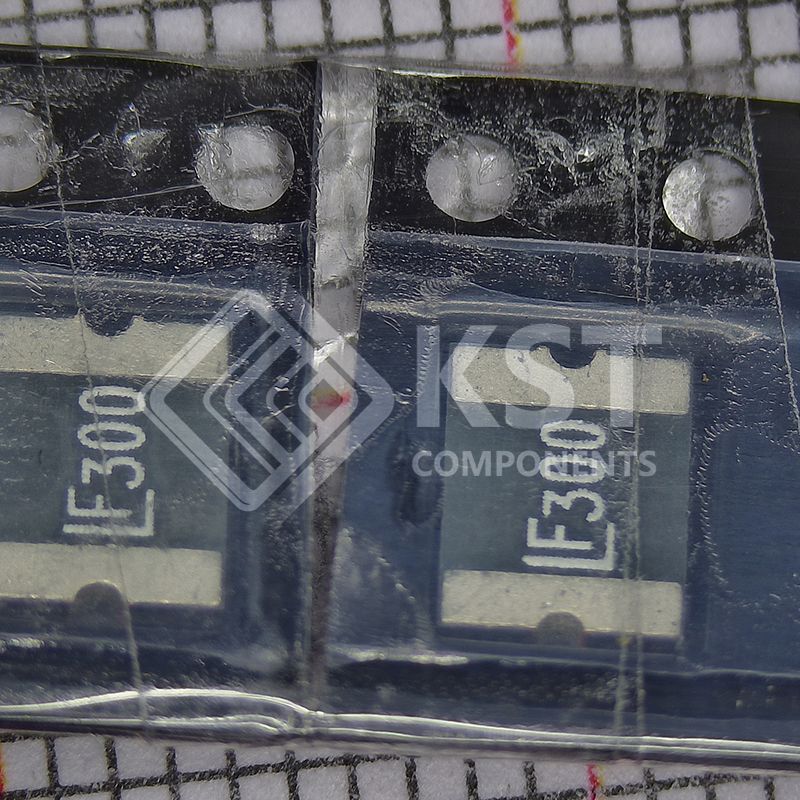

2016L300 16MR
Part Number:
2016L300 16MR
Product Classification:
Fan Accessories
Manufacturer:
AEM Aerospace and Defense
Description:
PTC RESET FUSE 16V 3A 2016
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer |
Littelfuse Inc.
|
|
|
Series |
POLY-FUSE®, 2016L |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Polymeric
|
|
|
Voltage - Max |
16V
|
|
|
Current - Hold (Ih) (Max) |
3 A
|
|
|
Current - Trip (It) |
5 A
|
|
|
Current - Max |
40 A
|
|
|
Time to Trip |
10 s
|
|
|
Resistance - Initial (Ri) (Min) |
15 mOhms
|
|
|
Resistance - Post Trip (R1) (Max) |
48 mOhms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
2016 (5041 Metric), Concave
|
|
|
Size / Dimension |
0.200" L x 0.160" W (5.08mm x 4.07mm)
|
|
|
Height - Seated (Max) |
-
|
|
|
Thickness (Max) |
0.045" (1.15mm)
|
|
|
Lead Spacing |
-
|
|
|
Approval Agency |
-
|
