20021311-00006T4LF
Part Number:
20021311-00006T4LF
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
AES-USA
Description:

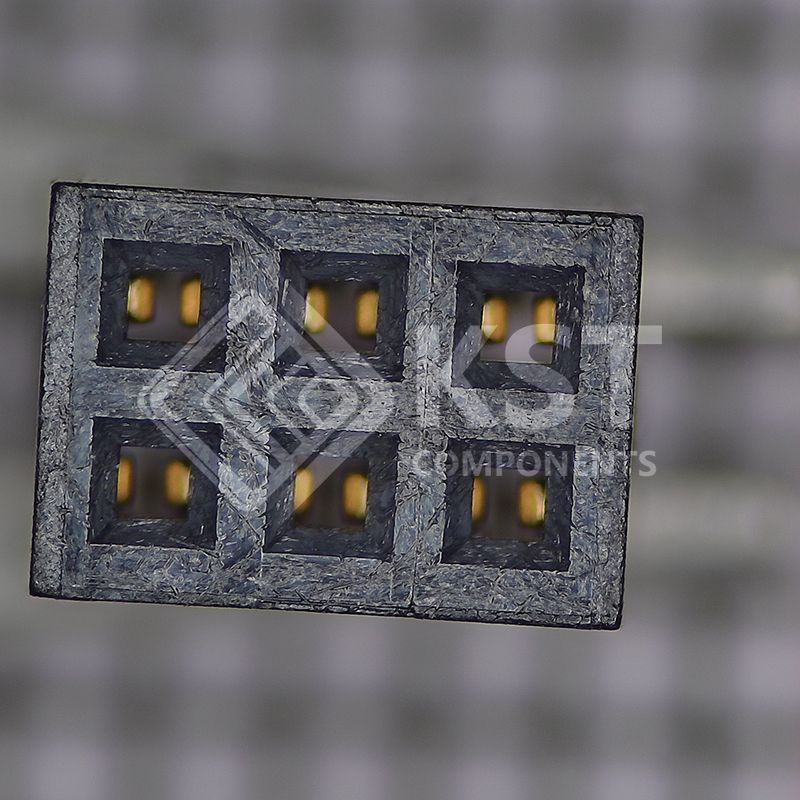

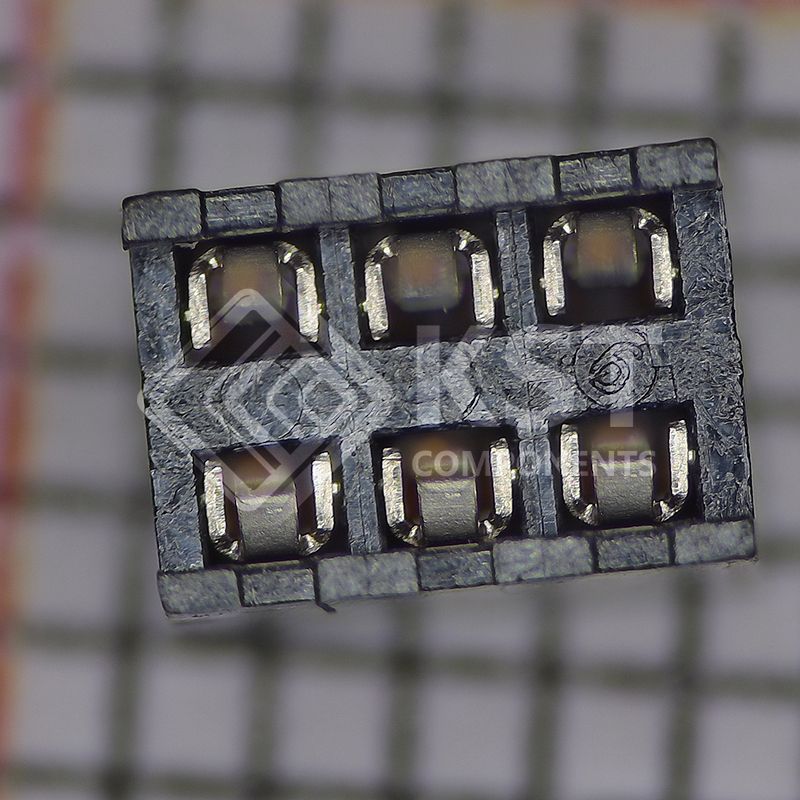

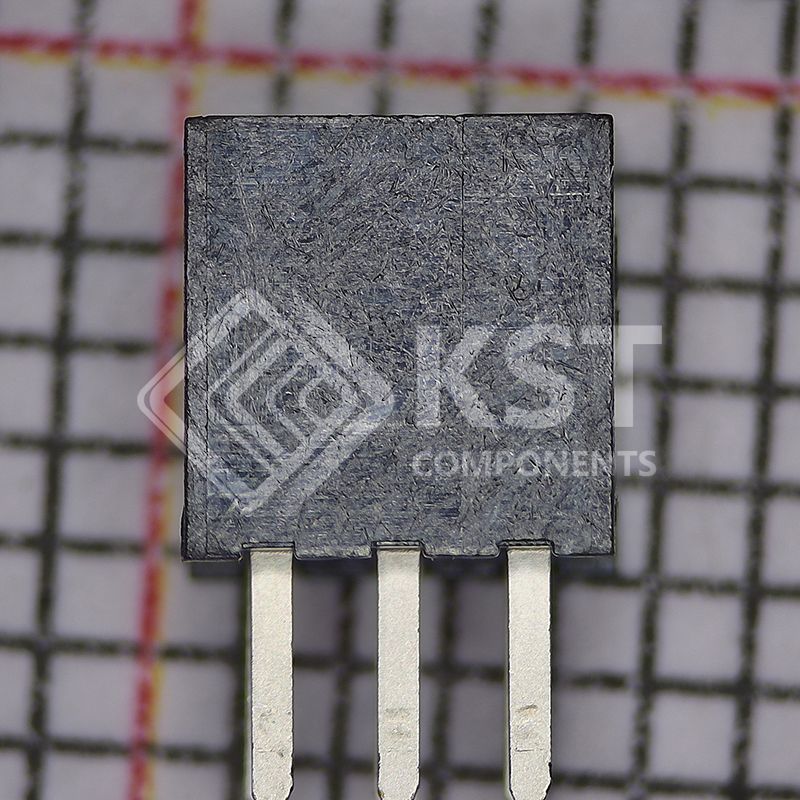

CONN RCPT 6POS 0.05 GOLD PCB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr |
Amphenol ICC (FCI) |
|
|
Series |
Minitek127® 1.27mm |
|
|

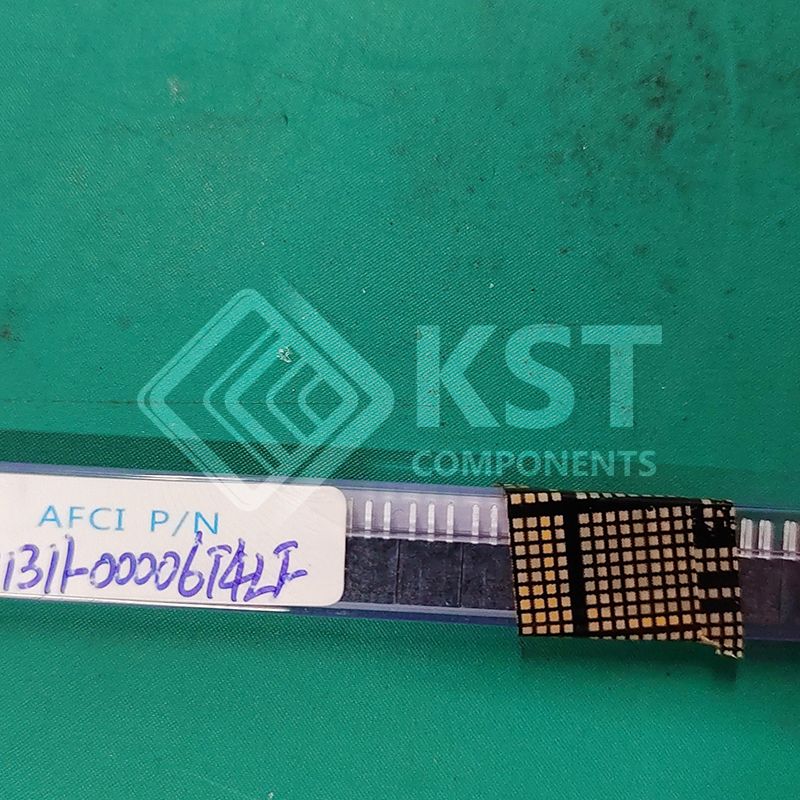

Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle |
|
|
Contact Type |
Female Socket
|
|
|
Style |
Board to Board
|
|
|
Number of Positions |
6 |
|
|
Number of Positions Loaded |
All
|
|
|
Pitch - Mating |
0.050" (1.27mm) |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.050" (1.27mm)
|
|
|
Mounting Type |
Through Hole
|
|
|
Termination |
Solder |
|
|
Fastening Type |
Push-Pull
|
|
|
Contact Finish - Mating |
Gold |
|
|
Contact Finish Thickness - Mating |
10.0µin (0.25µm)
|
|
|
Insulation Color |
Black
|
|
|
Insulation Height |
0.173" (4.40mm)
|
|
|
Contact Length - Post |
0.094" (2.40mm)
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Contact Finish - Post |
Tin
|
|
|
Mated Stacking Heights |
-
|
|
|
Ingress Protection |
-
|
|
|
Features |
-
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Applications |
General Purpose, Industrial, Telecommunications
|
|
|
Insulation Material |
Plastic
|
|
|
Contact Shape |
Square
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish Thickness - Post |
100.0µin (2.54µm)
|
|
|
Base Product Number |
20021311 |
