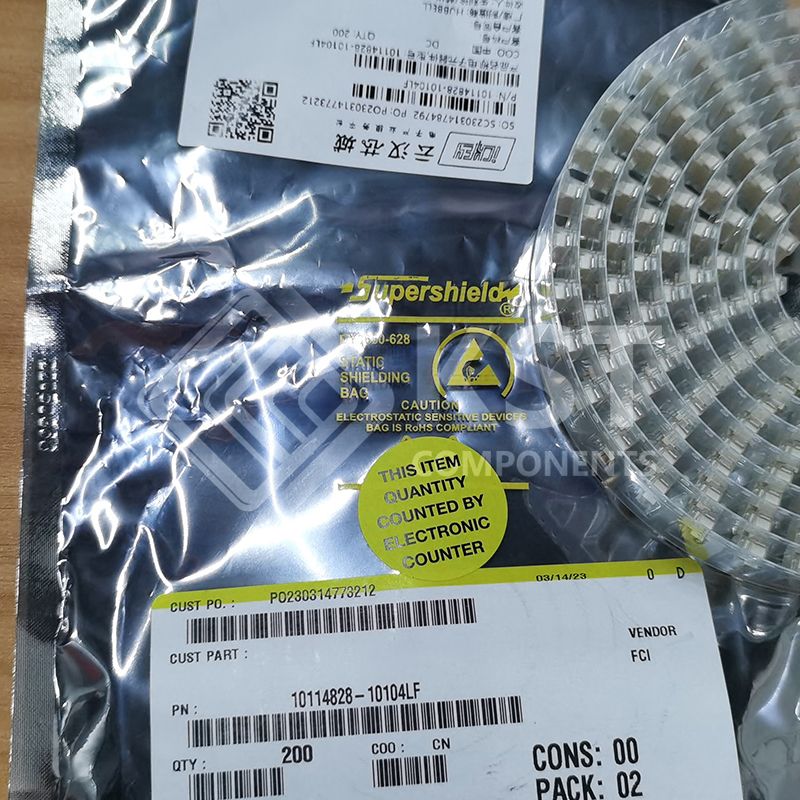

10114828-10104lf
Part Number:
10114828-10104lf
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
AES-USA
Description:
CONN HEADER SMD 4POS 1.25MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Amphenol ICC (FCI) |
|
|
Series |
10114828 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.049" (1.25mm) |
|
|
Number of Positions |
4 |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 3 Wall
|
|
|
Mounting Type |
Surface Mount |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Detent Lock
|
|
|
Contact Length - Mating |
0.089" (2.25mm)
|
|
|
Contact Length - Post |
-
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.185" (4.70mm)
|
|
|
Contact Shape |
Rectangular
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Copper Alloy
|
|
|
Insulation Material |
Liquid Crystal Polymer (LCP)
|
|
|
Features |
Solder Retention
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Natural
|
|
|
Current Rating (Amps) |
1A
|
|
|
Voltage Rating |
125V
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
-
|
|
|
Applications |
-
|
|
|
Base Product Number |
10114828 |
