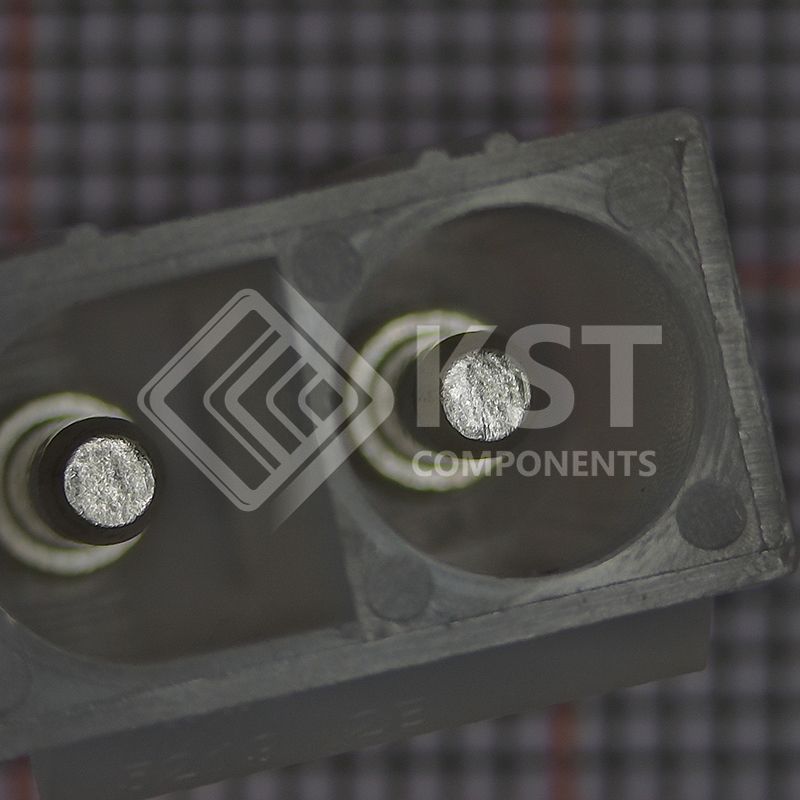

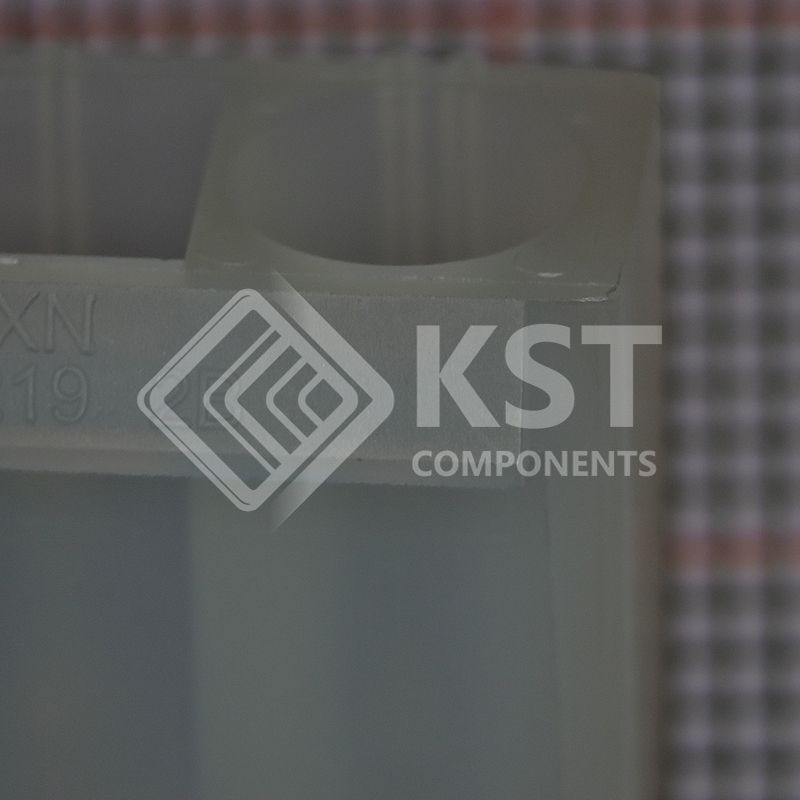

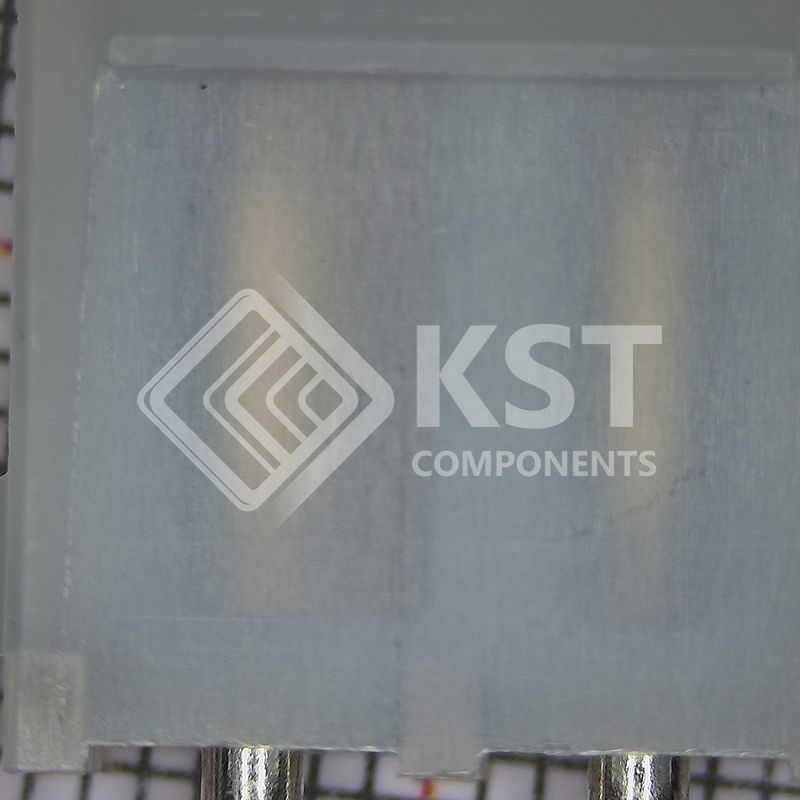

0015311026
Part Number:
0015311026
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
A&D Engineering
Description:
CONN HEADER VERT 2POS 6.71MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Molex |
|
|
Series |
5219 |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.264" (6.71mm) |
|
|
Number of Positions |
2 |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Locking Ramp
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
0.138" (3.50mm)
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.591" (15.00mm)
|
|
|
Contact Shape |
Circular
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
39.4µin (1.00µm)
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Polyamide (PA66), Nylon 6/6
|
|
|
Features |
Board Lock
|
|
|
Operating Temperature |
-
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-2
|
|
|
Insulation Color |
Natural
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
39.4µin (1.00µm)
|
|
|
Applications |
General Purpose, Telecommunications
|
|
|
Base Product Number |
001531 |
